Heated Seat Control Module Replacement - Front
Heated Seat Control Module Replacement - Front
| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the front seat. Refer to Seat Replacement - Front Bucket . |
|

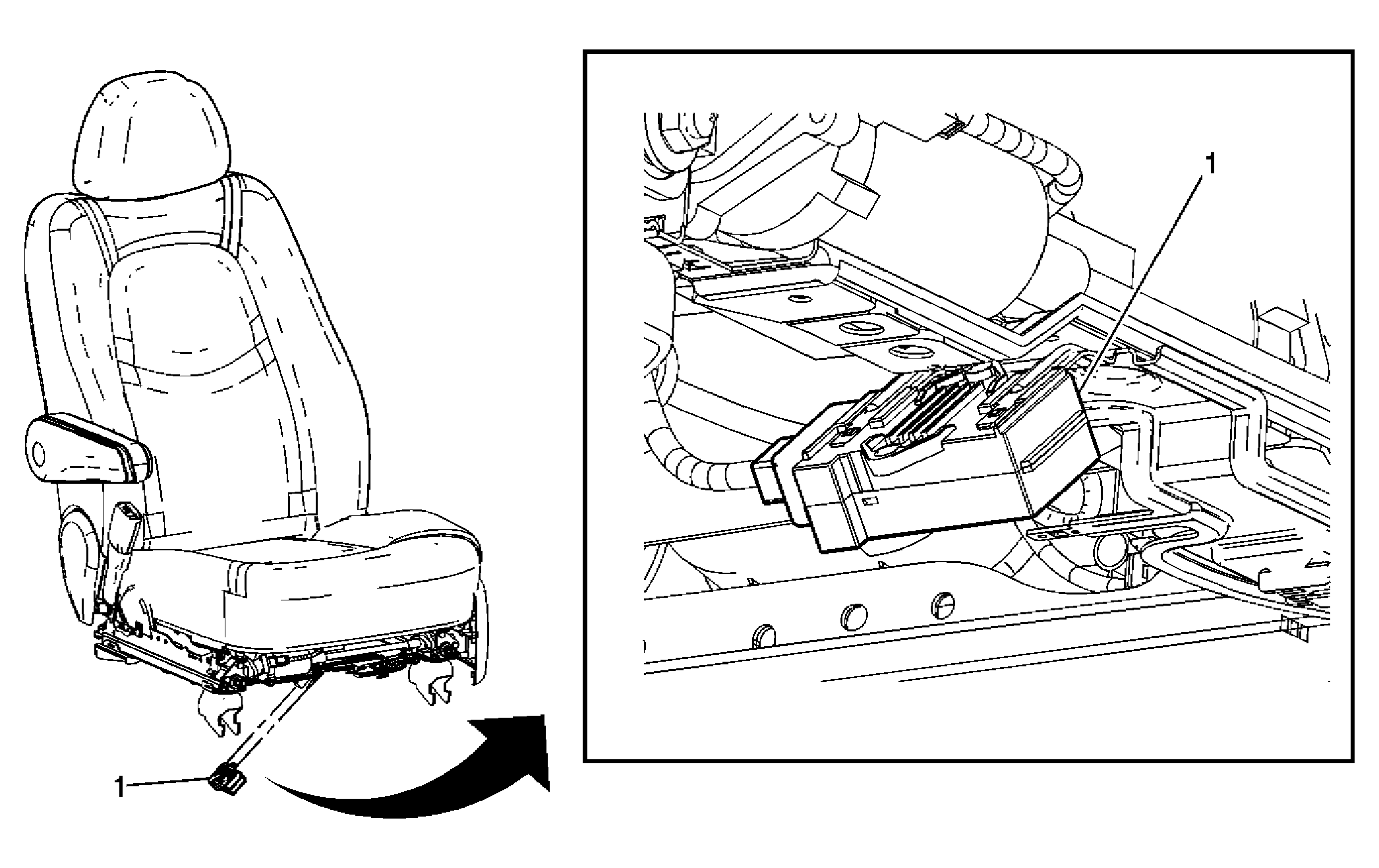

| 1 | Seat Heater Control Assembly Tip: Release the two tabs on the bracket from the control module and disconnect the electrical connector to remove. |
