Body Control System Schematics

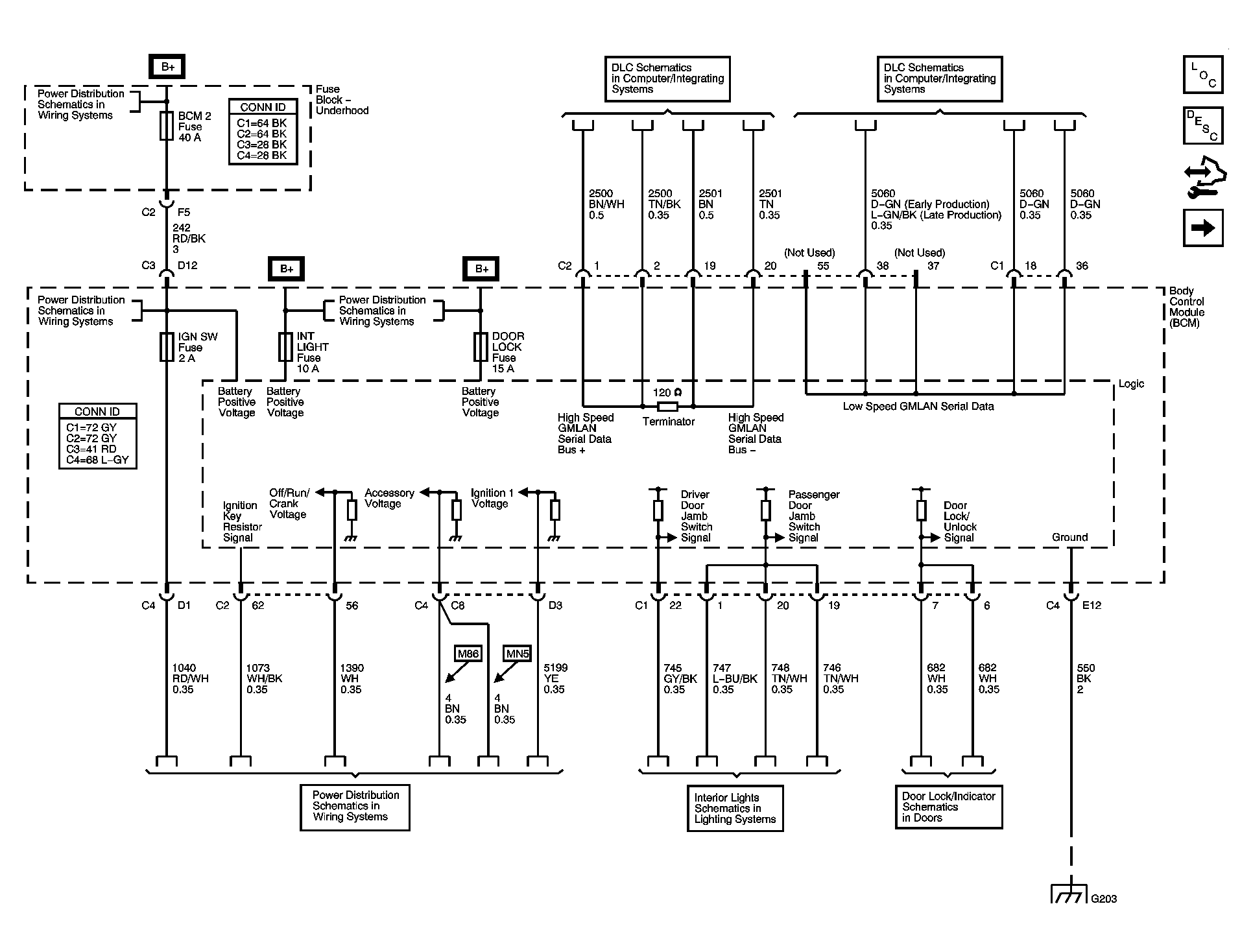

Fig 1: Power, Ground, Data Link, and Engine References
GM1570525Courtesy of GENERAL MOTORS CORP.

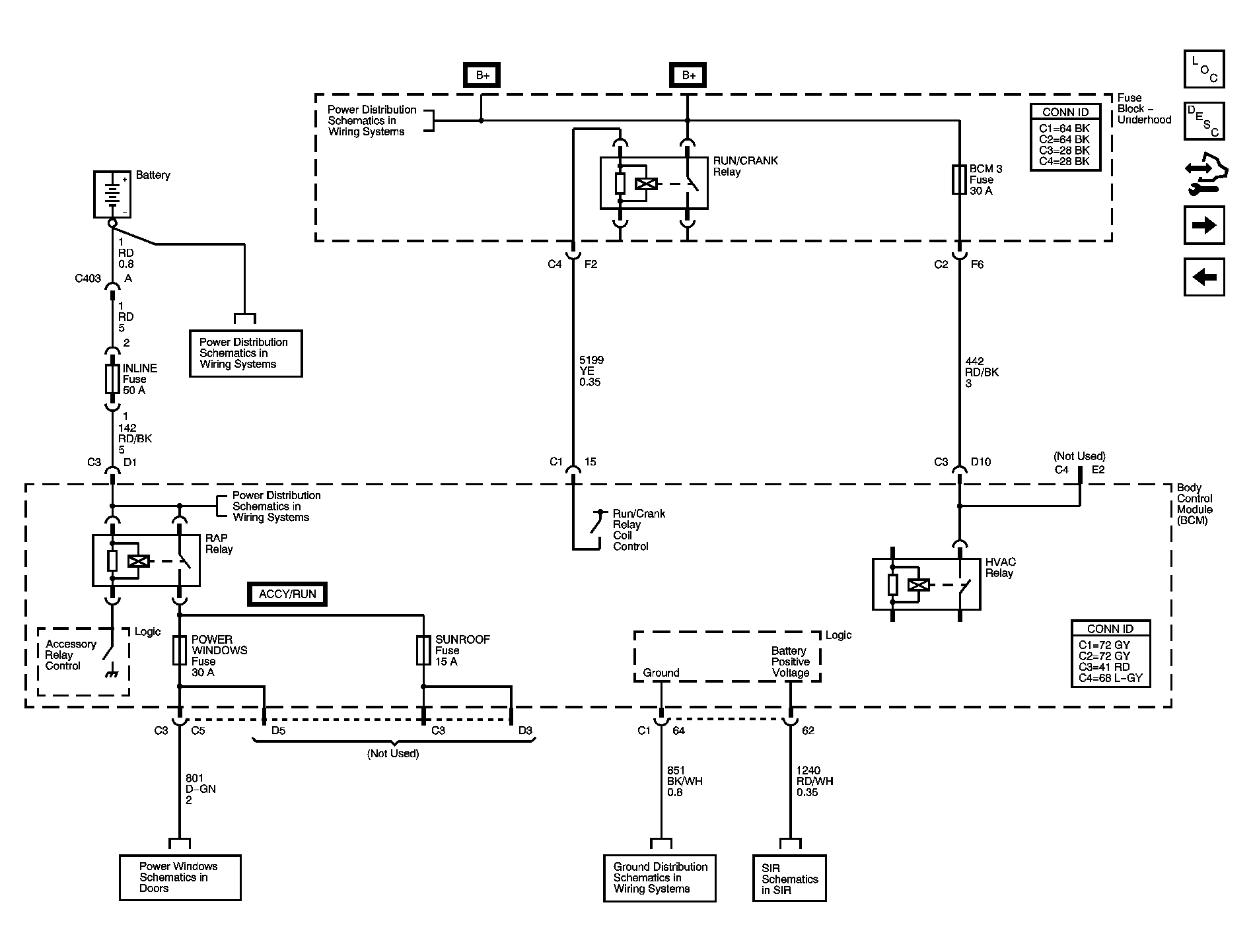

Fig 2: RUN/CRANK, RAP, HVAC Relays, BCM3, PWR Windows, Sunroof, Fuses
GM1570528Courtesy of GENERAL MOTORS CORP.

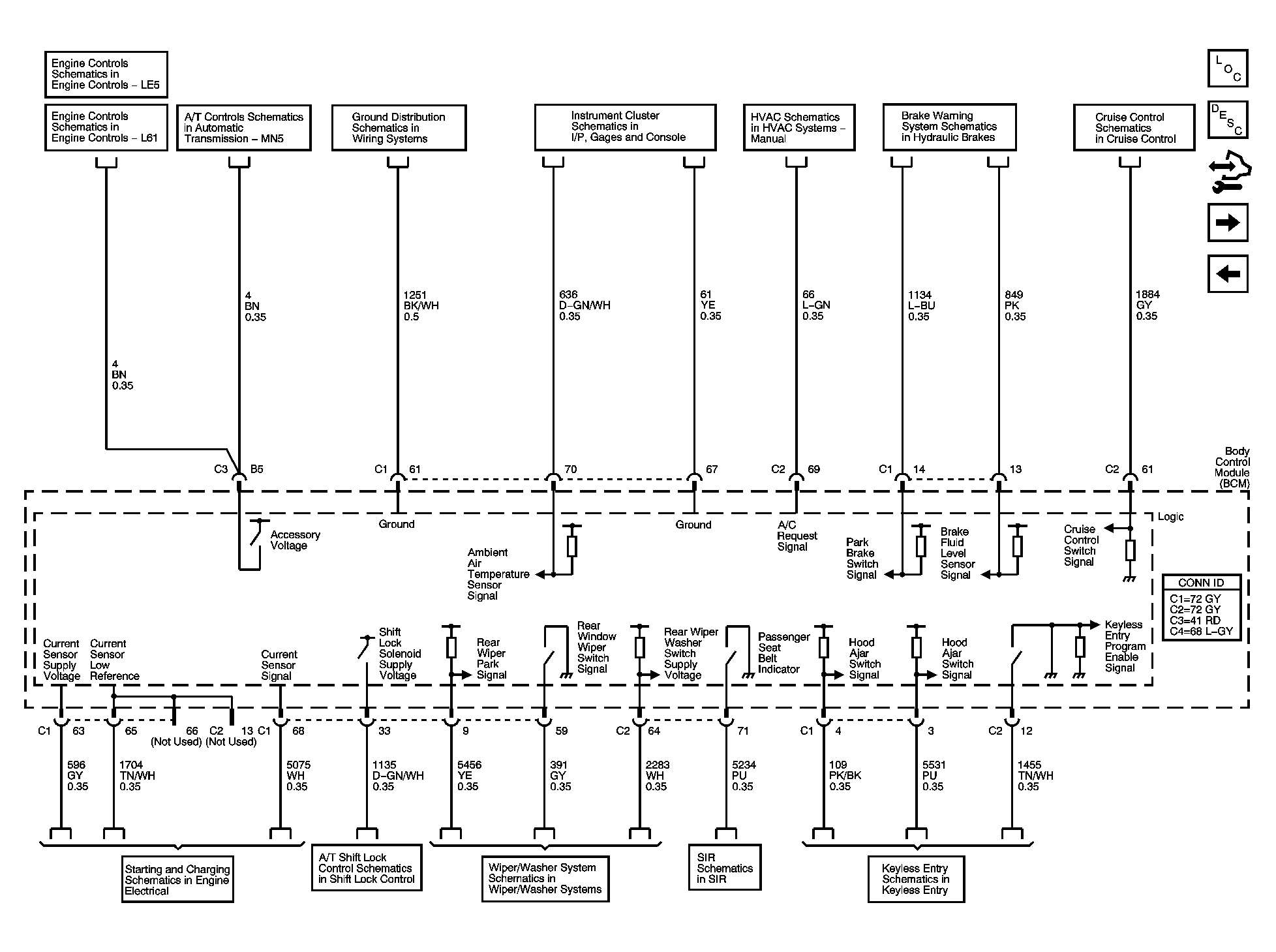

Fig 3: SIR, Shift Lock Control, ABS, Brake Warning, Cruise Control, Keyless Entry, Wiper/Washer, Engine Controls, Engine Cooling References, Starting/Charging
GM1570533Courtesy of GENERAL MOTORS CORP.

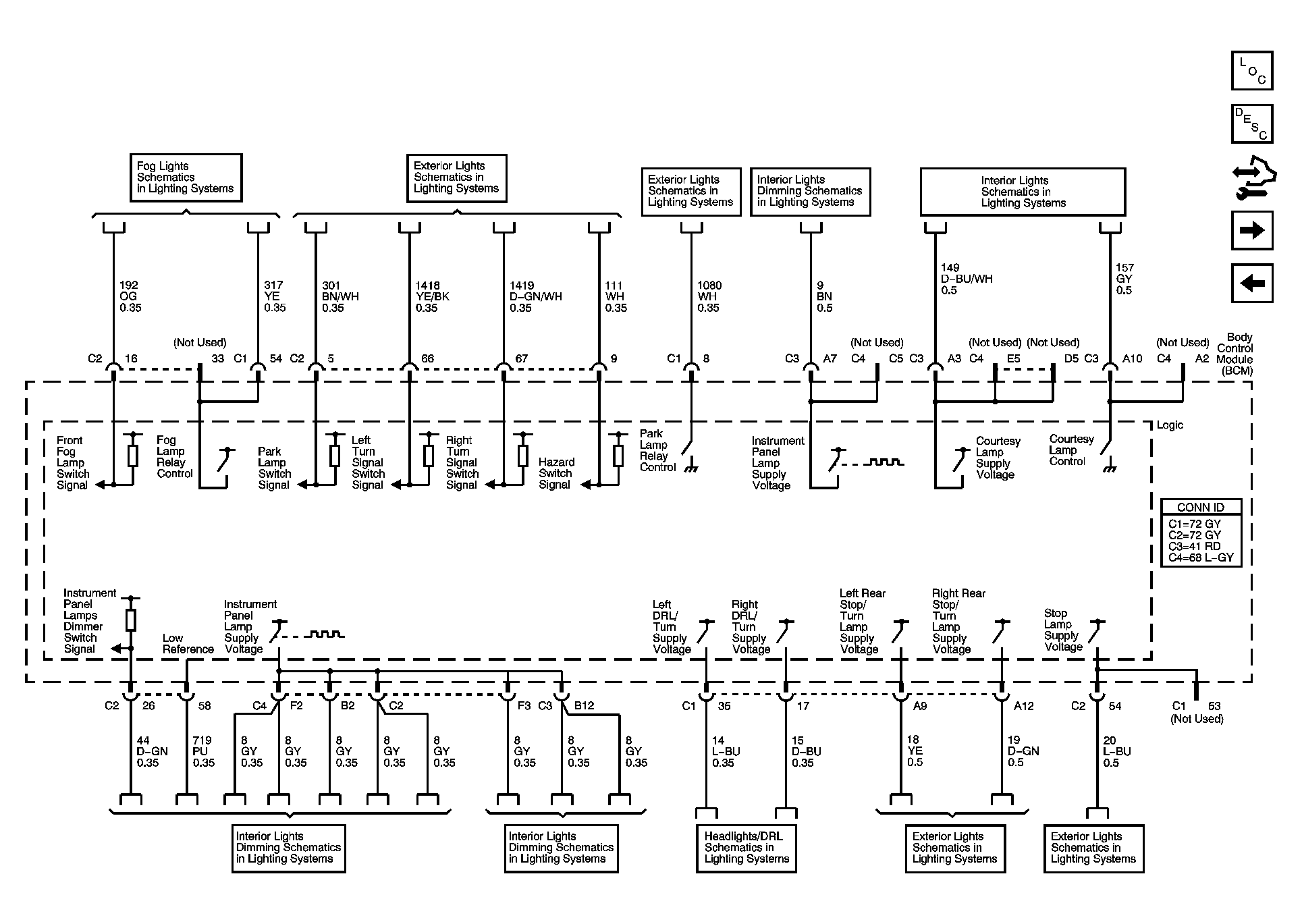

Fig 4: Lighting System References
GM1570538Courtesy of GENERAL MOTORS CORP.

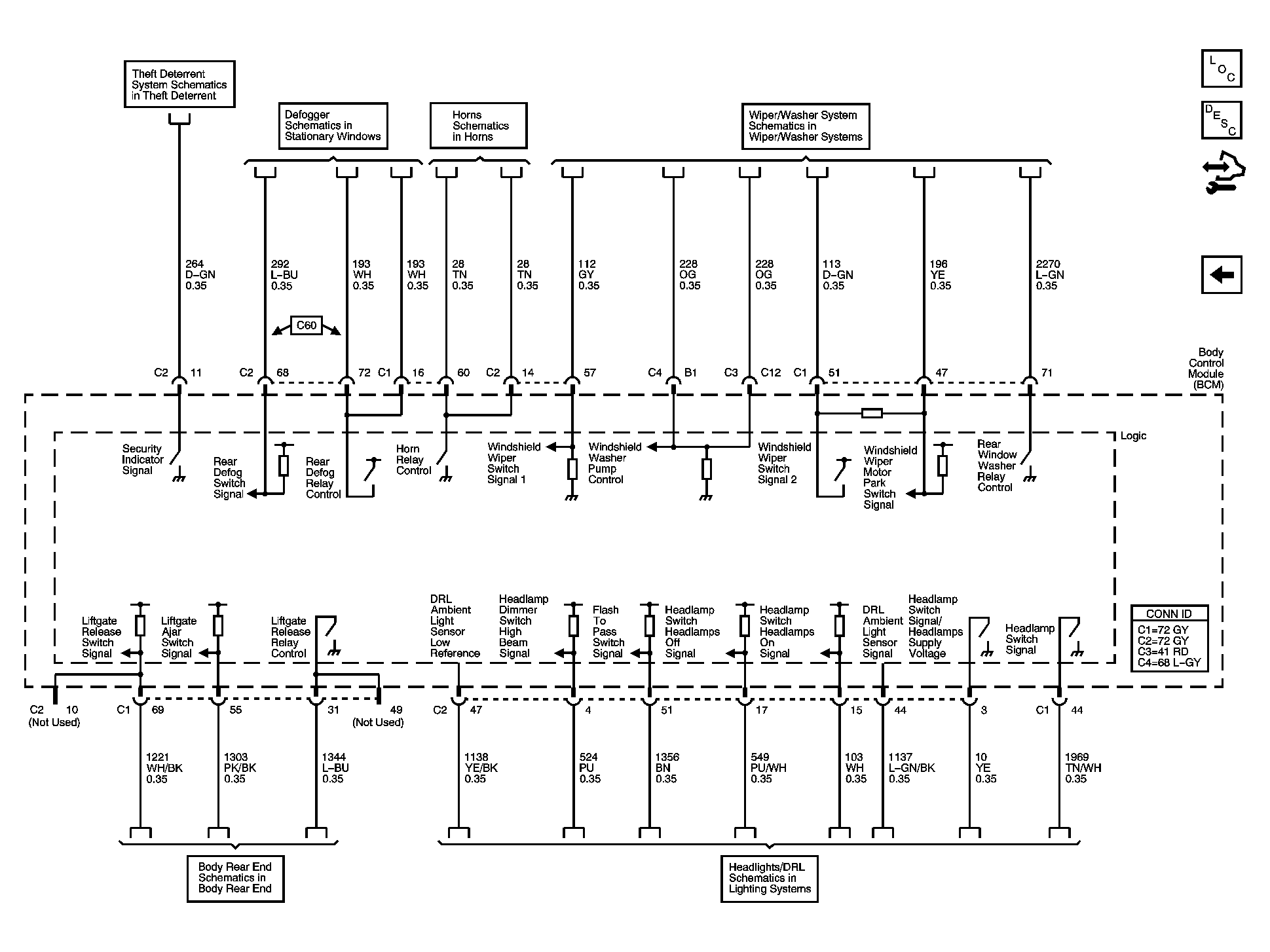

Fig 5: Body Rear End, Defogger, Headlights/DRL, Horns, and Wiper/Washer References
GM1570540Courtesy of GENERAL MOTORS CORP.
