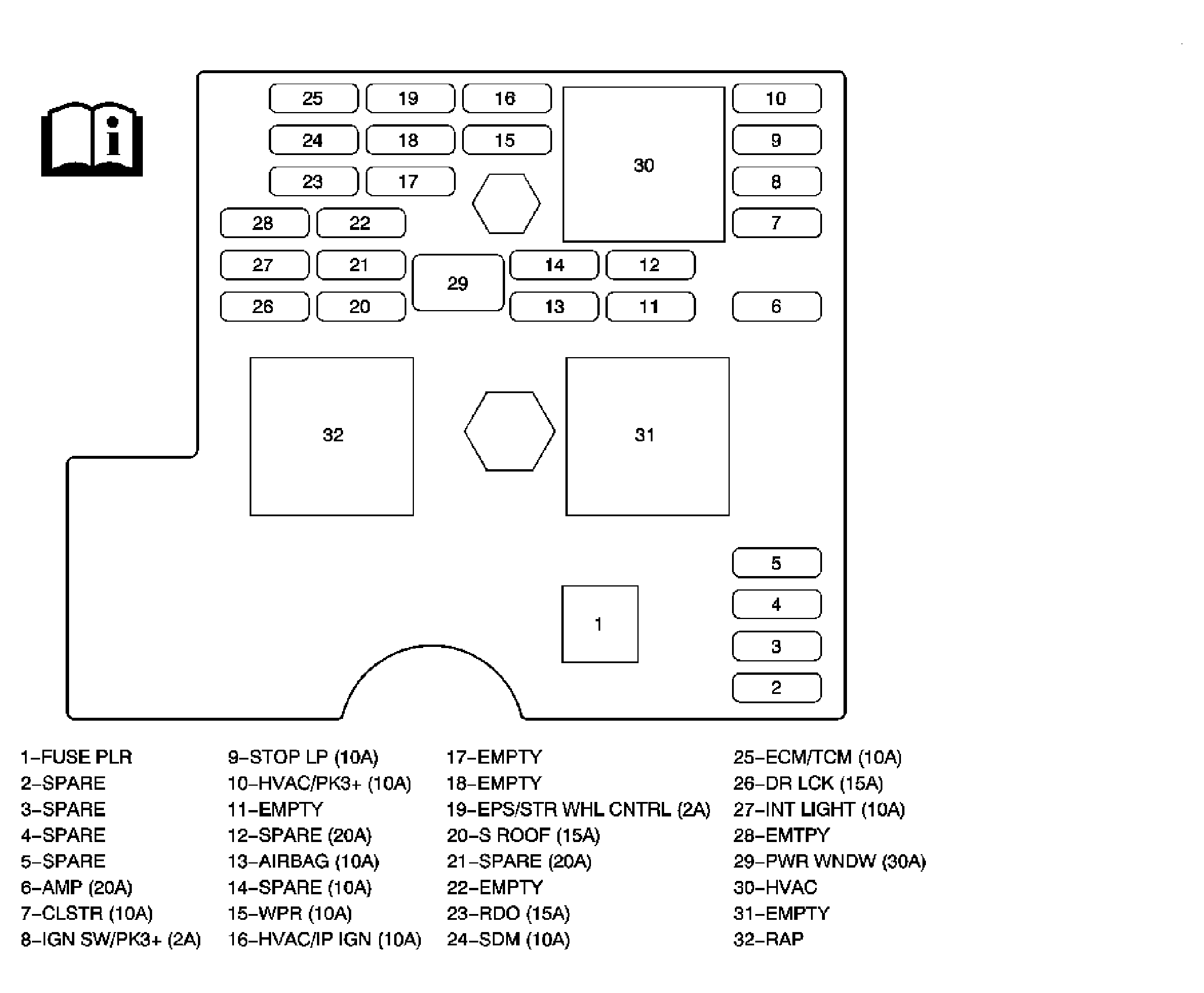

Body Control Module Fuse Block
NOTE:
Body Control Model fuse block is located under instrument panel below radio on right side of center console.
Body Control Module (BCM) Fuse And Relay Identification Legend
| No. | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|
| 1 | FUSE PULLER | - | FUSE PULLER |
| 2-5 | - | - | Not Used |
| 6 | AMP | 20A | Audio Amplifier |
| 7 | CLSTR | 10A | Instrument Panel Cluster (IPC) |
| 8 | IGN SW/PK3+ | 2A | Ignition Switch |
| 9 | STOP LP | 10A | Stop Lamp Switch |
| 10 | HVAC/PK3+ | 10A | HVAC Control Module and Theft Deterrent Control Module |
| 11 | - | - | Not Used |
| 12 | SPARE | 20A | Not Used |
| 13 | AIRBAG | 10A | Inflatable Restraints Sensing and Diagnostic Module (SDM) and Inflatable Restraint Front Passenger Presence System (PPS) Module |
| 14 | SPARE | 10A | Not Used |
| 15 | WPR | 10A | Windshield Wiper Washer Switch |
| 16 | HVAC/IP IGN | 10A | I/P Cluster, Clutch Pedal Start Switch, HVAC Control Module, and Stop Lamp/TCC/Cruise Release Switch |
| 17-18 | - | - | Not Used |
| 19 | EPS/STR WHL CNTRL | 2A | Electronic Power Steering (EPS) Column Assembly and Inflatable Restraint Steering Wheel Module Coil |
| 20 | S ROOF | 15A | Not Used |
| 21 | SPARE | 20A | Not Used |
| 22 | - | - | Not Used |
| 23 | RDO | 15A | Radio and Remote Control Door Lock Receiver |
| 24 | SDM | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) and Body Control Module |
| 25 | ECM/TCM | 10A | Fuse Block Underhood, Engine Control Module (ECM), and Transmission Control Module (TCM) |
| 26 | DR LCK | 15A | Driver Door Unlock Relay, Door Unlock Relay, and Door Lock Relay |
| 27 | INT LIGHT | 10A | Interior lamps relay |
| 28 | - | - | Not Used |
| 29 | PWR WINDW | 30A | Master Switch |
| 30 | HVAC Relay | - | Blower Motor |
| 31 | - | - | Not Used |
| 32 | RAP Relay | - | PWR WINDW Fuse, SPARE fuses, and S ROOF Fuse |
