Power Seat Switch Replacement

WARNING: This page is about a different car, the 2009 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

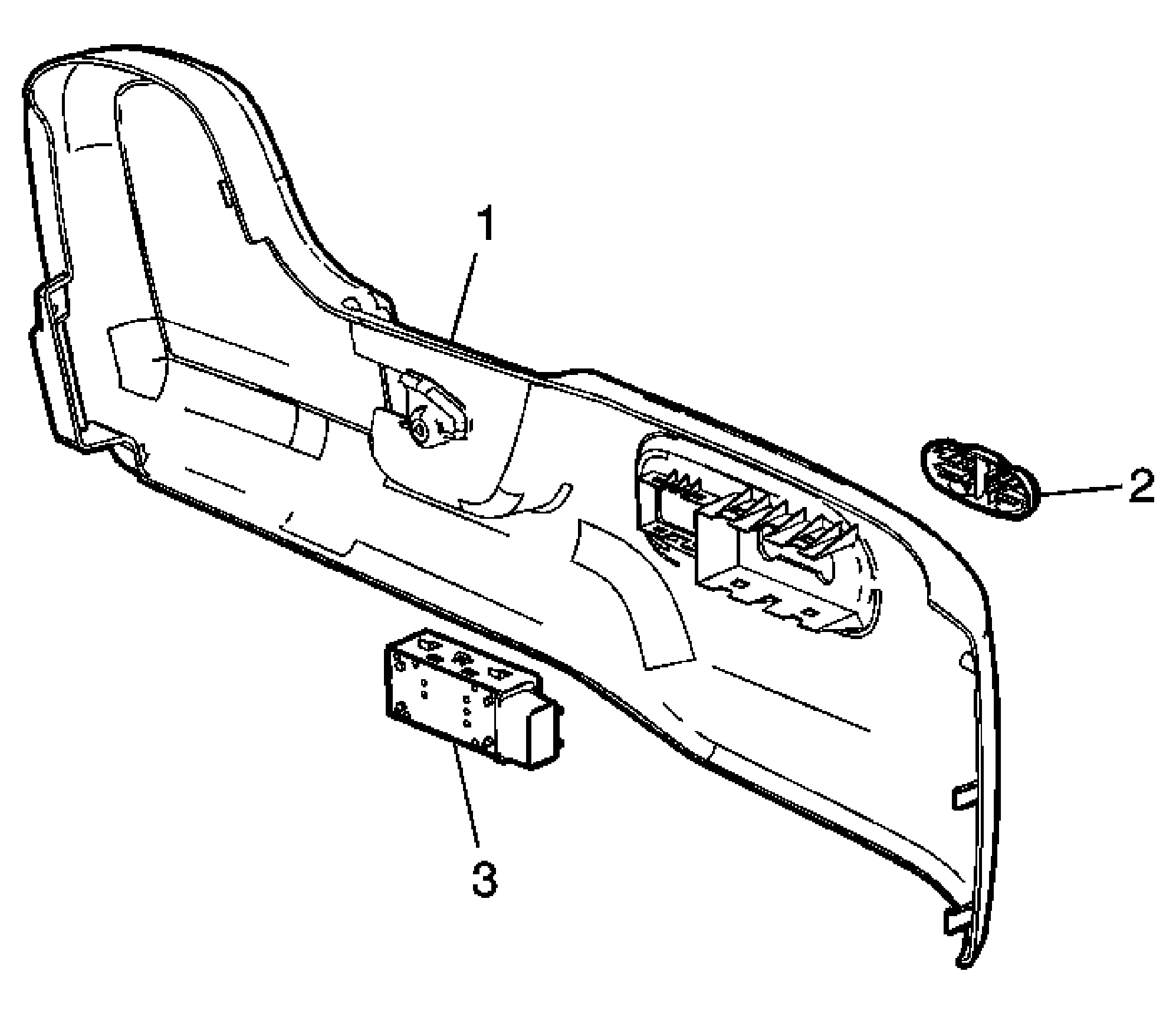

Fig 1: Identifying Power Seat Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the recliner handle. Refer to Driver or Passenger Seat Recliner Handle Replacement .
1	Cover, Seat Riser Finish Outboard Refer to Front Seat Cushion Outer Trim Panel Replacement (Manual) or Front Seat Cushion Outer Trim Panel Replacement (Power) .
2	Knob, Seat Adjuster Switch
3	Switch, Driver Seat Adjuster Tip: Disconnect the electrical connector. Unclip from seat riser finish cover and pull away to remove.
