Stabilizer Shaft Replacement

WARNING: This page is about a different car, the 2008 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

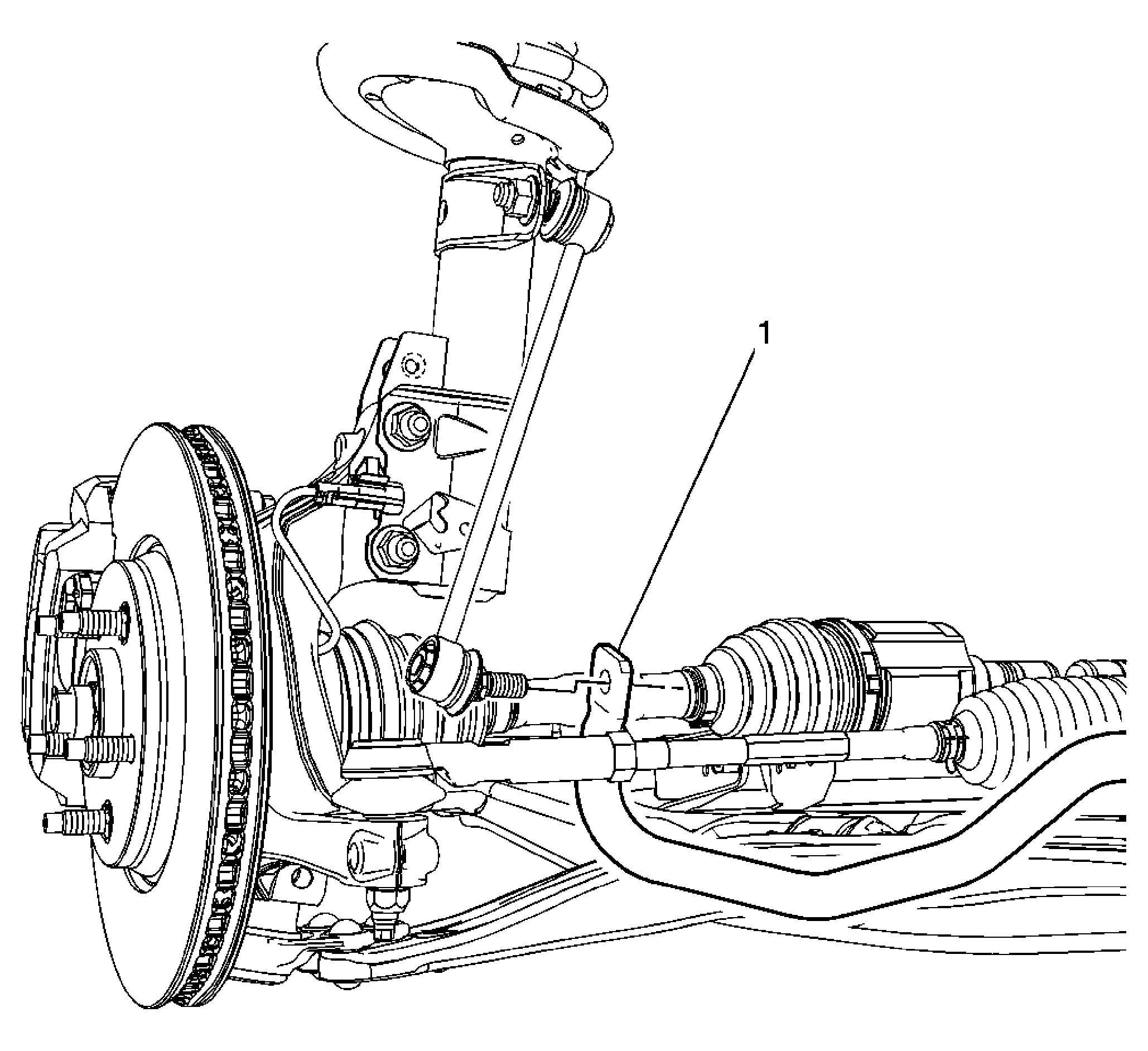

Fig 1: Stabilizer Shaft

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tires and wheels. Refer to Tire and Wheel Removal and Installation . Remove the stabilizer shaft link from the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement Remove the stabilizer shaft insulators from the stabilizer shaft. Refer to Stabilizer Shaft Insulator Replacement .
1	Front Stabilizer Shaft Tip: Remove the stabilizer shaft from the right side of the vehicle.

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tires and wheels. Refer to Tire and Wheel Removal and Installation .
Remove the stabilizer shaft link from the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement
Remove the stabilizer shaft insulators from the stabilizer shaft. Refer to Stabilizer Shaft Insulator Replacement .

Front Stabilizer Shaft
Tip: Remove the stabilizer shaft from the right side of the vehicle.
