Installation Procedure

WARNING: This page is about a different car, the 2005 Pontiac Pursuit and 2005 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Install the ball joint to the lower control arm.

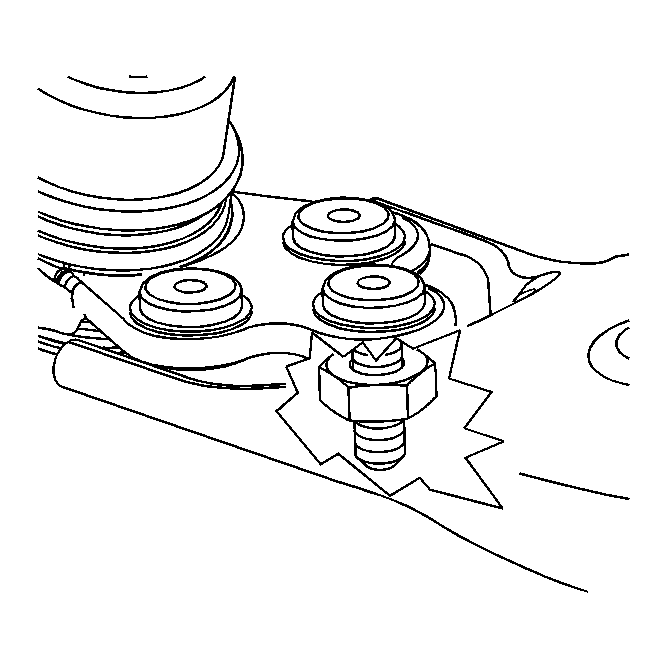

Fig 1: Installing Ball Joint Bolts & Nuts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the ball joint bolts and the nuts. Follow the instructions in the ball joint kit.
Tighten: Tighten the ball joint bolts to 68 N.m (50 lb ft).
Install the lower control arm. Refer to Lower Control Arm Replacement .
Lower the vehicle.
