Radiator Support Replacement
WARNING: This page is about a different car, the 2007 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.
Radiator Support Replacement

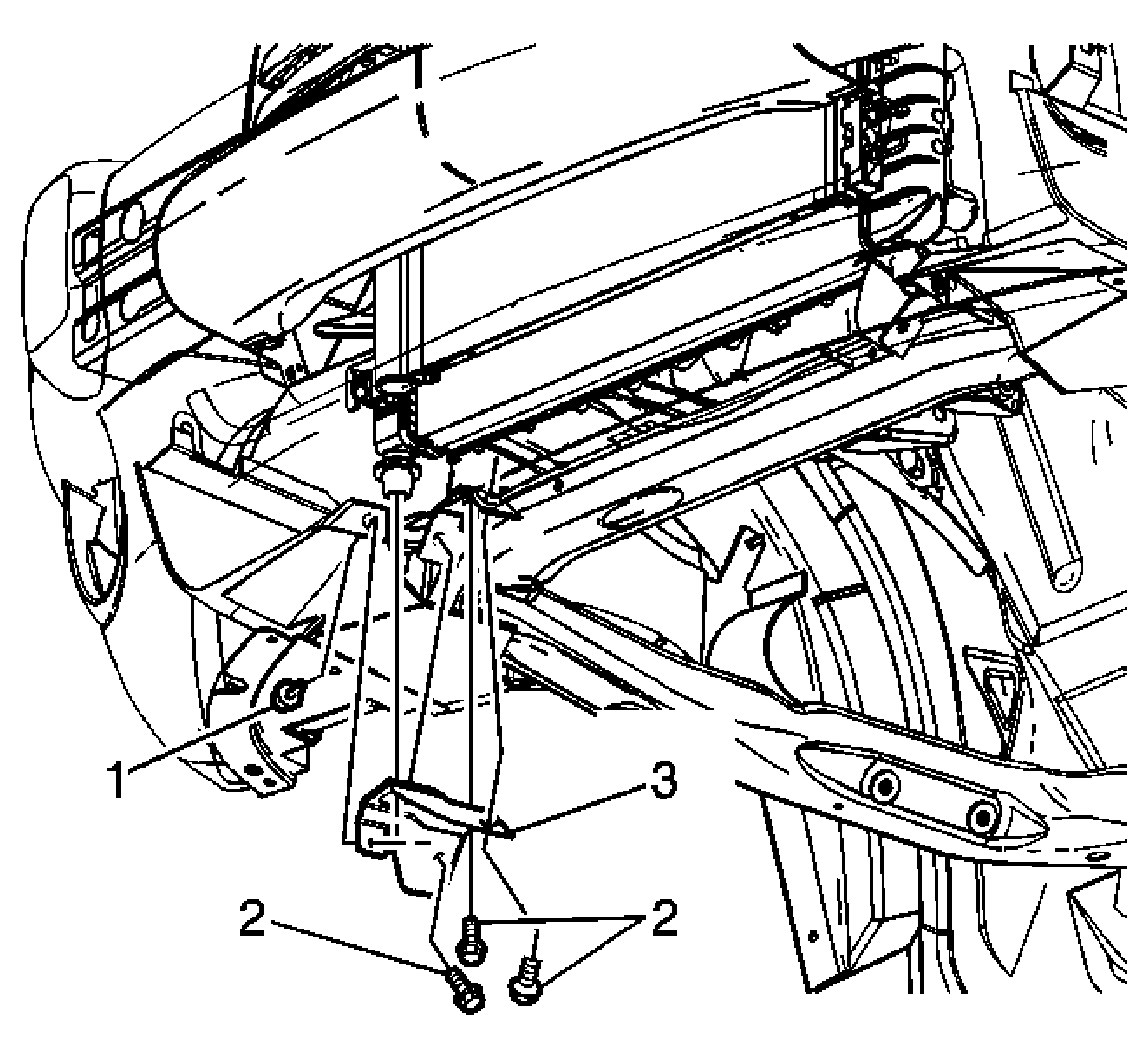

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
. |
|
| 1 | Retainer, Front Bumper Fascia Lower Deflector - Push In |
| 2 | Bolt, Radiator Support - Lower Tighten: 34 N.m (25 lb ft) |
| 3 | Support, Radiator - Lower |
