Water Deflector Replacement - Rear Door

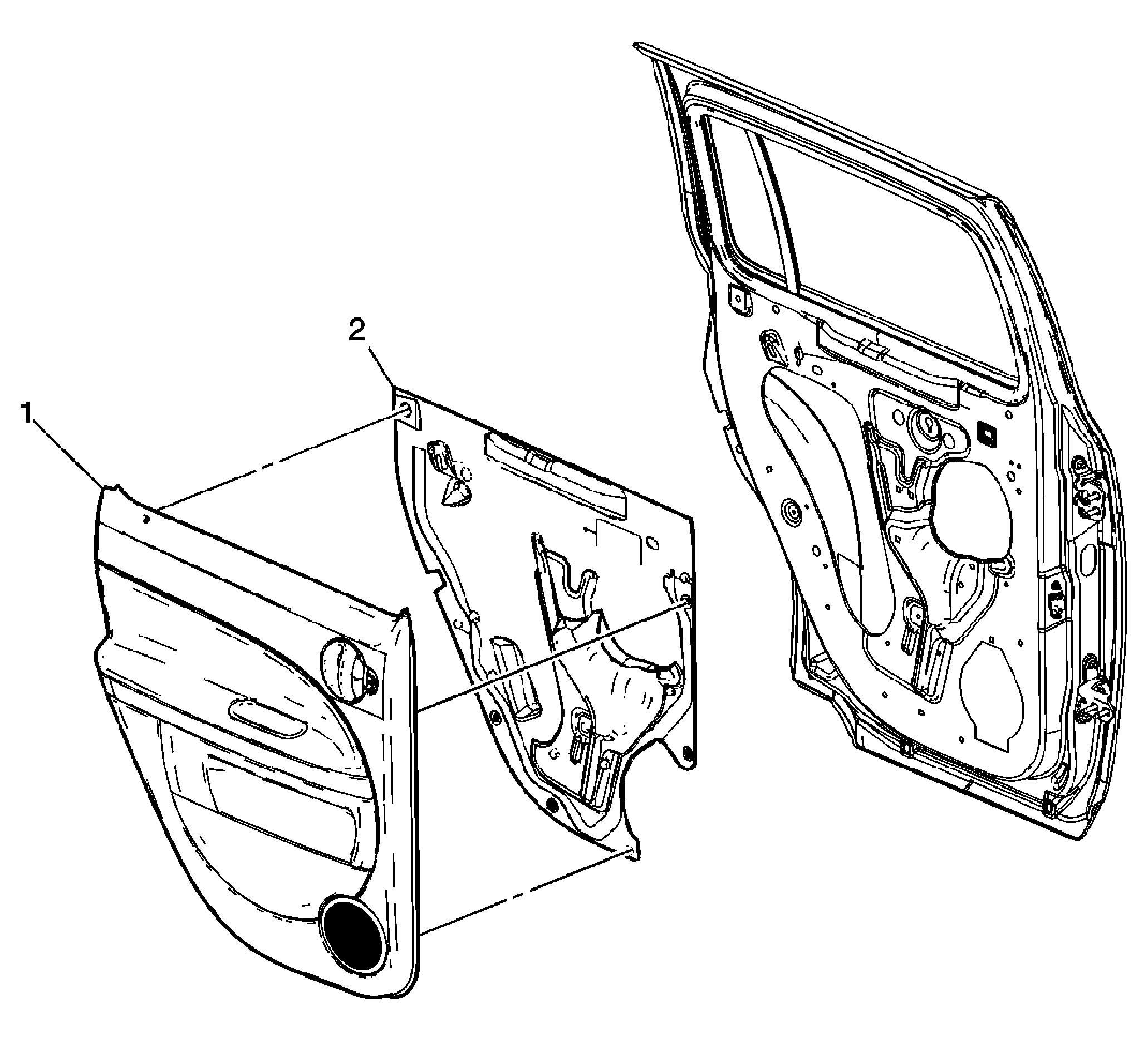

Fig 1: Water Deflector Replacement - Rear Door

Courtesy of GENERAL MOTORS CORP.

Water Deflector Replacement - Rear Door

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Trim Assembly, Rear Side Door Refer to Trim Panel Replacement - Side Rear Door .
2	Deflector Assembly, Rear Side Door Water
