Trim Panel Replacement - Side Front Door

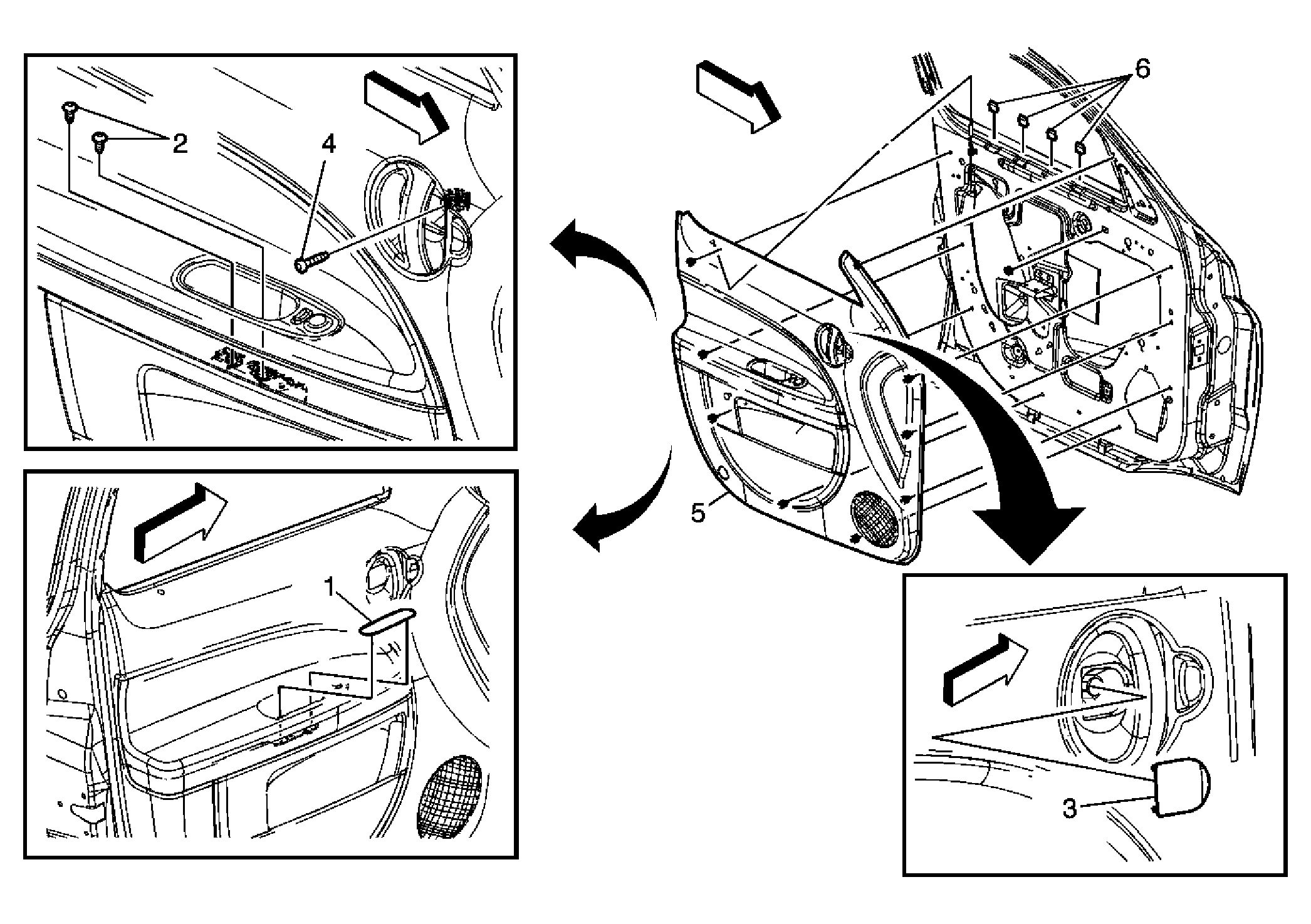

Fig 1: Trim Panel Replacement - Side Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Liner, Front Side Door Armrest Pull Cup
2	Screw, Front Side Door Armrest Pull Cup (Qty: 2) Tighten: 3 N.m (25 lb in)
3	Cover, Front Side Door Inside Handle
4	Screw, Front Side Door Inside Handle Tighten: 3 N.m (25 lb in)
5	Panel, Front Side Door Trim Tip: Use a J 38778 Door Trim Pad Clip Remover to aid in the removal of the side door trim panel. See Special Tools . Disconnect the inside door handle linkage.
6	Clip, Door Trim Panel Retainer (Qty: 9)
