Hinge Replacement - Rear Door
Hinge Replacement - Rear Door

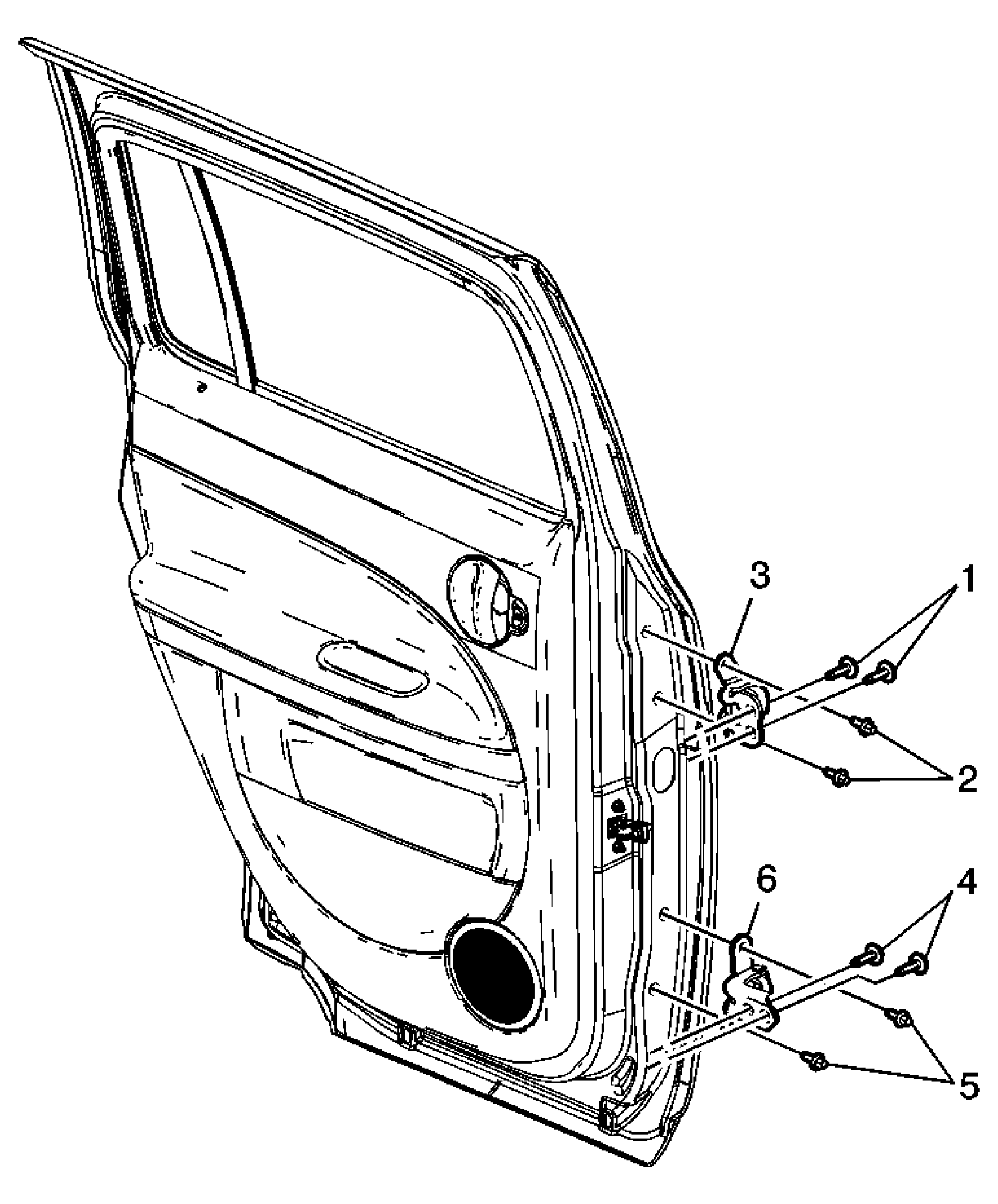

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| Rear Side Door Upper Hinge Assembly Replacement
IMPORTANT:
Replace only one hinge at a time.
|
|
| 1 | Bolt, Rear Side Door Hinge Upper (Qty: 2) Tighten: 35 N.m (26 lb ft) |
| 2 | Bolt, Rear Side Door Hinge Upper (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 3 | Hinge Assembly, Rear Side Door Upper
NOTE:
Striker alignment is a crucial part of door latch operation. Do not use the door striker to adjust the door to the vehicle. Failure to properly adjust the striker can result in damage to the door latch and the striker. Tip: Check the door for proper alignment, adjust as necessary. |
| Rear Side Door Lower Hinge Assembly Replacement
IMPORTANT:
Replace only one hinge at a time.
|
|
| 4 | Bolt, Rear Side Door Hinge Lower (Qty: 2) Tighten: 35 N.m (26 lb ft) |
| 5 | Bolt, Rear Side Door Hinge Lower (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 6 | Hinge Assembly, Rear Side Door Lower
NOTE:
Striker alignment is a crucial part of door latch operation. Do not use the door striker to adjust the door to the vehicle. Failure to properly adjust the striker can result in damage to the door latch and the striker. Tip: Check the door for proper alignment, adjust as necessary. |
