Installation Procedure

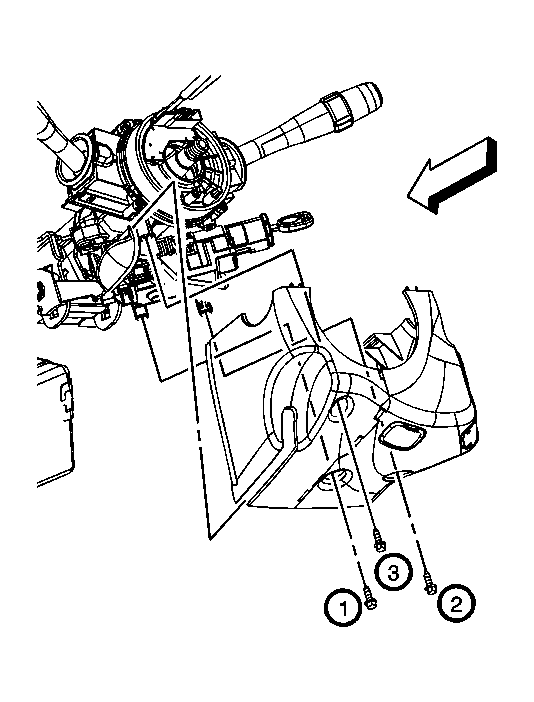

Fig 1: Lower Steering Column Cover

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Tighten the lower steering column screws in the mandatory torque sequence as shown.

Install the lower steering column cover screws.
Tighten: Tighten the lower steering column cover screws to 2 N.m (17 lb in).

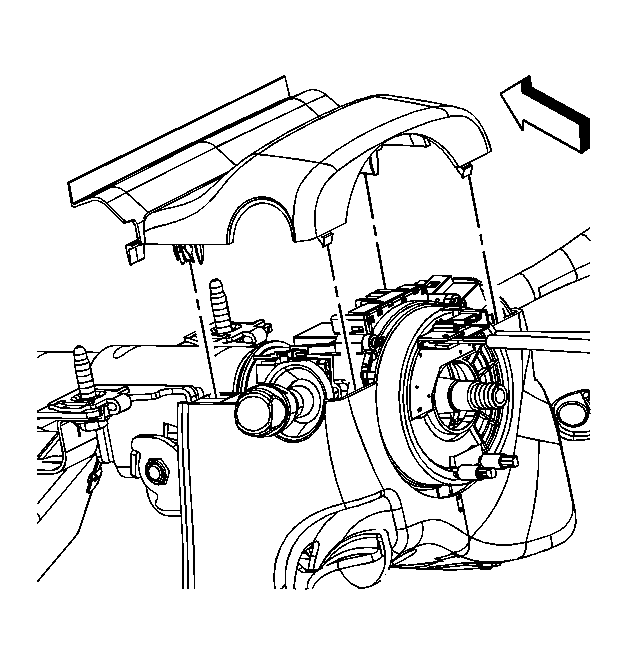

Fig 2: Upper Steering Column Trim Cover

Courtesy of GENERAL MOTORS CORP.

Install the upper steering column trim cover by guiding the soft closeout under the I/P Trim Panel.
Push on the upper steering column cover until it snaps into place and is secure.
Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
