Horn Switch Replacement
Horn Switch Replacement

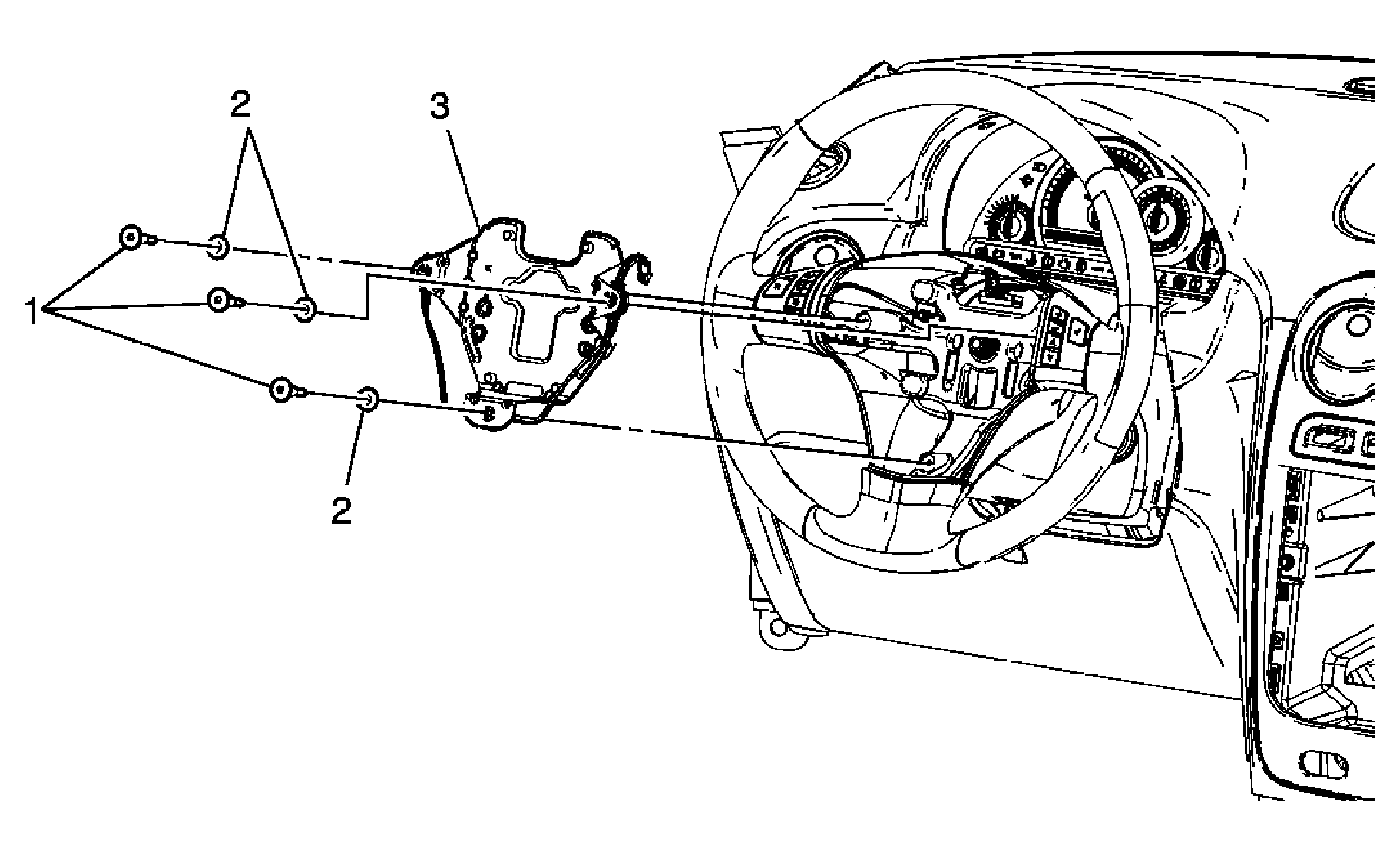

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement
. |
|
| 1 | Bolt, Steering Wheel Horn Switch (Qty: 3) Tighten: 7 N.m (62 lb in) |
| 2 | Washers, Steering Wheel Horn Switch (Qty: 3) |
| 3 | Steering Wheel Horn Switch Assembly |
