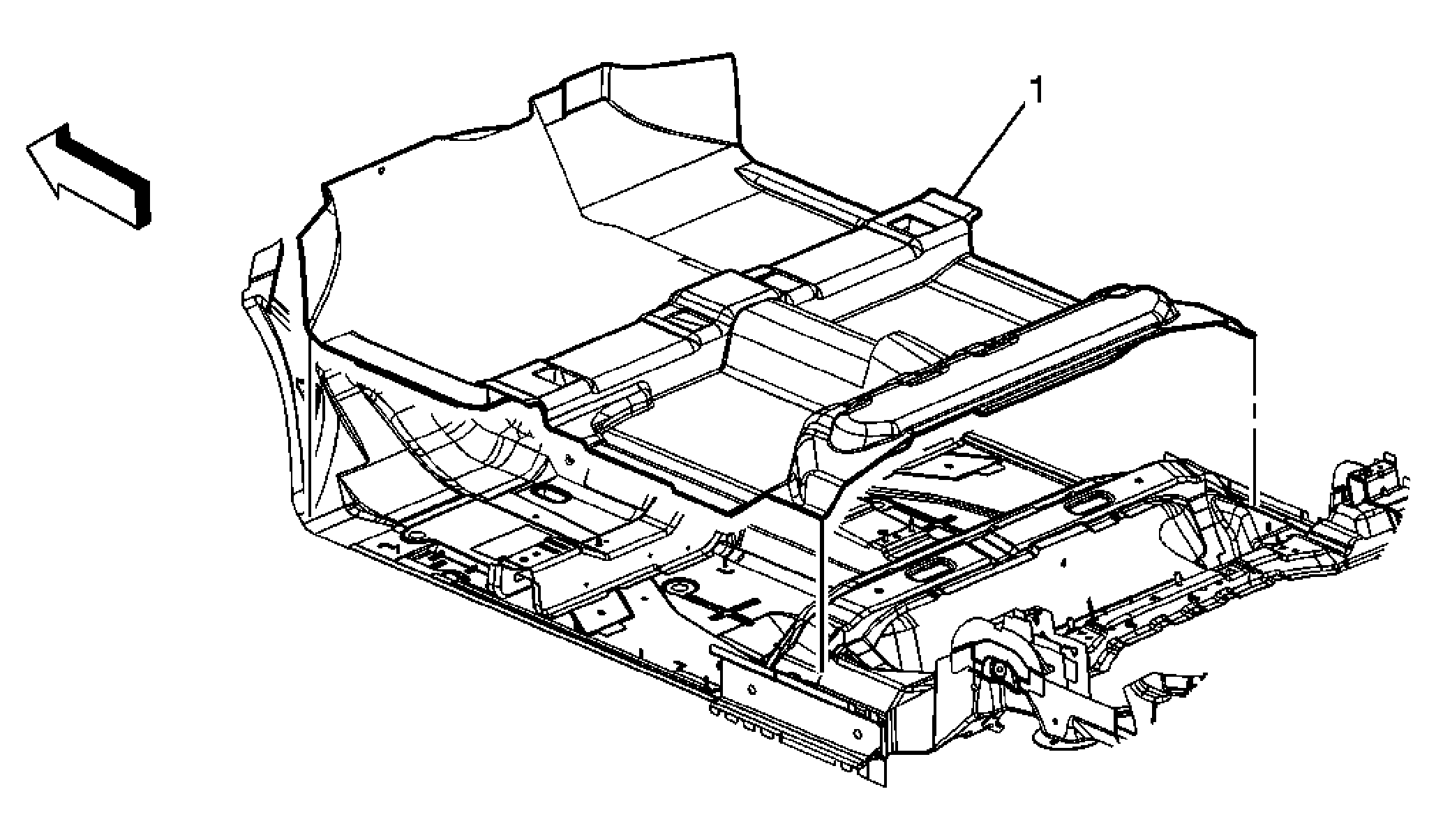

Carpet Replacement

Preliminary Procedures

1. Disable the SIR system. Refer to SIR Disabling and Enabling Zones .
2. Remove the front seats. Refer to Seat Replacement - Front Bucket .
3. Remove the rear seat. Refer to Seat Replacement - Rear .
4. Remove the floor console. Refer to Console Replacement - Front Floor .
5. Remove the front seat belt buckles. Refer to Seat Belt Buckle Replacement - Front .
6. Remove the rear seat belt buckles. Refer to Seat Belt Buckle Replacement - Rear .
7. Remove the front door sill plates. Refer to Door Sill Plate Replacement - Front .
8. Remove the rear door sill trim plates. Refer to Door Sill Plate Replacement - Rear .
9. Remove the hinge pillar trim panels. Refer to Trim Panel Replacement - Left Hinge Pillar  and Trim Panel Replacement - Right Hinge Pillar .
