Installation Procedure

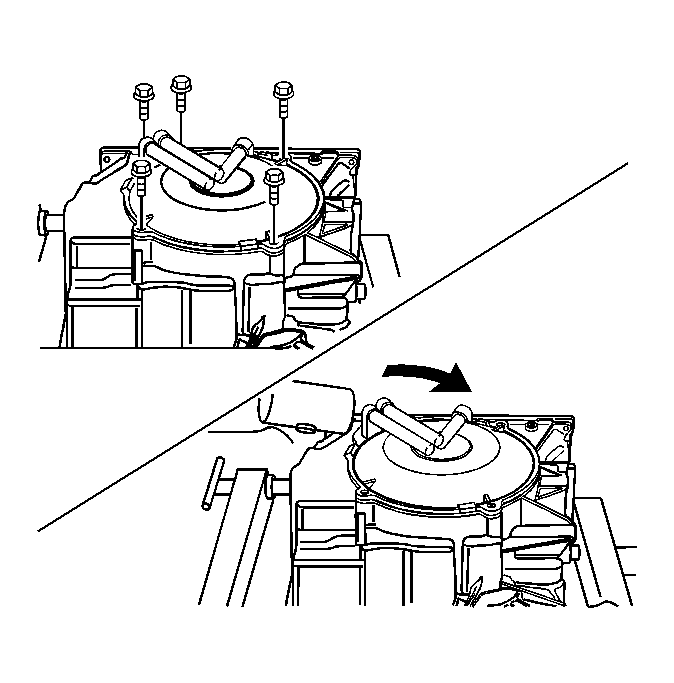

    Fig 1: Identifying Rear Cover And Bolts
    GM1255980Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the cover.

    Tighten:  Tighten the rear cover bolts to 23 N.m (17 lb ft)  .

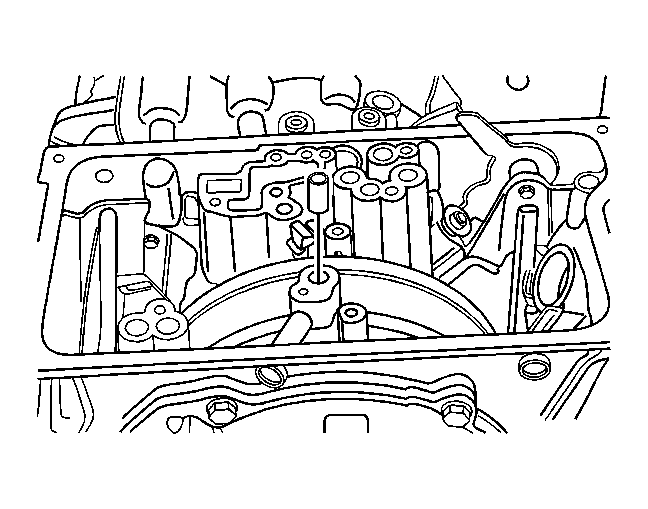

    2. Fig 2: View Of Sealing Sleeve
    GM1255951Courtesy of GENERAL MOTORS CORP.
  2. Rotate the transaxle 90 degrees.
    3. CAUTION: Refer to Safety Glasses Caution in Cautions and Notices.
  3. Install the sealing sleeve, Brake C.
  4. Install the valve body assembly. Refer to Control Valve Body Assemble .
