Control Valve Body Disassemble

    CAUTION: Refer to Safety Glasses Caution in Cautions and Notices.

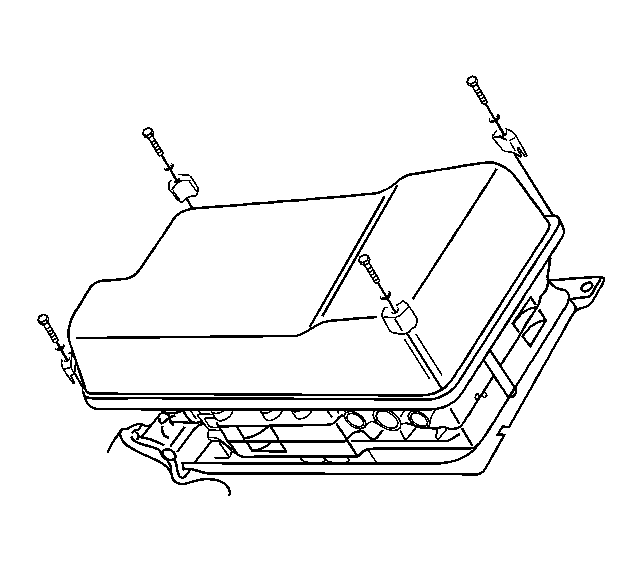

    Fig 1: View Of Oil Pan And Bolts
    GM1308642Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil pan bolts and the oil pan.
  2. Remove the oil pan gasket.

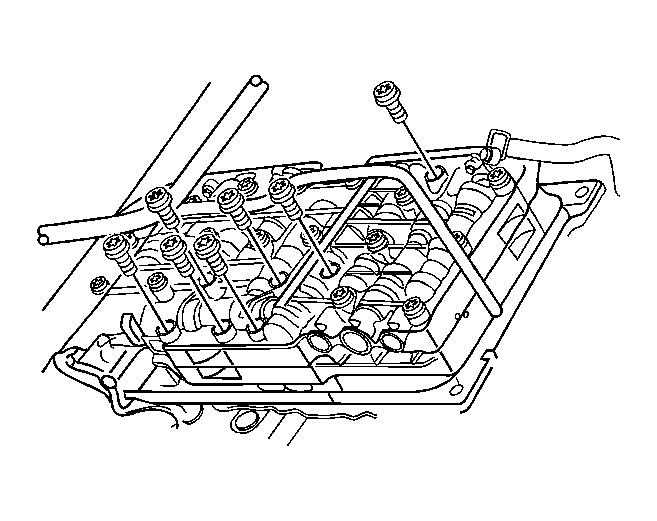

    3. Fig 2: View Of Valve Body Fixing Bolts And Input Speed Sensor Bolt
    GM1255948Courtesy of GENERAL MOTORS CORP.
  3. Remove valve body fixing bolts and transaxle input speed sensor bolt on the valve body.
  4. Remove the holder for the transaxle input speed sensor.

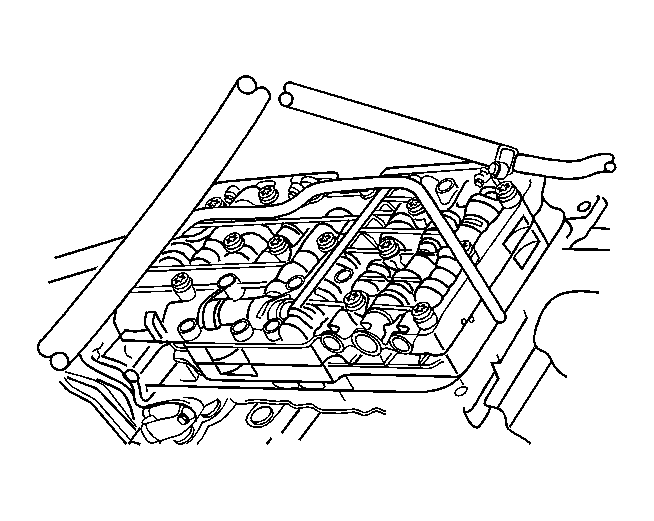

    5. Fig 3: View Of Tilted Valve Body
    GM1255950Courtesy of GENERAL MOTORS CORP.
  5. Tilt the valve body.
  6. Remove the fastening screw for the output speed sensor under the valve body assembly.
  7. Pry the cable out of the retaining clip. Pull out the output speed sensor.
