Removal Procedure

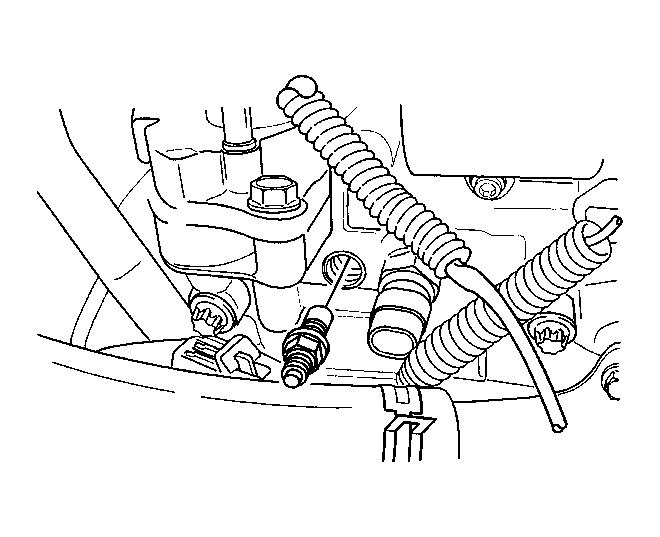

    Fig 1: Identifying Engine Coolant Temperature Sensor
    GM1255584Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Drain the coolant to a level below the coolant temperature sensor.
  3. Disconnect the electrical connector from the coolant temperature sensor.
  4. Remove the temperature sensor.
