Installation Procedure

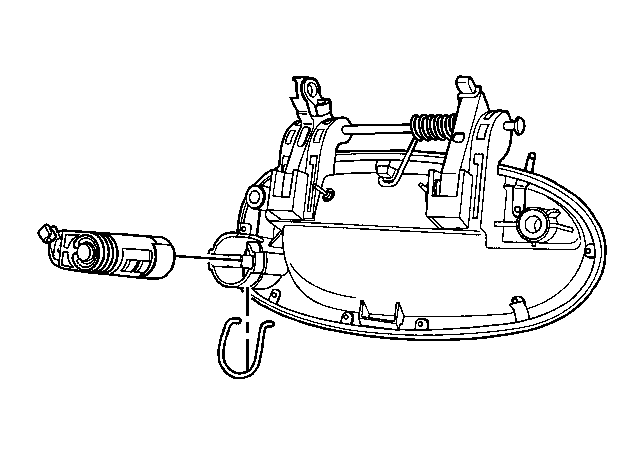

    Fig 1: Lock Cylinder
    GM1256834Courtesy of GENERAL MOTORS CORP.
  1. Install the lock cylinder with the retaining clip.
  2. Connect the outside door handle lock rod.
  3. Install the door seal trim. Refer to Sealing Strip Replacement - Door Bottom .
