Installation Procedure

NOTE: Refer to Fastener Notice in Cautions and Notices.

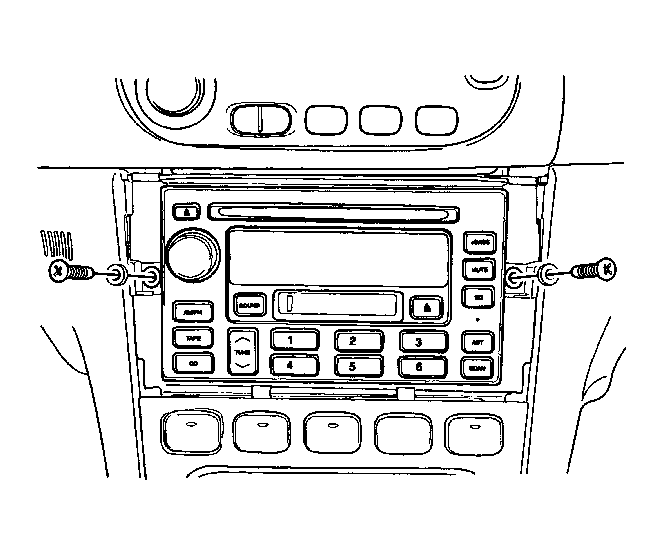

Fig 1: View Of Radio Mounting Screws

Courtesy of GENERAL MOTORS CORP.

Install the audio system with the screws.
Tighten: Tighten the screws to 4 N.m (35 lb in) .
Install the audio system trim plate.
Connect the negative battery cable.
Enter the audio security system 4-digit code. Refer to Radio/Audio System Description and Operation .
