Installation Procedure

    IMPORTANT: After installing the transmission assembly, the shift adapts must be reset. Reset the shift adapts using the scan tool. Go to Trans Adaptives Reset under Special Functions on the scan tool.
    Fig 1: Identifying DW 260-010
    GM1255936Courtesy of GENERAL MOTORS CORP.
  1. Install the transaxle into the vehicle.
  2. Use the DW 260-010  (1) or equivalent to support the transaxle assembly.
  3. NOTE: Refer to Fastener Notice .
    Fig 2: Identifying Lower Engine-To-Transaxle Bolts
    GM1255937Courtesy of GENERAL MOTORS CORP.
  4. Install the lower engine-to-transaxle bolts.

    Tighten:

    • Tighten the lower engine-to-transaxle bolts (1) to 75 N.m (55 lb ft)  .
    • Tighten the lower engine-to-transaxle bolts (2) to 21 N.m (15 lb ft)  .
    • Tighten the lower engine-to-transaxle bolts (3) to 31 N.m (23 lb ft)  .

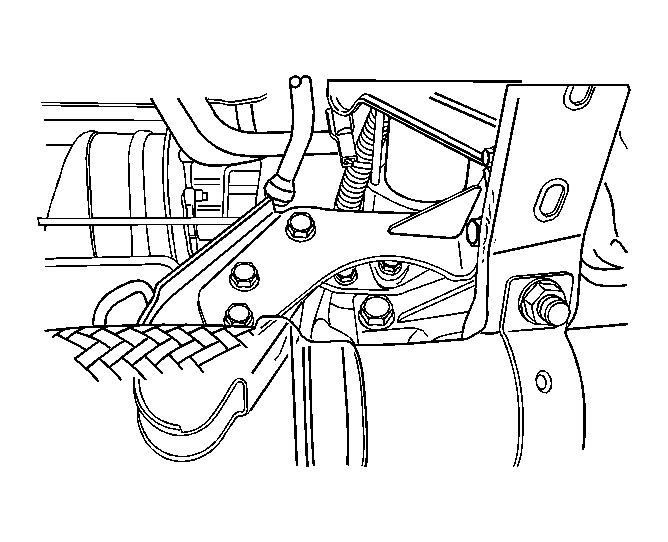

  5. Fig 3: Identifying Rear Transaxle Mounting Bracket Bolts
    GM1255940Courtesy of GENERAL MOTORS CORP.
  6. Install the rear transaxle mounting bracket bolts.

    Tighten:  Tighten the rear transaxle mounting bracket bolts to 65 N.m (48 lb ft)  .

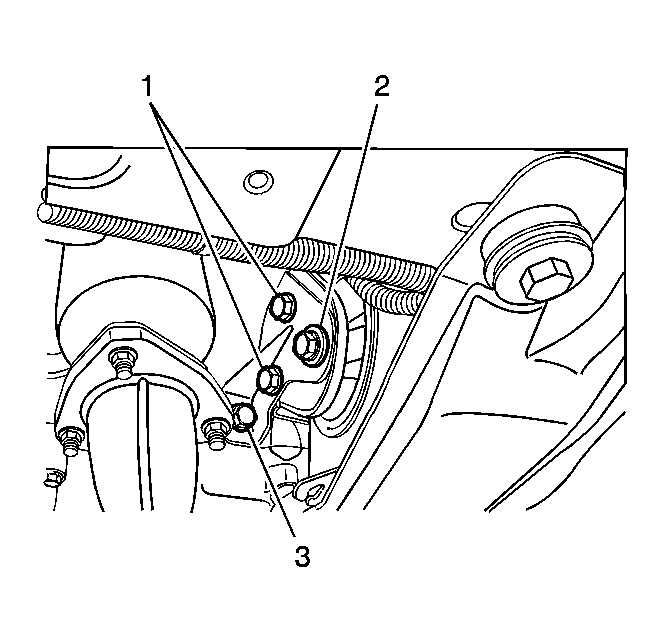

  7. Fig 4: Identifying Front Engine Mounting Bracket And Bolts
    GM1255941Courtesy of GENERAL MOTORS CORP.
  8. Install the front engine mounting bracket bolts and nuts.

    Tighten:

    • Tighten the front engine mounting bracket bolts (1) to 90 N.m (66 lb ft)  .
    • Tighten the front engine mounting bracket bolts (2) to 80 N.m (59 lb ft)  .
    • Tighten the front engine mounting bracket bolts (3) to 65 N.m (48 lb ft)  .

  9. Fig 5: View Of Transaxle With Rubber Access Cover Removed
    GM1255972Courtesy of GENERAL MOTORS CORP.
  10. Install the flywheel to torque converter bolts.

    Tighten:  Tighten the converter to flywheel bolts to 45 N.m (33 lb ft)  .

  11. Install the drive axle. Refer to Wheel Drive Shaft Inner Joint and Seal Replacement .

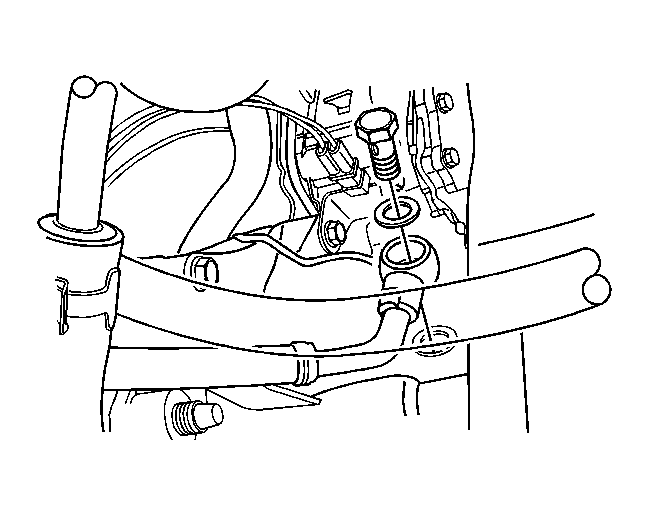

  12. Fig 6: View Of Oil Cooler Inlet Pipe Assembly
    GM1255932Courtesy of GENERAL MOTORS CORP.
  13. Install the oil cooler pipes from the transaxle. Refer to Transmission Fluid Cooler Hose/Pipe Replacement .
  14. Install the impact bar.
  15. Install the front engine cross-member.
  16. Lower the vehicle.

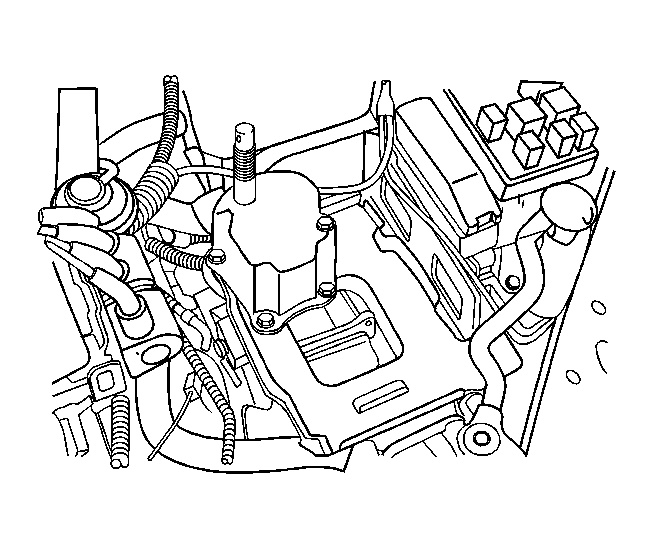

  17. Fig 7: View Of Left Transaxle Mounting Bracket
    GM1255942Courtesy of GENERAL MOTORS CORP.
  18. Install the left transaxle mounting bracket. Refer to Transmission Mount Bracket Replacement (2.0L DOHC)  or Transmission Mount Bracket Replacement (2.5L DOHC) .

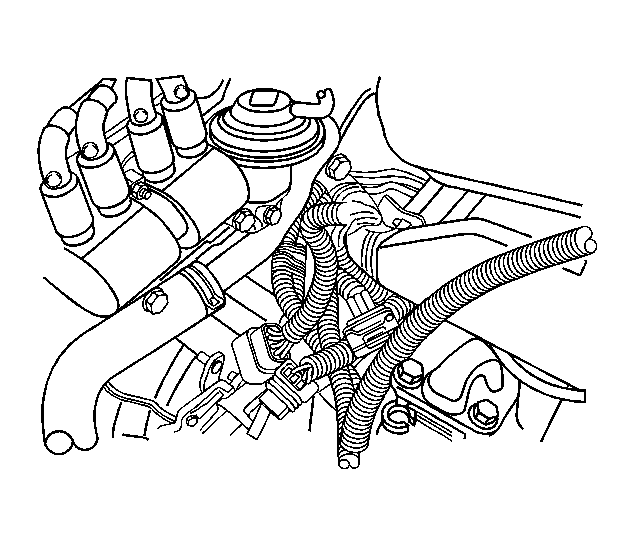

  19. Fig 8: Locating Upper Transaxle-To-Engine Bolts
    GM1255943Courtesy of GENERAL MOTORS CORP.
  20. Install the upper transaxle-to-engine bolts.

    Tighten:  Tighten the upper transaxle-to-engine bolts to 75 N.m (55 lb ft)  .

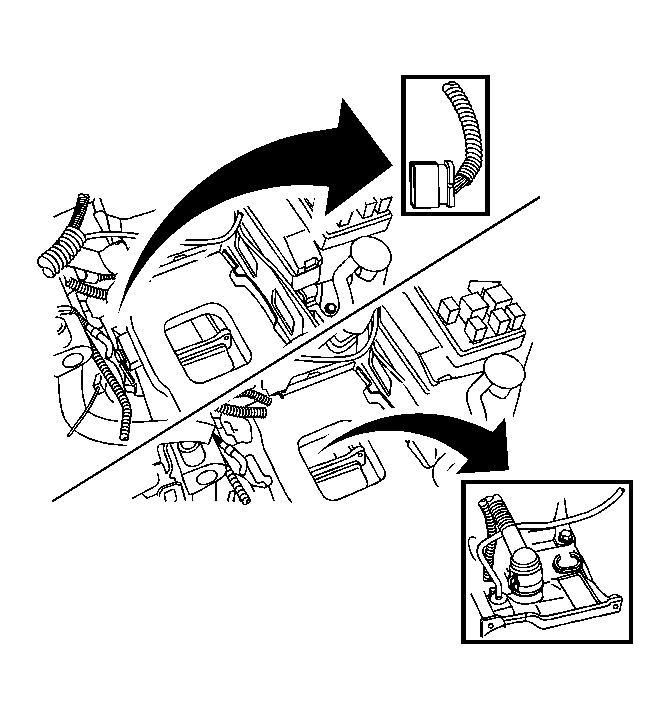

  21. Fig 9: View Of Transaxle Wiring Harness And Park/Neutral Position Switch Electrical Connector
    GM1255968Courtesy of GENERAL MOTORS CORP.
  22. Install the park/neutral position switch electrical connector.
  23. Connect the transaxle wiring harness to the transaxle.

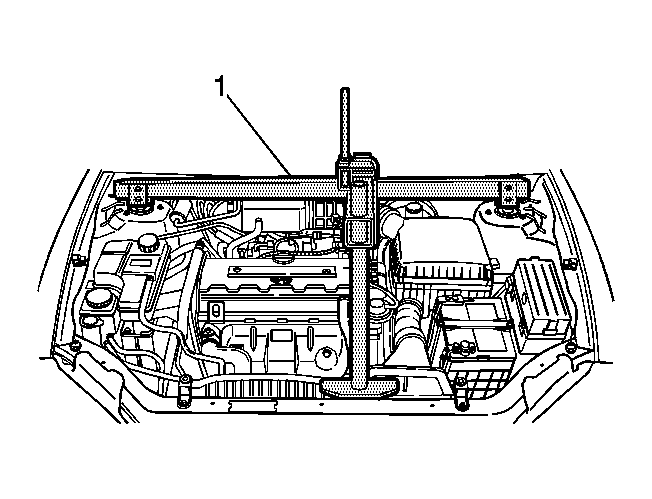

  24. Fig 10: View Of J 28467-B
    GM1255963Courtesy of GENERAL MOTORS CORP.
  25. Remove the J 28467-B  (1).
  26. Install the air filter housing and breather tube.
  27. Install and connect the battery.
  28. IMPORTANT: After installing the transmission assembly, the shift adapts must be reset. Reset the shift adapts using the scan tool. Go to Trans Adaptives Reset under Special Functions on the scan tool.
  29. Add the transaxle fluid. Refer to Transmission Fluid Level Inspection .
