Installation Procedure

    CAUTION: Refer to Fastener Notice in Cautions and Notices.

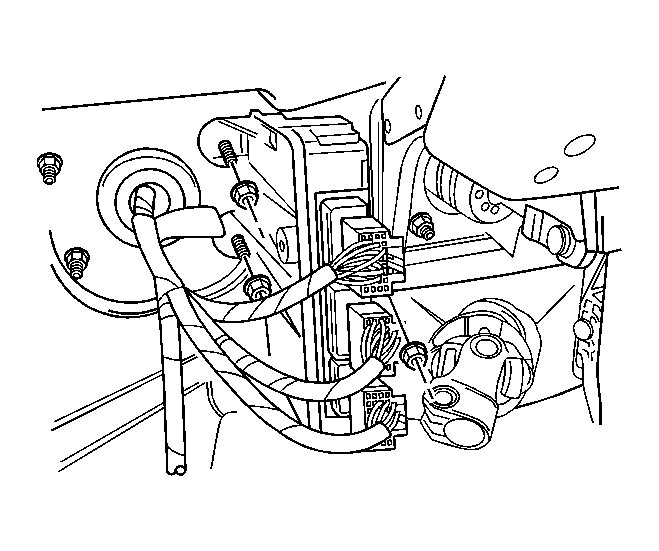

    Fig 1: View Of TCM And Mounting Nuts
    GM1255923Courtesy of GENERAL MOTORS CORP.
  1. Install the TCM and the nuts.

    Tighten:  Tighten the TCM mounting nuts to 23 N.m (17 lb ft)  .

  2. Connect the wiring connectors.
  3. Connect the negative battery cable.
