Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the park/neutral start switch.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in)  .

    2. IMPORTANT: When installing the park/neutral switch, use the special service tools. Position the shift lever in NEUTRAL.
    Fig 1: View Of DT 46473
    GM1255927Courtesy of GENERAL MOTORS CORP.
  2. Use the DT 46473  (1) to adjust the park/neutral switch. See Special Tools .
    3. Fig 2: Identifying Shift Lever And Nut
    GM1255928Courtesy of GENERAL MOTORS CORP.
  3. Install the shift lever and the shift lever nut.

    Tighten:  Tighten the nut to 10 N.m (89 lb in)  .

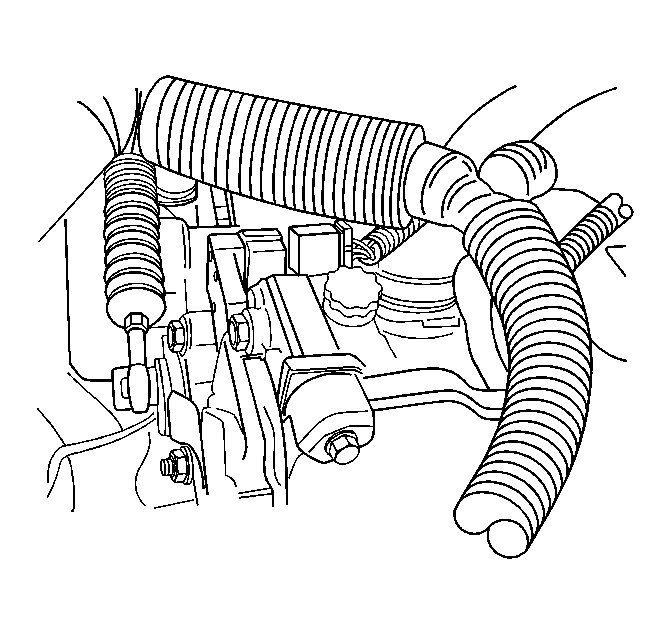

    4. Fig 3: View Of Park/Neutral Position Switch Electrical Connector
    GM1255924Courtesy of GENERAL MOTORS CORP.
  4. Connect the shift control cable and the retaining clip.
  5. Connect the park/neutral position switch electrical connector.
  6. Install the air filter housing.
  7. Connect the negative battery cable.
