Removal Procedure

    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the floor console. Refer to Console Replacement - Front Floor in Interior Trim.

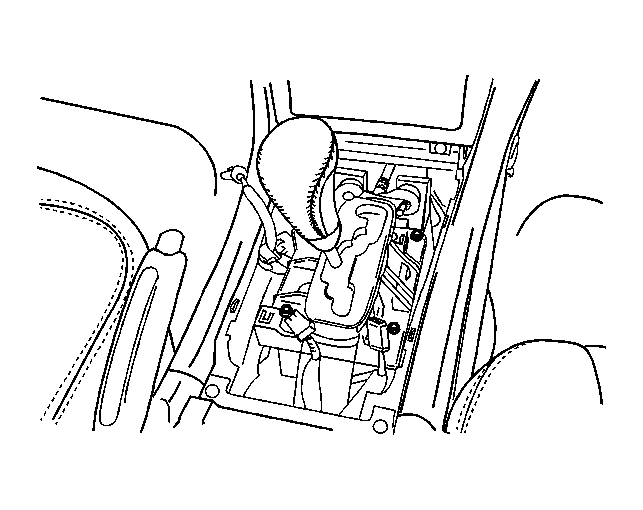

    3. Fig 1: View Of Gearshift Electrical Switch Connector
    GM1255917Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical switch connector.

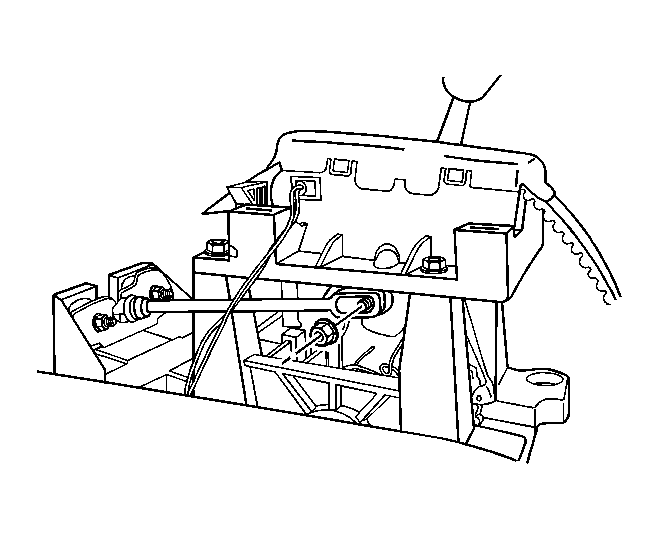

    4. Fig 2: View Of Shift Control Assembly And Cable
    GM1255918Courtesy of GENERAL MOTORS CORP.
  4. Remove the shift control cable adjuster pinch nut.
  5. Loosen the nut from the shift control cable mounting bracket on the shift control assembly.
  6. Remove the cable from the bracket.

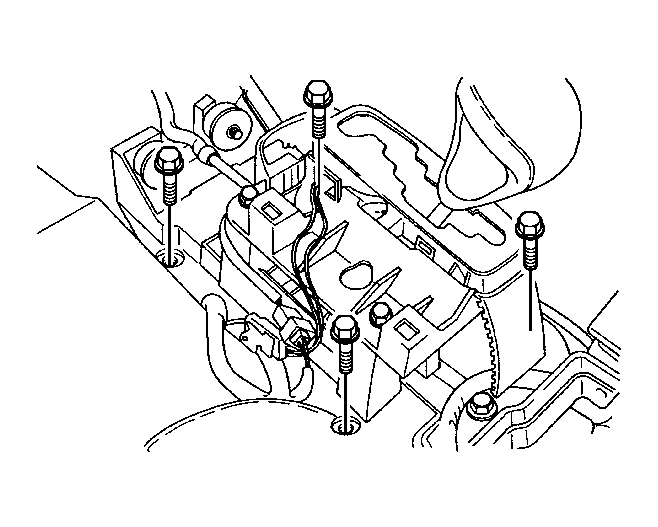

    7. Fig 3: Identifying Gearshift Housing And Bolts
    GM1255919Courtesy of GENERAL MOTORS CORP.
  7. Remove the 4 bolts holding the shift control assembly to the floor panel.
  8. Remove the shift control assembly.
