Installation Procedure

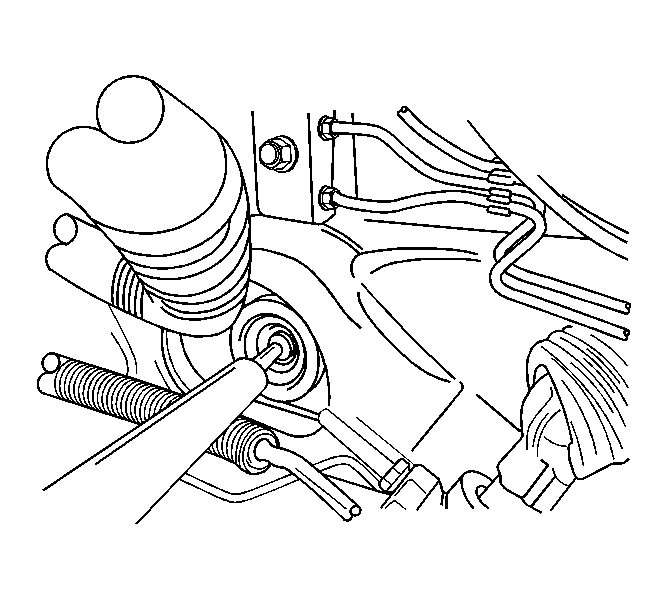

    Fig 1: View Of Shift Control Cable And Rubber Grommet
    GM1255920Courtesy of GENERAL MOTORS CORP.
  1. Install the shift control cable into the cowl of the vehicle.
  2. Install the shift control cable onto the transaxle mount.
    3. Fig 2: View Of Shift Control Assembly And Cable
    GM1255918Courtesy of GENERAL MOTORS CORP.
  3. Install the shift control cable onto the shift control assembly.
  4. Tighten the nut on the cable bracket.
    5. NOTE: Refer to Fastener Notice .
  5. Install the shift control cable adjuster pinch nut.

    Tighten:  Tighten the nut to 8 N.m (71 lb in)  .

    6. Fig 3: Identifying Shift Control Cable And Clip
    GM1255921Courtesy of GENERAL MOTORS CORP.
  6. Install the clip to the shift control cable at the transaxle mount connection.
  7. Install the clip to the select lever connection on the transaxle case.
  8. Adjust the shift control cable. Refer to Automatic Transmission Range Selector Cable Adjustment .
  9. Install the battery.
