Removal Procedure

    Fig 1: View Of ETC Connector
    GM1679505Courtesy of GENERAL MOTORS CORP.
  1. Turn the ignition switch to the off position.
  2. Disconnect the electronic throttle control (ETC) connector from the accelerator pedal.

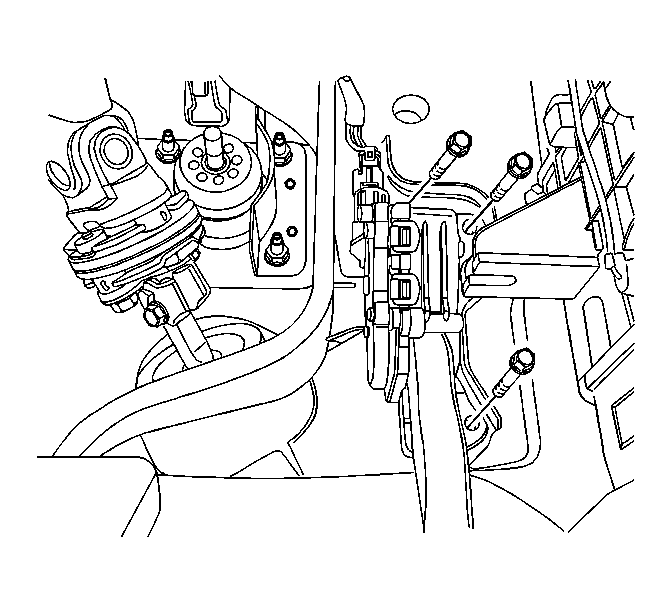

    3. Fig 2: Locating Accelerator Pedal Retaining Bolts
    GM1679506Courtesy of GENERAL MOTORS CORP.
  3. Remove the 3 accelerator pedal retaining bolts.
  4. Remove the accelerator pedal.
