Cruise Control Cable Adjustment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 GMC Savana Special, 2007 GMC Savana Camper Special, 2007 GMC Savana, 2007 Chevrolet RV Cutaway, and 2007 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
The cruise control cable lash should be automatically set within 0.0-4.0 mm (0.0-0.2 in) when the cable is installed. If an adjustment is necessary, use the following procedure:
- Twist the cruise control cable connector screw end clockwise or counterclockwise until the lash is within specifications.
- Allow the throttle lever to return to the idle position.

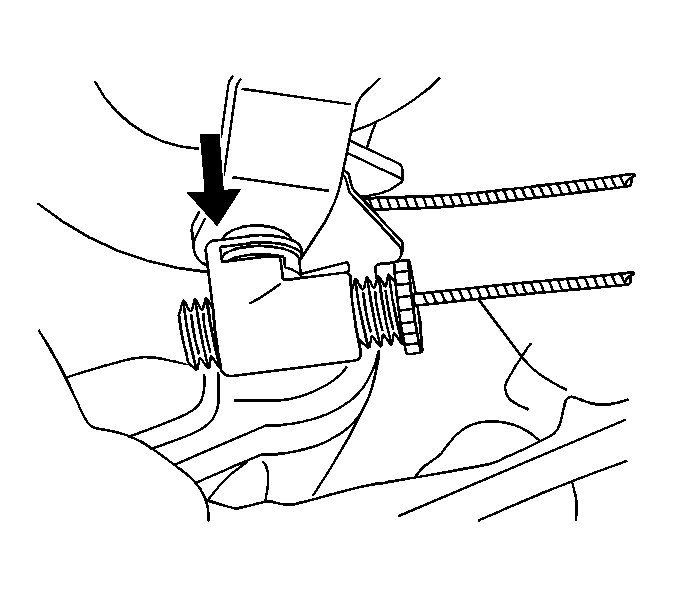

Fig 1: Twisting Cruise Control Cable Connector Screw End Clockwise Or Counterclockwise To Specifications
