Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 GMC Savana Special, 2007 GMC Savana Camper Special, 2007 GMC Savana, 2007 Chevrolet RV Cutaway, and 2007 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

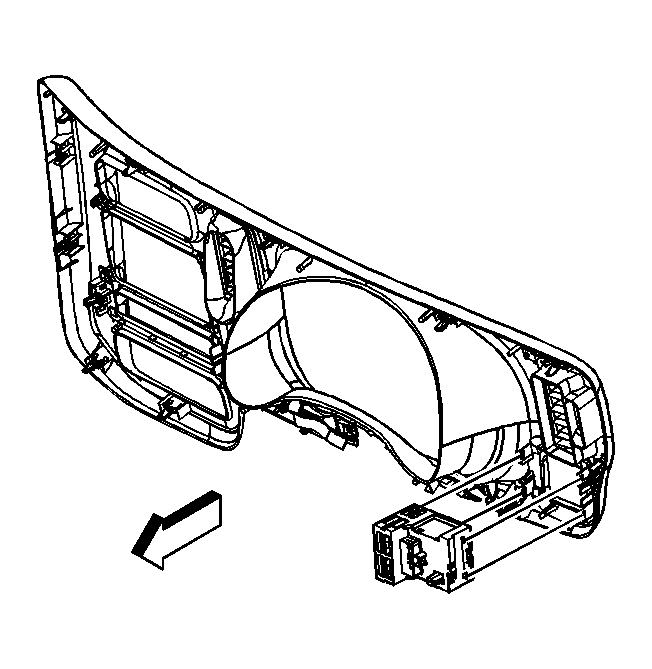

    Fig 1: Headlamp/Fuel Gauge Select Switch Assembly
    GM823044Courtesy of GENERAL MOTORS CORP.
  1. Install the headlamp switch to the vehicle.
  2. Connect the headlamp switch to the instrument panel cluster trim plate by pushing on the switch in order to engage the retainers on the instrument panel cluster trim plate.
  3. Connect the electrical connector to the headlamp switch.
  4. Reposition the left side of the I/P cluster bezel to the fully installed position.
  5. Install the left side knee bolster bracket and bolster. Refer to Driver Knee Bolster Bracket Replacement .
