Outside Rearview Mirror Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

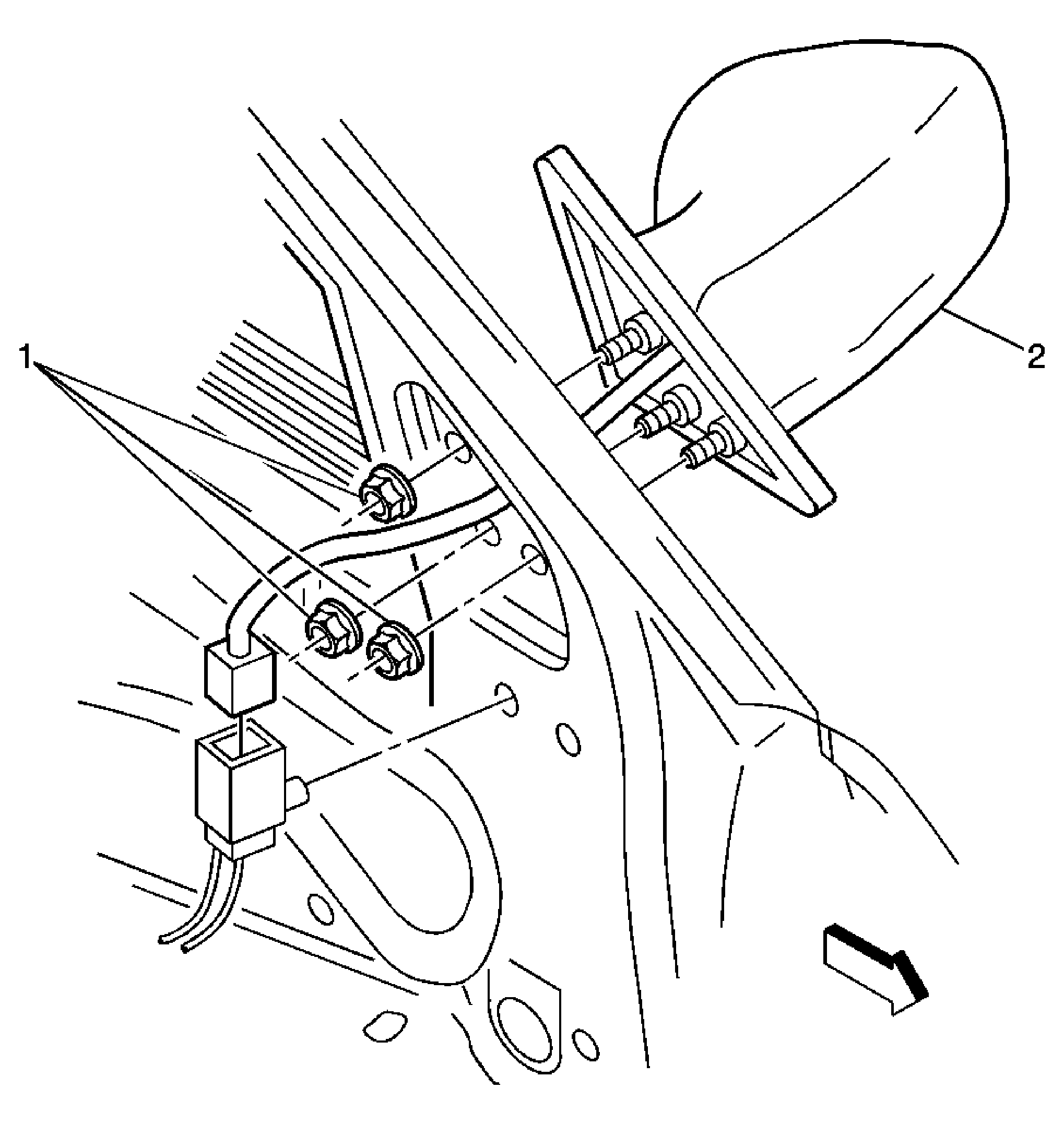

Fig 1: View Of Outside Mirror & Connectors

Courtesy of GENERAL MOTORS CORP.

Mirror Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedures: Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement - Driver Side orFront Side Door Trim Panel Replacement - Passenger Side .
1	Outside Rearview Mirror Nuts (Qty: 3) Tip: Disconnect the electrical connector. Tighten: 4 N.m (35 lb in)
2	Outside Rearview Mirror
