Removal Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to SIR Disabling and Enabling .

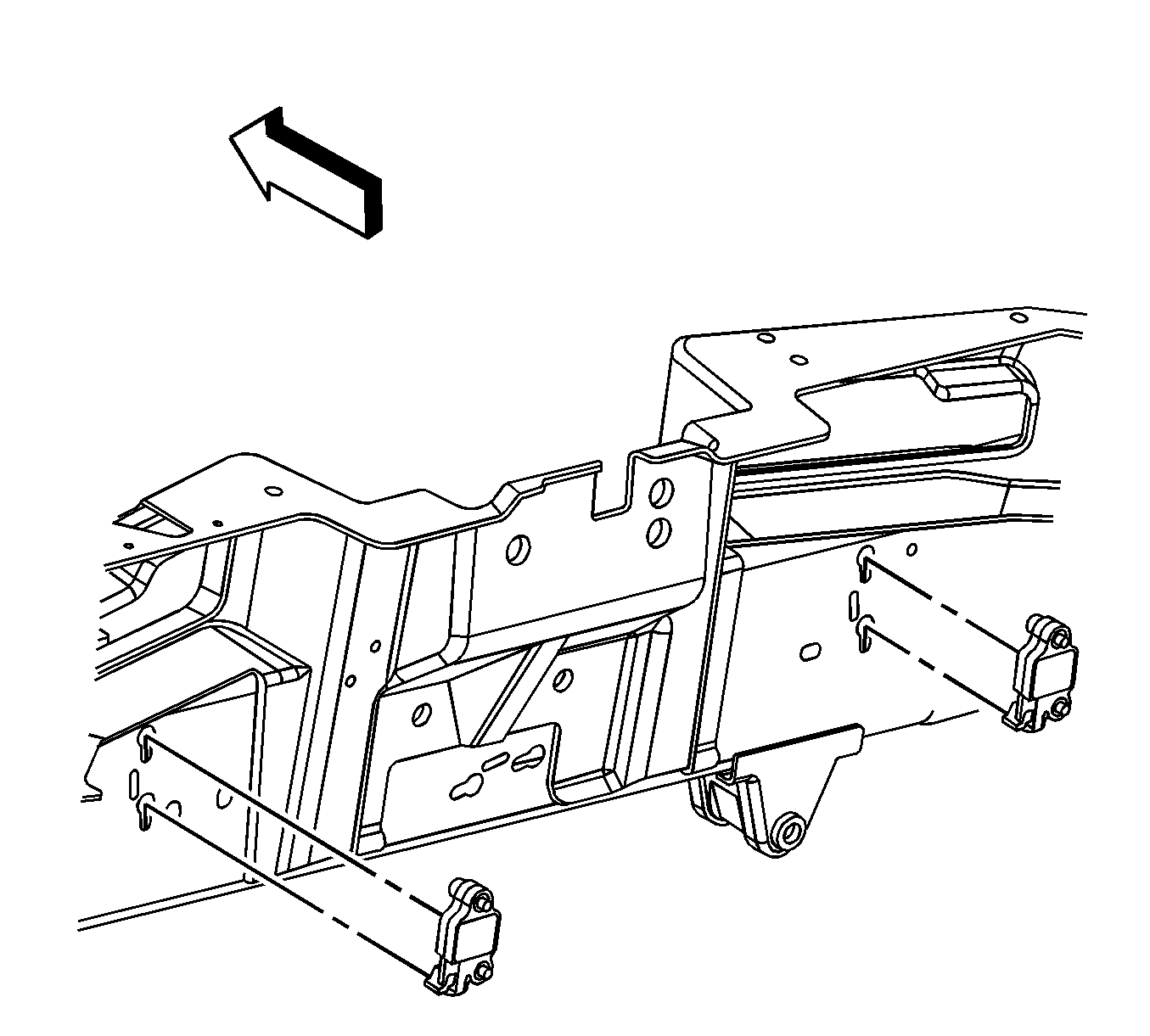

    2. Fig 1: Inflatable Restraint Front End Sensor & Retaining Bolts
    GM1226200Courtesy of GENERAL MOTORS CORP.
  2. Remove the retaining bolts from the inflatable restraint front end sensor.
  3. Remove the sensor from the vehicle.
