Tail Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

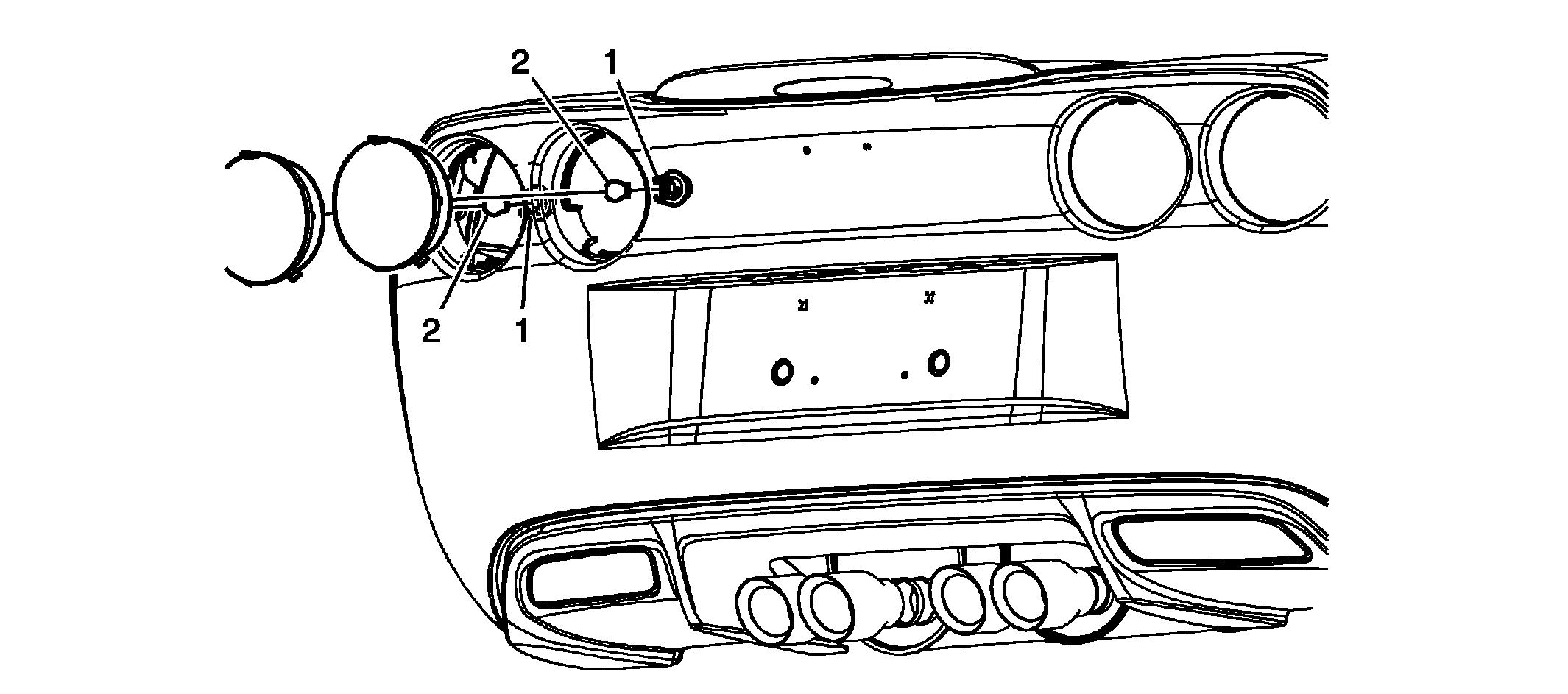

Fig 1: View Of Rear Tail Lamp Bulbs & Harness Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear tail lamp. Refer to Tail Lamp Replacement .
1	Rear Lamp Harness Electrical Connector
2	Rear Tail Lamp Bulbs Tip: Pull the bulb straight from the socket.
