Corvette Base, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Exhaust System
>>
Schematic and Routing Diagrams
>>
Exhaust System Schematics
Exhaust System Schematics

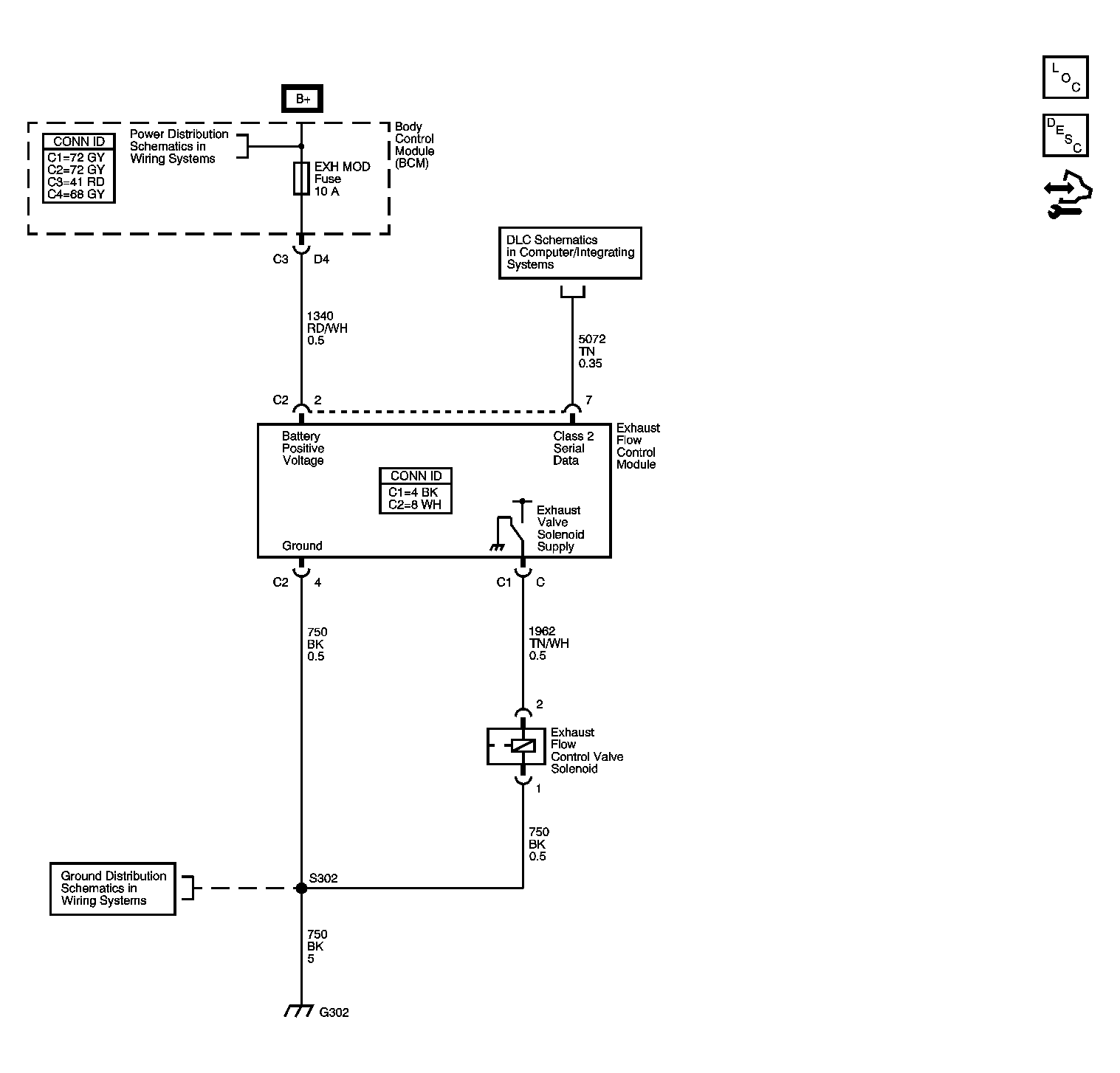

Fig 1: Exhaust System Schematics - Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
