Installation Procedure

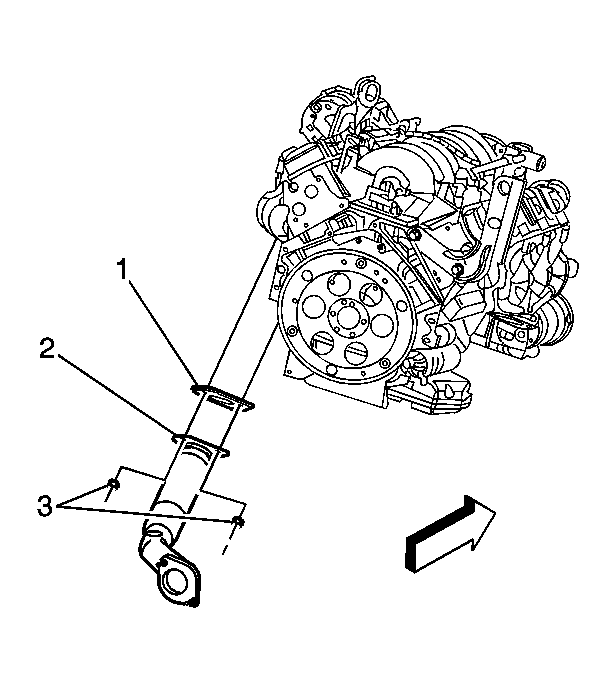

Fig 1: Installing The Mounting Nuts (3) And Gasket (1) And Catalytic Convertor (2) From The Vehicle

Courtesy of GENERAL MOTORS CORP.

Install the NEW exhaust seal. Refer to Exhaust Seal Replacement .
Install the NEW exhaust gasket (1) on the catalytic convertor (2).
Position the catalytic convertor (2) on the exhaust manifold.
NOTE: Refer to Fastener Notice .
Install the mounting nuts (3) for the catalytic convertor (2).
Tighten: Tighten the mounting nuts to 20 N.m (15 lb ft).
Install the oxygen sensors in the left catalytic convertor.
- For Bank 1, sensor 1, refer to Heated Oxygen Sensor (HO2S) Replacement Bank 1 Sensor 1 for the 6.0L engine.
- For Bank 1, sensor 1, refer to Heated Oxygen Sensor (HO2S) Replacement Bank 1 Sensor 1 for the 7.0L engine.
- For Bank 1, sensor 2, refer to Heated Oxygen Sensor (HO2S) Replacement Bank 1 Sensor 2 for the 6.0L engine.
- For Bank 1, sensor 2, refer to Heated Oxygen Sensor (HO2S) Replacement Bank 1 Sensor 2 for the 7.0L engine.
Install the intermediate pipes. Refer to Intermediate Pipe Replacement .
Lower the vehicle.
