Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component	Location

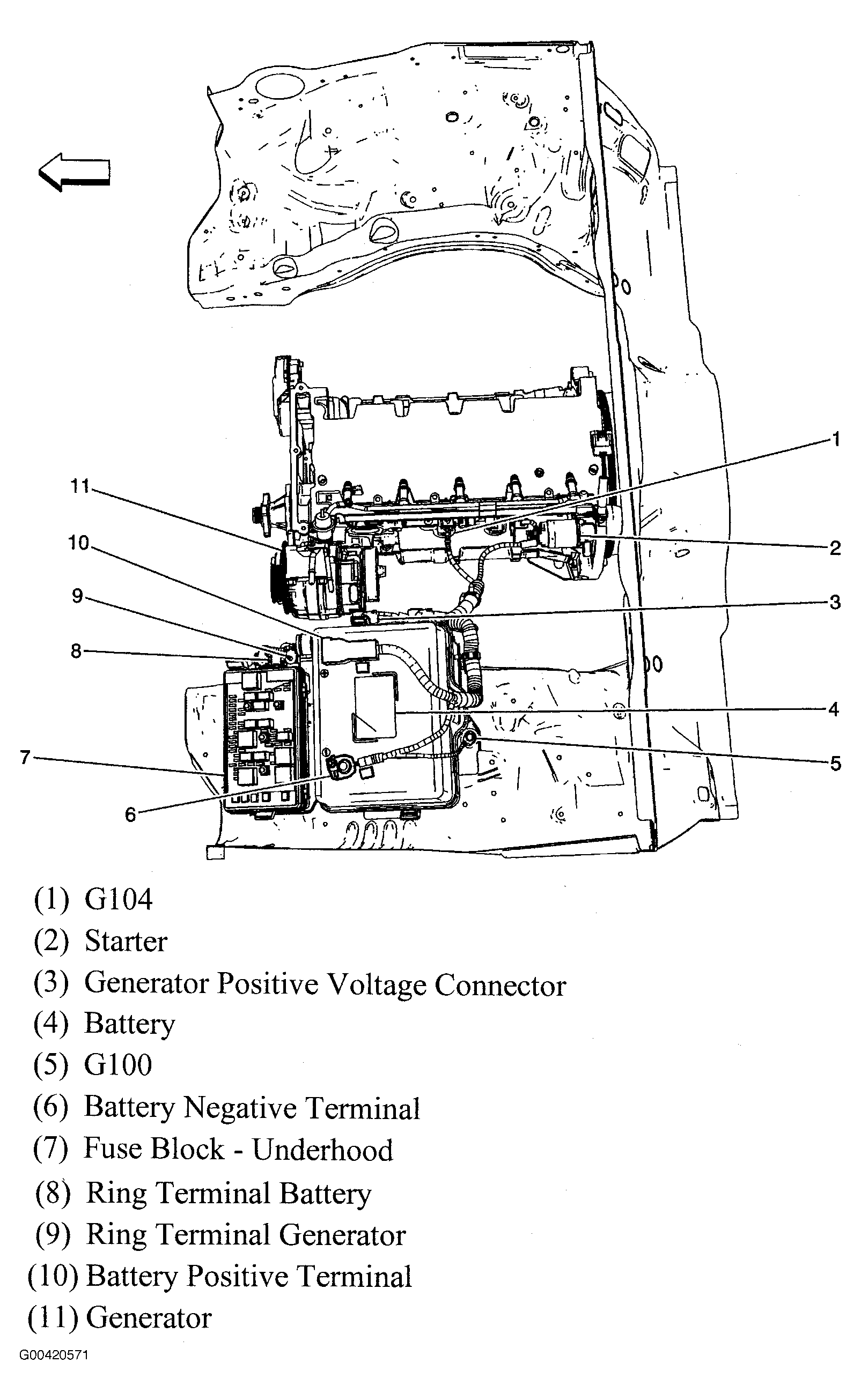

Underhood Fuse Block	On left front side of engine compartment. See Figure.
