Rear Engine Component Views

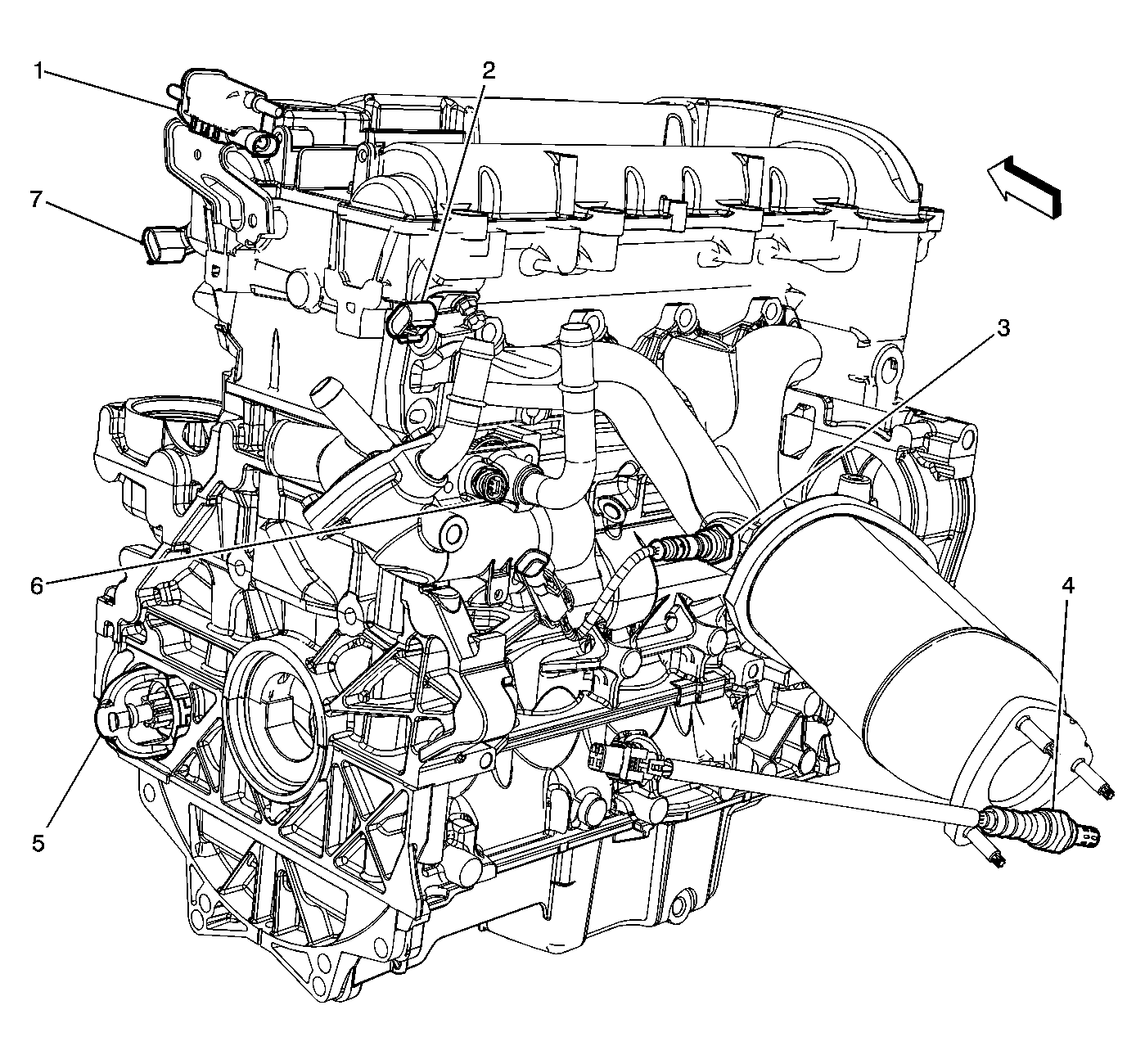

Fig 1: Rear Engine Component Views
GM1594063Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2 Camshaft Position (CMP) Sensor - Exhaust
3 Heated Oxygen Sensor (HO2S) 1
4 Heated Oxygen Sensor (HO2S) 2
5 Starter
6 Engine Coolant Temperature (ECT) Sensor
7 Camshaft Position (CMP) Sensor - Intake
