Removal Procedure

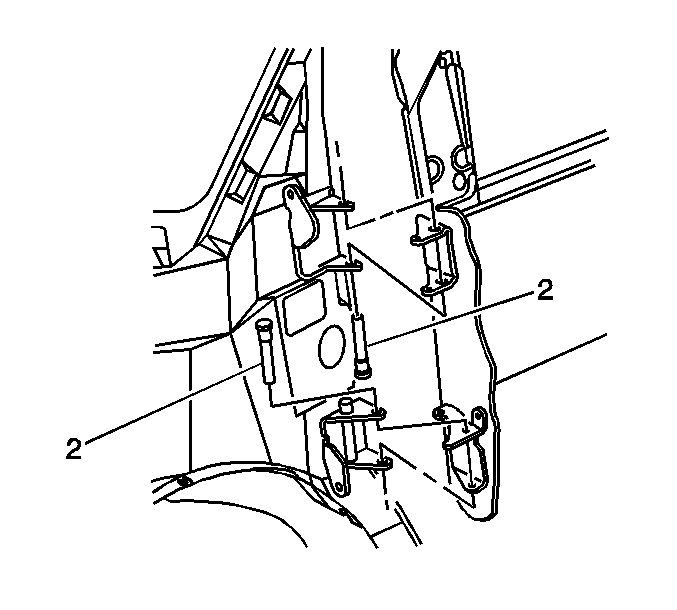

    Fig 1: Front Door Hinge Pins
    GM333955Courtesy of GENERAL MOTORS CORP.
  1. Remove the Trim Panel. Refer to Trim Replacement - Hinge Pillar in Interior Trim.
  2. Disconnect the electrical connectors in the hinge pillar for the door wire harness.
  3. Push the rubber conduit out from the hinge pillar in order to remove the rubber conduit from the hinge pillar.
  4. Remove the wire harness from the hinge pillar.
  5. Remove the check link from the hinge pillar. Refer to Door Check Link Replacement - Front .
  6. Remove the hinge pins (2) from the door. Refer to Door Hinge Pin and Bushing Replacement - Front Door .
  7. With an assistant, remove the door from the vehicle.
