Automatic Transmission Shift Lock Control Schematics

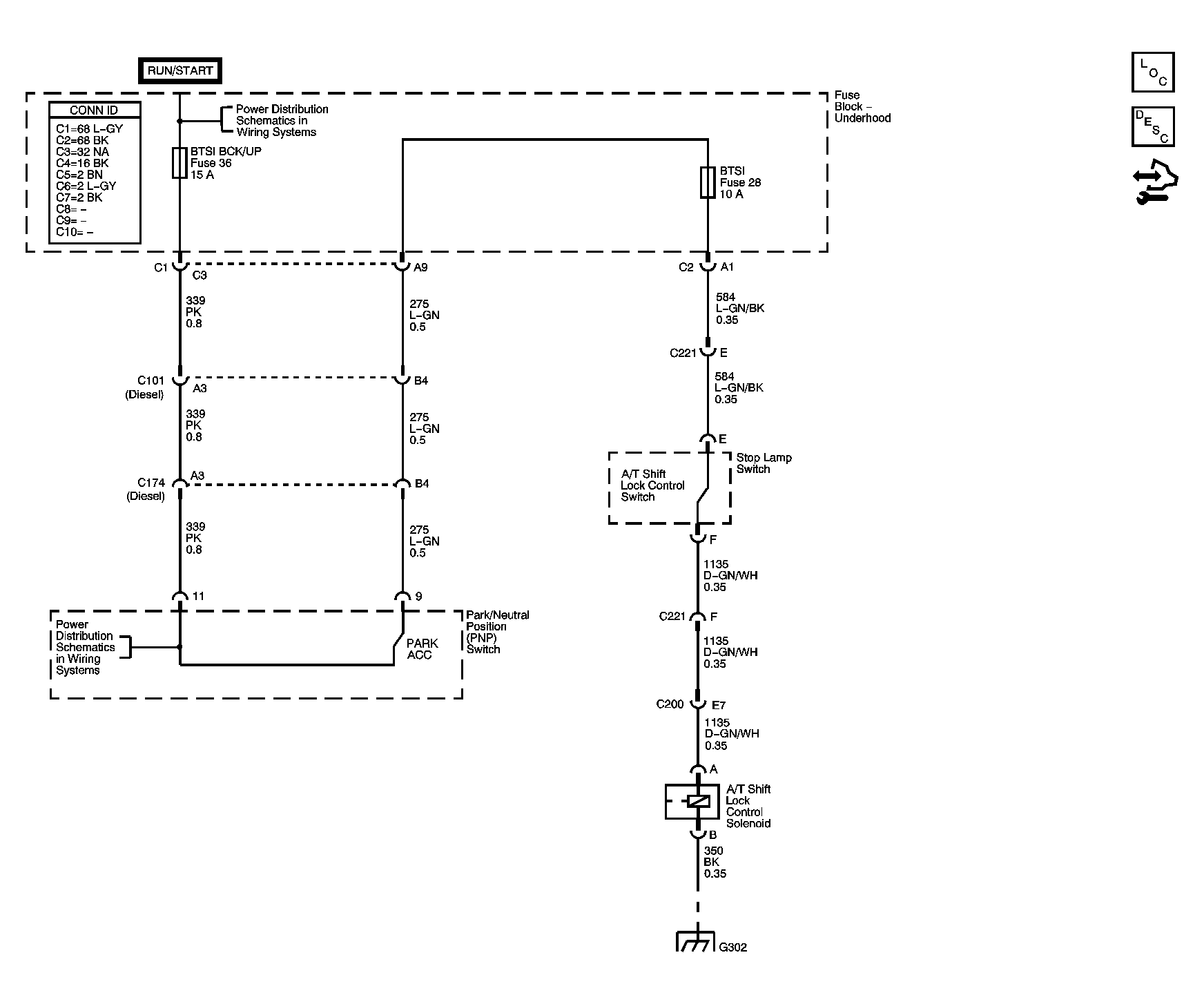

Fig 1: A/T Shift Lock Control Schematic

GM1565218

Courtesy of GENERAL MOTORS CORP.
