Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|
| SP200 | In dash wiring harness, 10 cm from underhood pass-through grommet breakout. See Figure. |

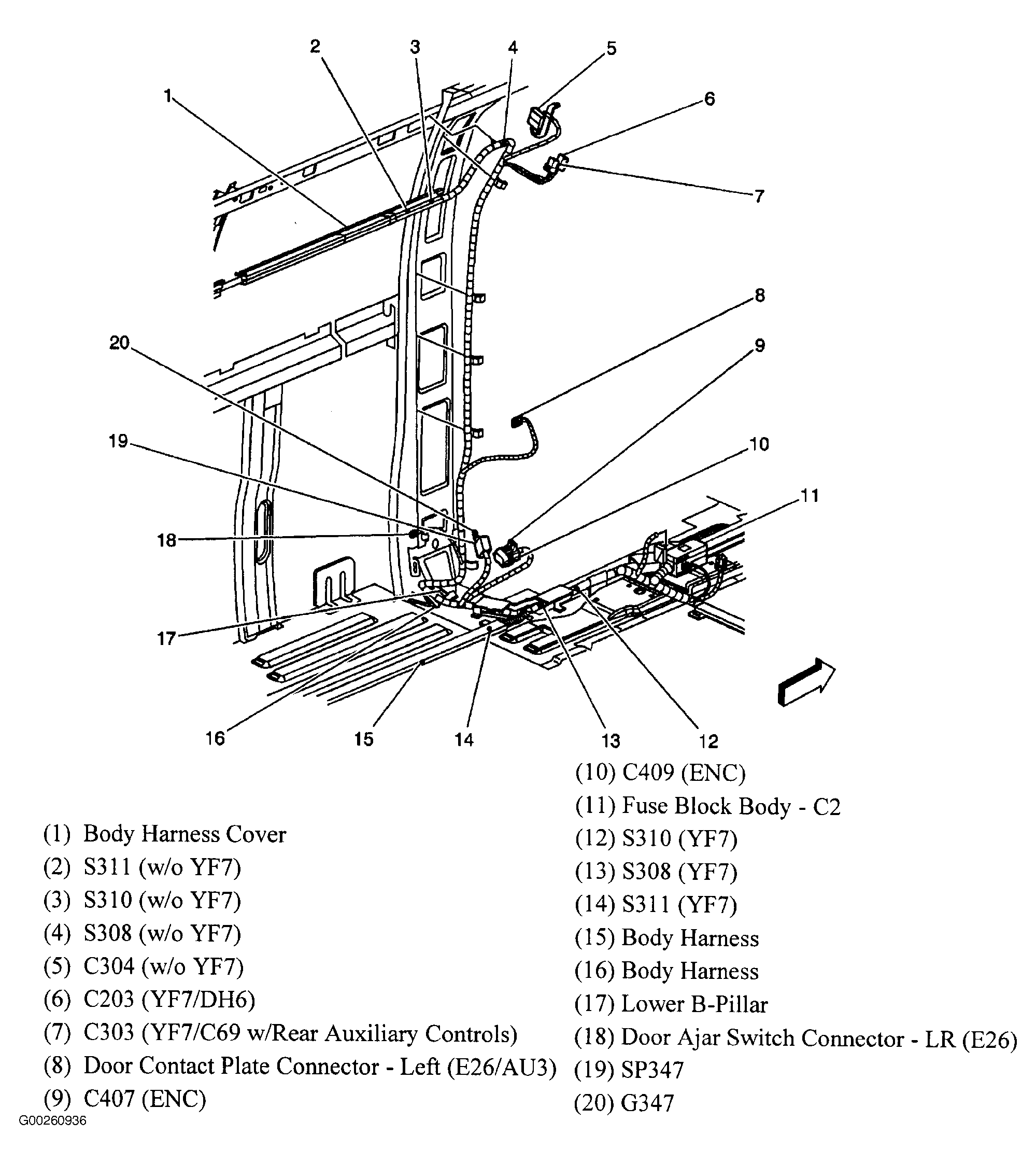

| SP347 | In body harness, 19 cm from C308 breakout. See Figure. |

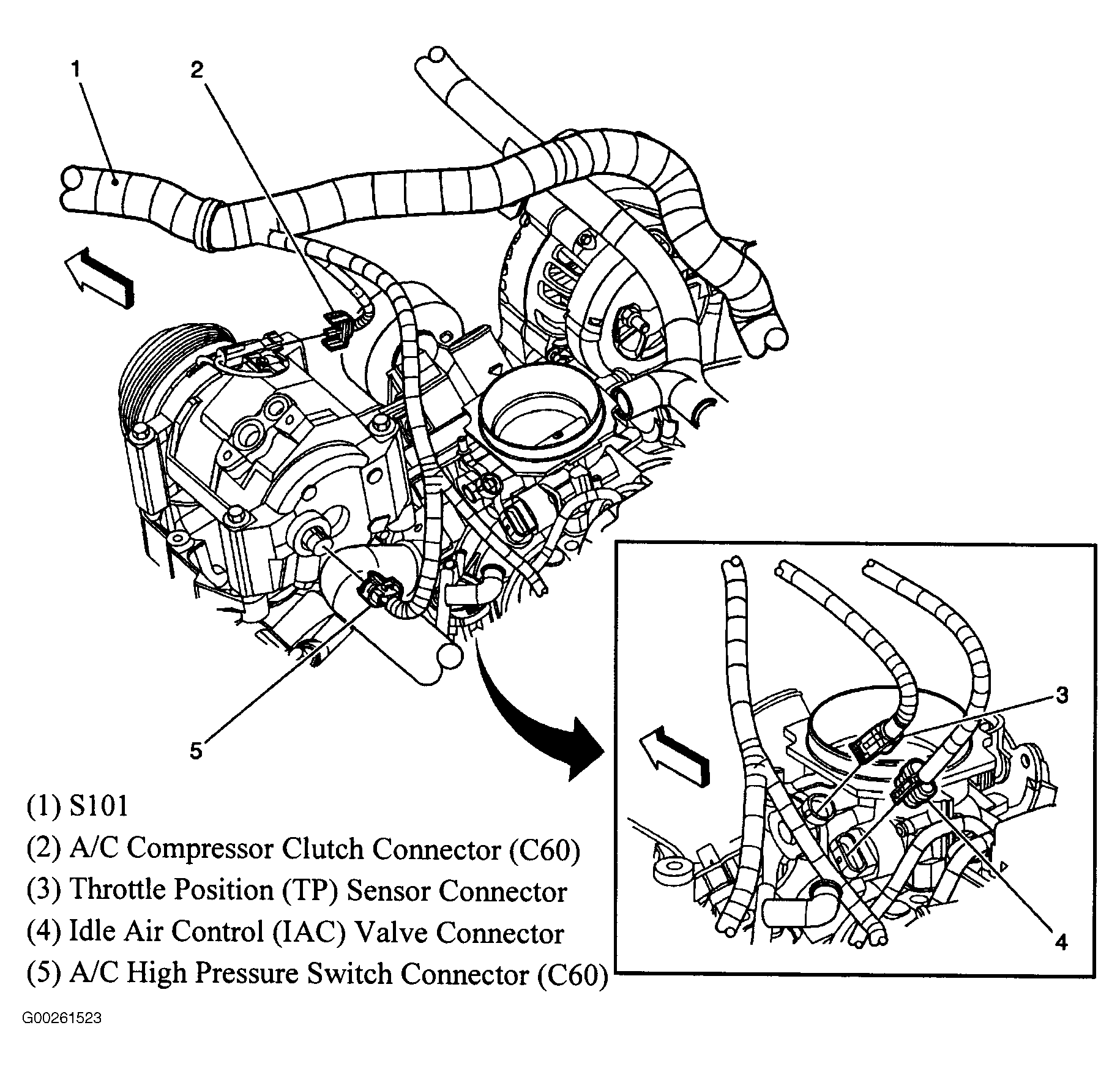

| S101 (4.3L VIN X) | In engine harness, 43 cm from underhood lamp breakout. See Figure. |
| S101 (4.8L VIN V, 5.3L VIN T & 6.0L VIN U) | In engine harness, 4 cm from knock sensor breakout. See Figure. |

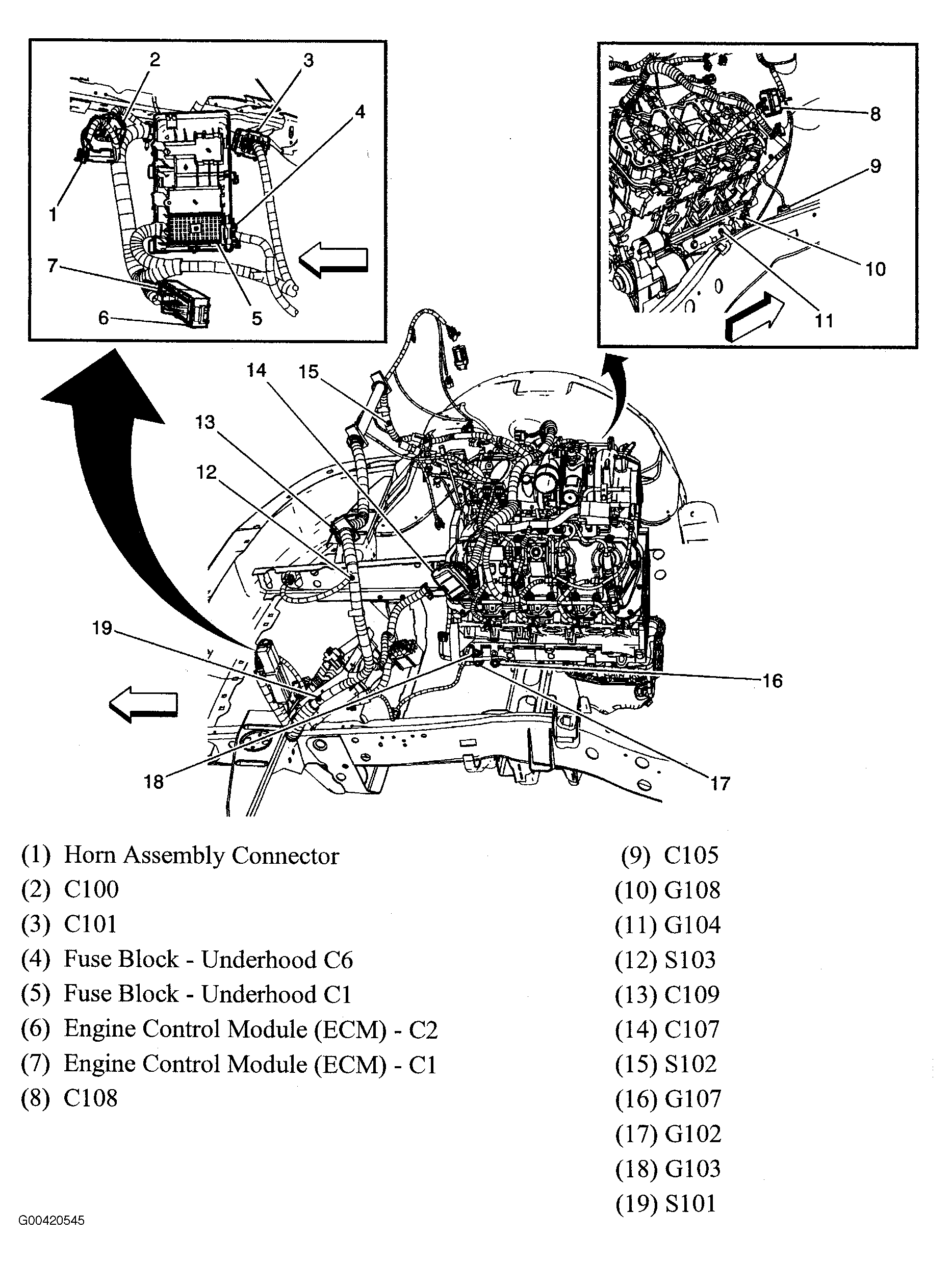

| S101 (6.6L VIN W) | In the engine chassis harness, approximately 10 cm (3.93 in) from the ECM breakout. See Figure. |
| S102 (4.3L VIN X) | In engine harness, 6 cm from generator connector breakout. See Figure. |
| S102 (4.8L VIN V, 5.3L VIN T & 6.0L VIN U) | In engine harness, 8 cm from knock sensor breakout. See Figure. |
| S102 (6.6L VIN W) | In the engine chassis harness, approximately 5 cm (1.96 in) from the MAF sensor breakout. See Figure. |
| S103 (6.6L VIN W) | In the engine chassis harness, approximately 10 cm (3.93 in) from the underhood lamp breakout. See Figure. |

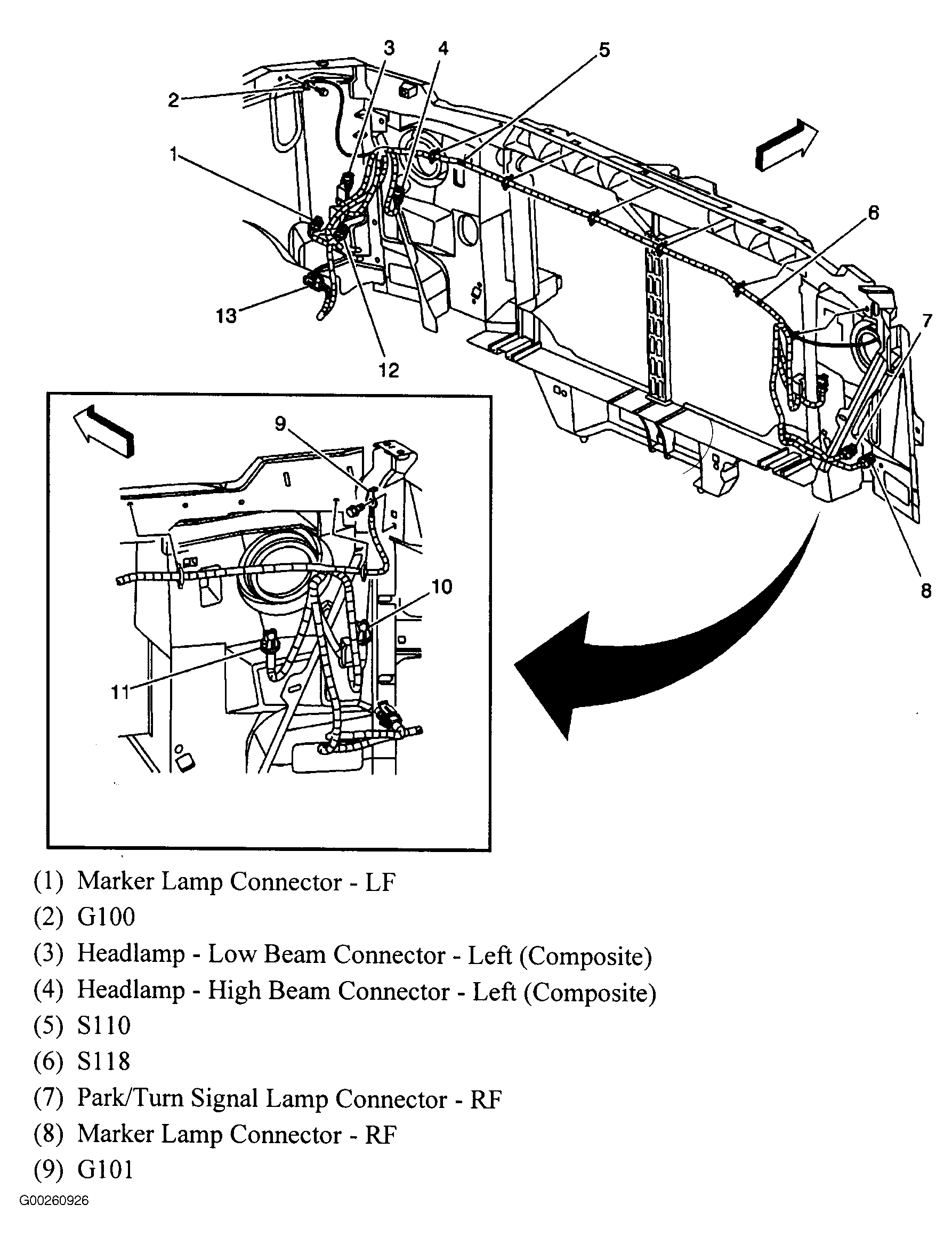

| S110 | In forward lamp harness, 12 cm from left headlamp connector breakout. See Figure. |
| S118 | In forward lamp harness, 13 cm from right headlamp connector breakout. See Figure. |
| S135 | Inside transmission. |
| S182 | In odd ignition/coil module jumper harness, on top left side of engine. |
| S183 | In even ignition/coil module jumper harness, on top right side of engine. |
| S184 | In odd ignition/coil module jumper harness, on top left side of engine. |
| S185 | In even ignition/coil module jumper harness, on top right side of engine. |
| S187 | In odd ignition/coil module jumper harness, on top left side of engine. |
| S188 | In even ignition/coil module jumper harness, on top right side of engine. |
| S204 | In vanity mirror lamp harness, 13 cm from C203. |
| S231 | In dash harness, 23 cm from C200. |

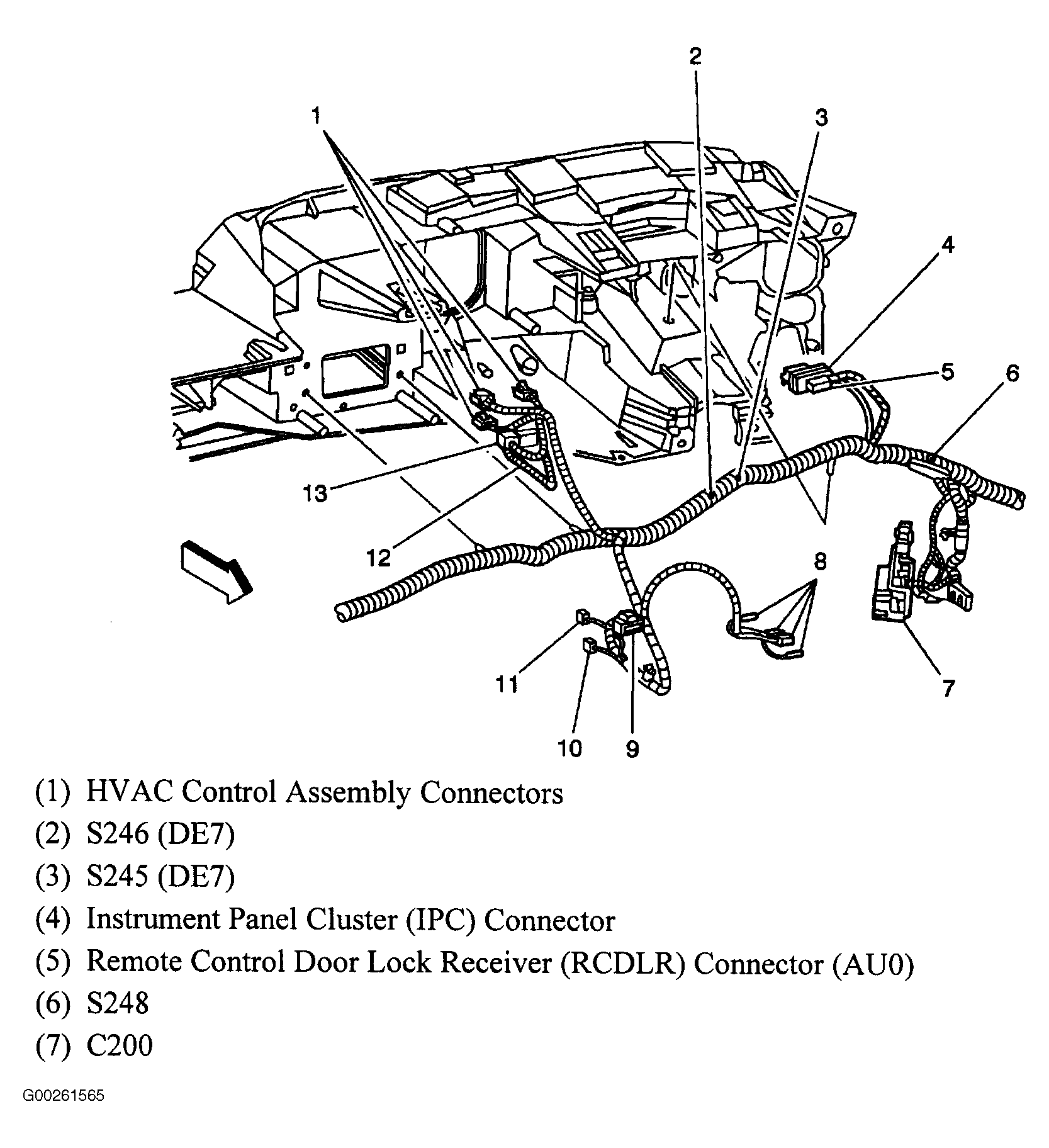

| S245 (DE7) | In dash harness, 13 cm from radio & HVAC control assembly breakout. See Figure. |
| S246 (DE7) | In dash harness, 6 cm from radio & HVAC control assembly breakout. See Figure. |
| S247 | In dash harness, 36 cm from C200 breakout. |
| S248 | In dash harness, 8 cm from C200 breakout. See Figure. |
| S249 | In dash harness, 5 cm from inflatable restraint dash module connector breakout. See Figure. |
| S250 | In dash harness, 5 cm from air temperature actuator connector breakout. See Figure. |
| S264 | In steering column harness, 29 cm from C200. |
| S300 | In PRP/UF2 harness, 42 cm from left front side front access panel actuator. See Figure. |
| S301 (Cutaway) | In chassis harness, 87 cm from EBCM connector breakout. |

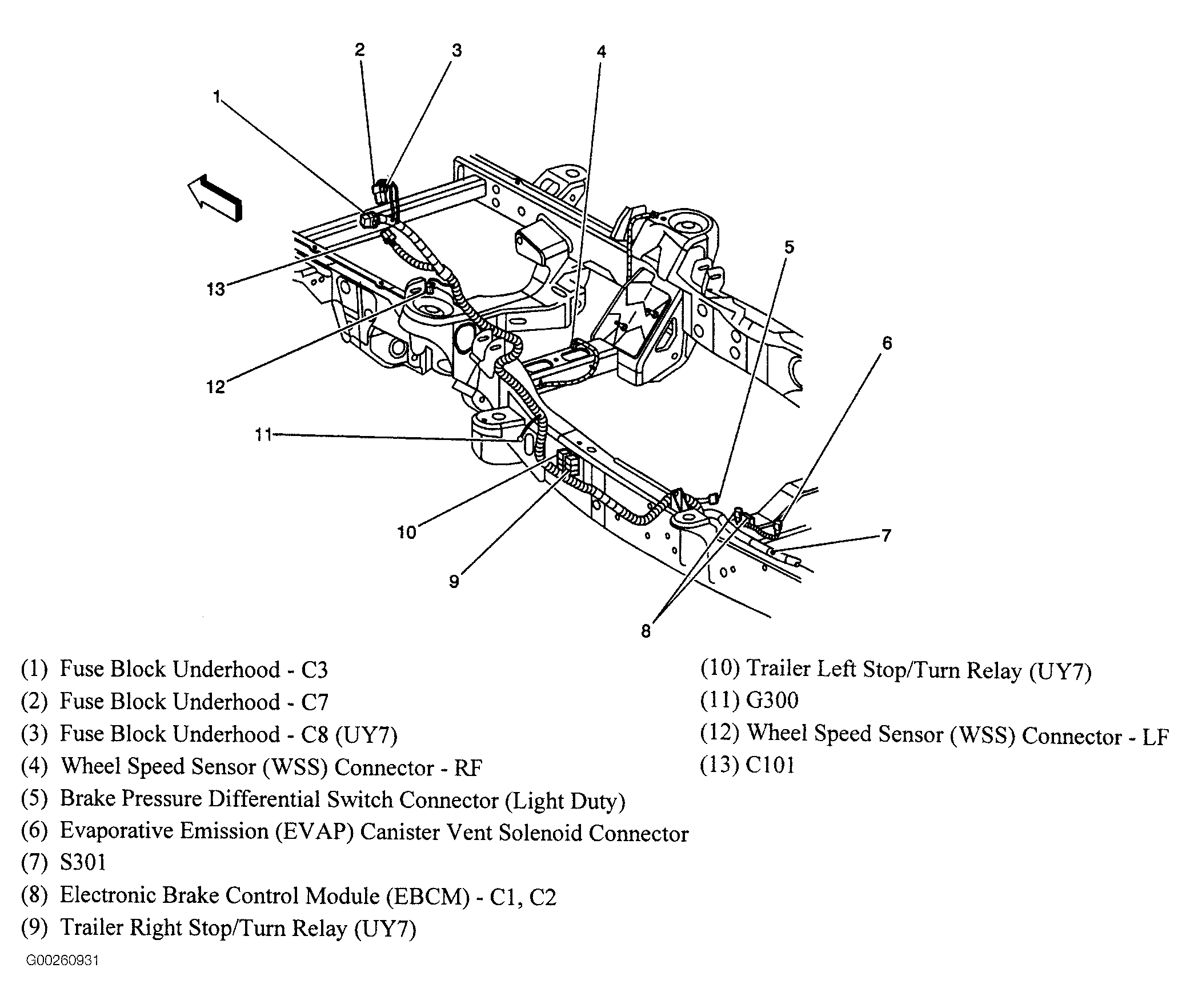

| S301 (Passenger/Cargo) | In chassis harness, 44 cm from EBCM connector breakout. See Figure. |
| S302 (UF2) | In PRP/UF2 harness, 15 cm from rear fuse block. See Figure. |
| S303 | In PRP/UF2 harness, 8 cm from rear fuse block. See Figure. |

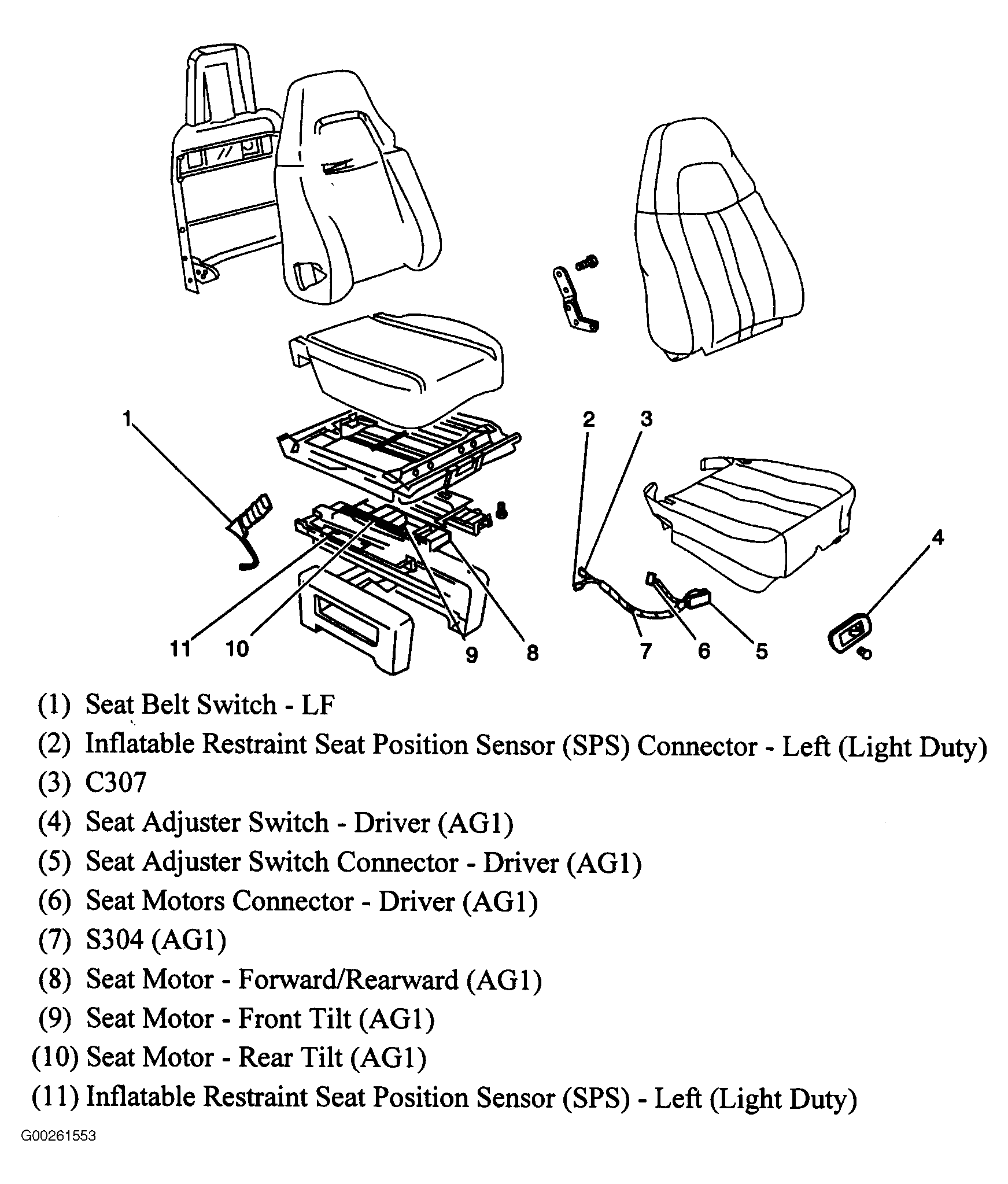

| S304 (AG1) | In driver seat harness, 11 cm from driver seat adjuster switch connector breakout. See Figure. |

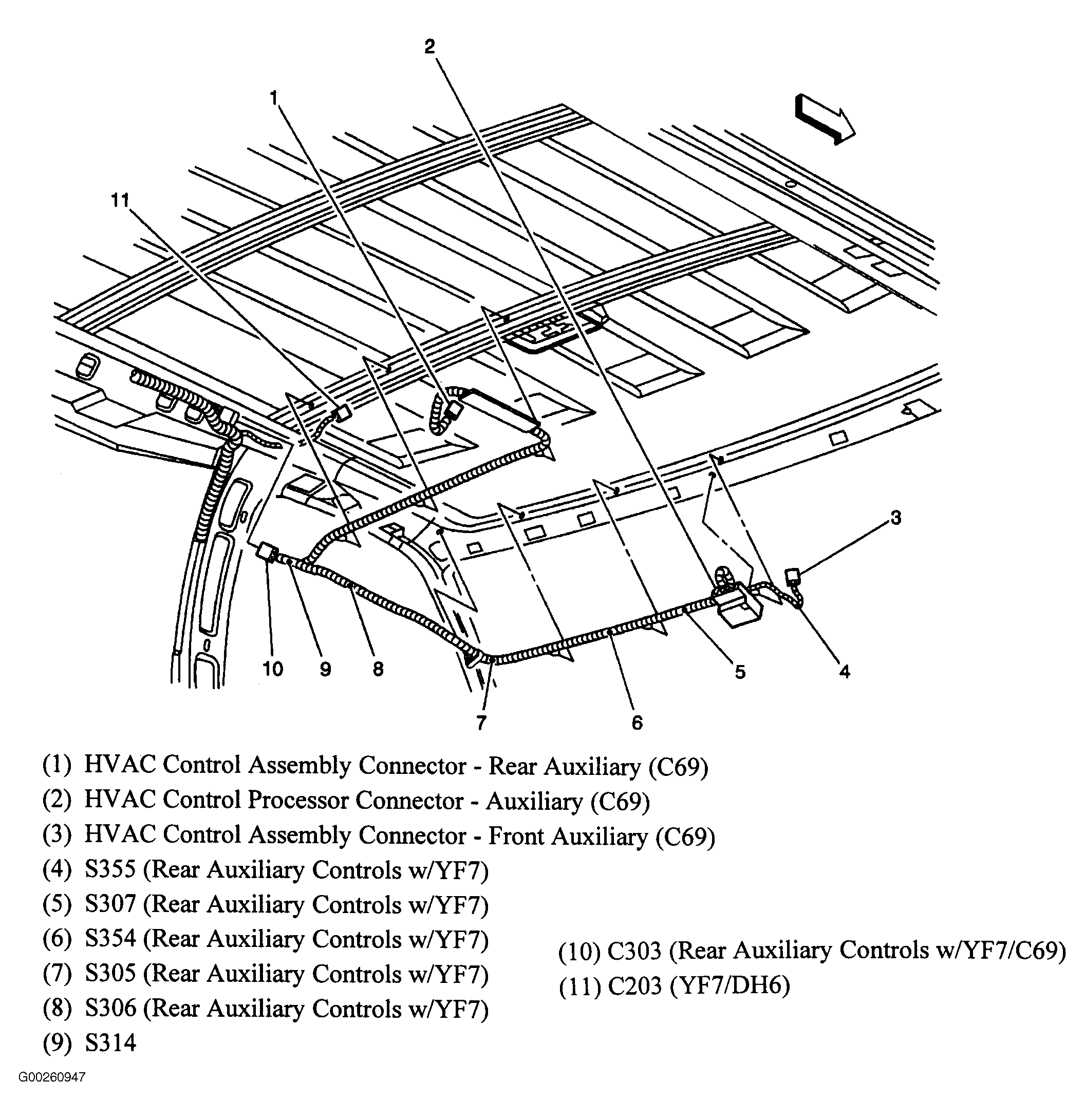

| S305 (Rear Auxiliary Controls W/YF7) | In upfitter HVAC control harness, 39 cm from C303 breakout. See Figure. |
| S305 (W/O RV Upfitter Option) | In front headliner harness, 31 cm from C304 breakout. |
| S306 (Rear Auxiliary Controls W/YF7) | In upfitter HVAC control harness, 19 cm from C303 breakout. See Figure. |
| S306 (W/O RV Upfitter Option) | In front headliner harness, 42 cm from C304 breakout. |
| S307 (Rear Auxiliary Controls W/YF7) | In upfitter HVAC control harness, 88 cm from C303 breakout. See Figure. |
| S307 (W/O RV Upfitter Option) | In front headliner harness, 52 cm from C304 breakout. |
| S308 (W/O RV Upfitter Option) | In body harness, 5 cm from C304 breakout. See Figure. |
| S308 (W/RV Upfitter Option) | In body harness, 22 cm from C308 breakout. See Figure. |
| S309 | In PRP/UF2 harness, between left side front access panel actuators. See Figure. |
| S310 (W/O RV Upfitter Option) | In body harness, 31 cm from C304 breakout. See Figure. |
| S310 (W/RV Upfitter Option) | In body harness, 32 cm from C308 breakout. See Figure. |
| S311 (W/O RV Upfitter Option) | In body harness, 41 cm from C304 breakout. See Figure. |
| S311 (W/RV Upfitter Option) | In body harness, 22 cm from C308 breakout. See Figure. |
| S312 | In PRP/UF2 harness, 7 cm from breakout for rear fuse block. |

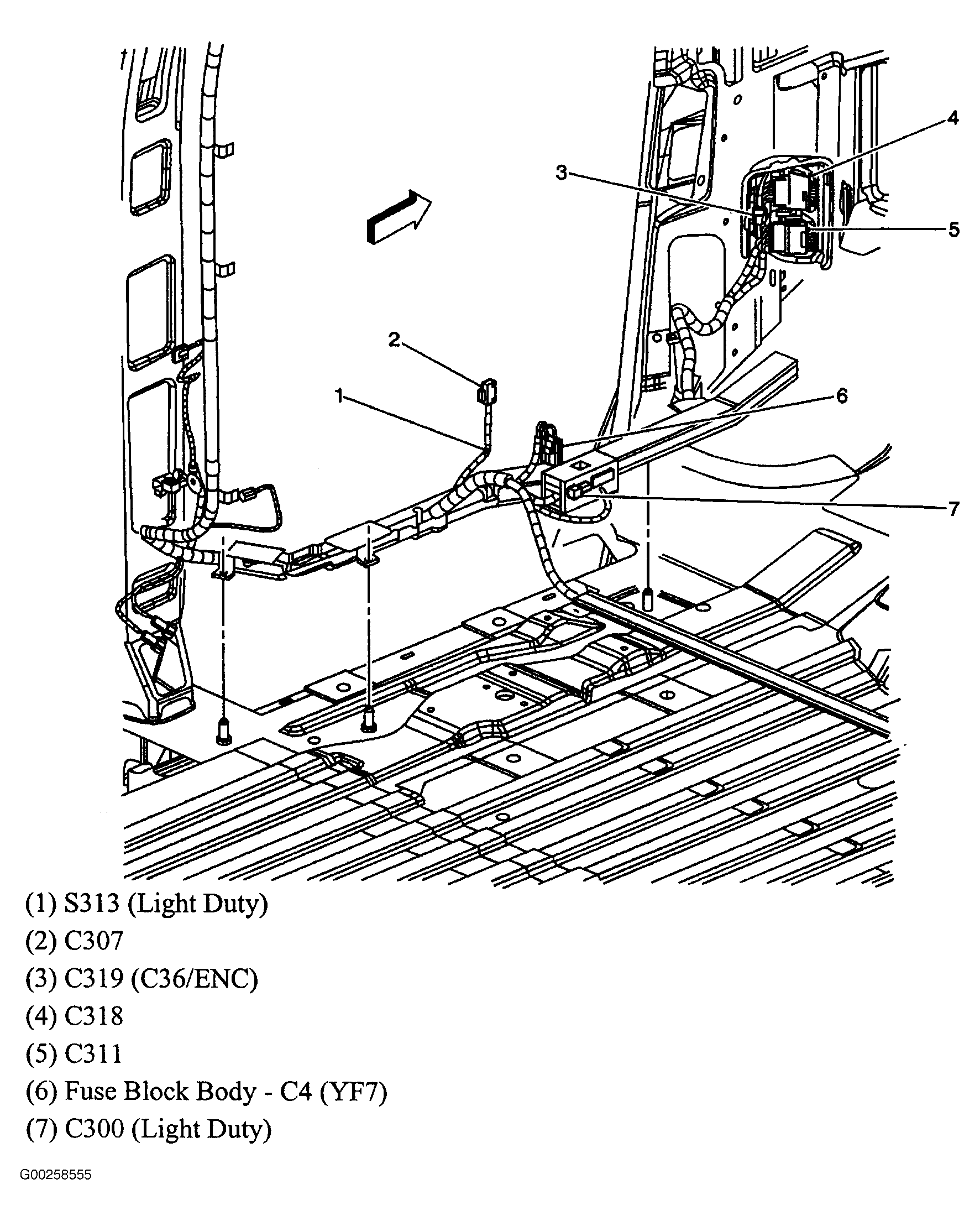

| S313 (Light Duty) | In body harness, 11 cm form C307. See Figure. |
| S314 | In vanity mirror lamp harness, 34 cm from front courtesy & reading lamp connector breakout. See Figure. |
| S315 | In chassis harness, 10 cm from G300 breakout. |

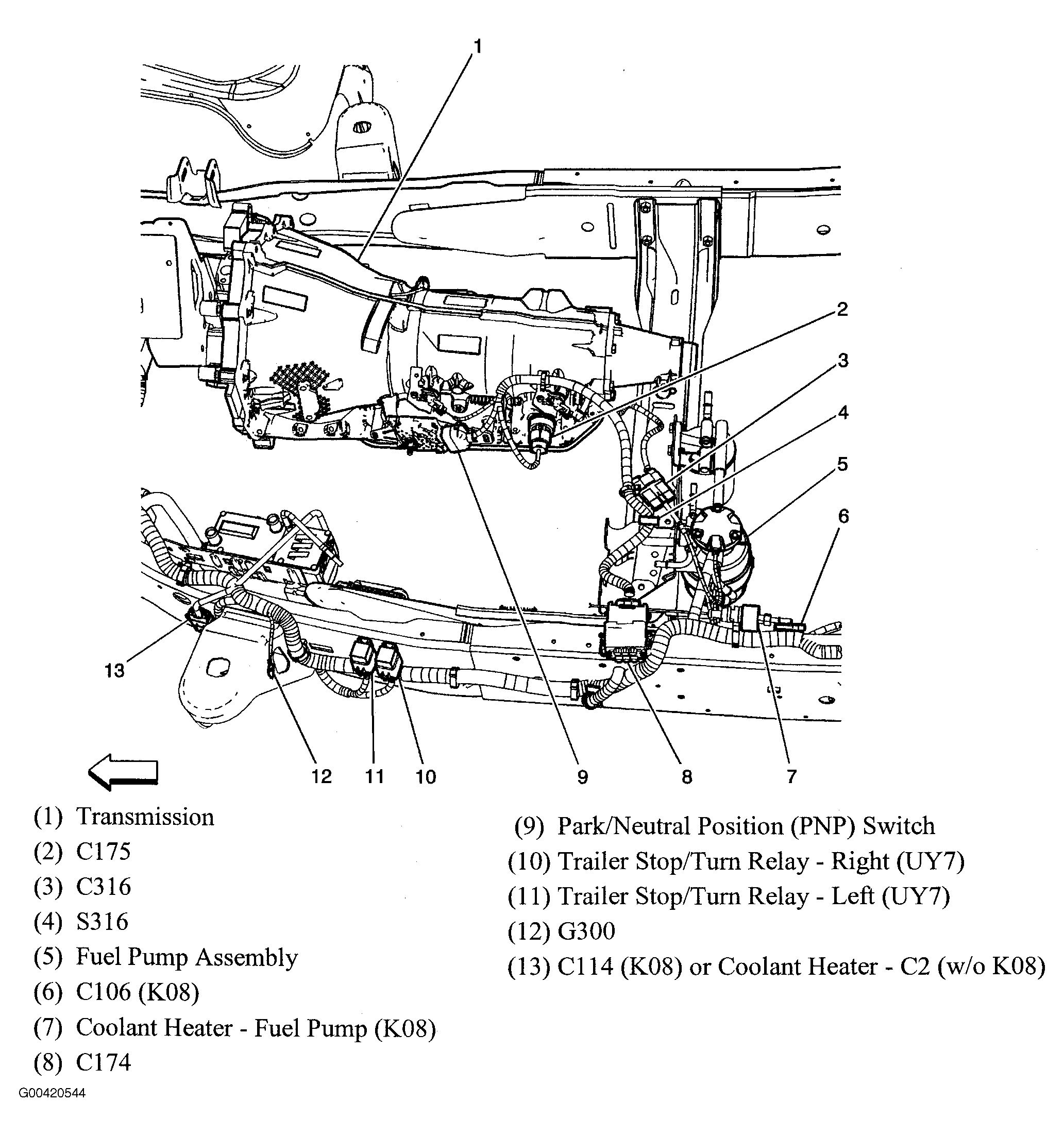

| S316 (6.6L VIN W) | In front of fuel pump. See Figure. |
| S330 | In rear headliner harness, 30 cm from C420. |
| S331 | In vanity mirror lamp harness, 42 cm from left vanity mirror lamp connector breakout. |

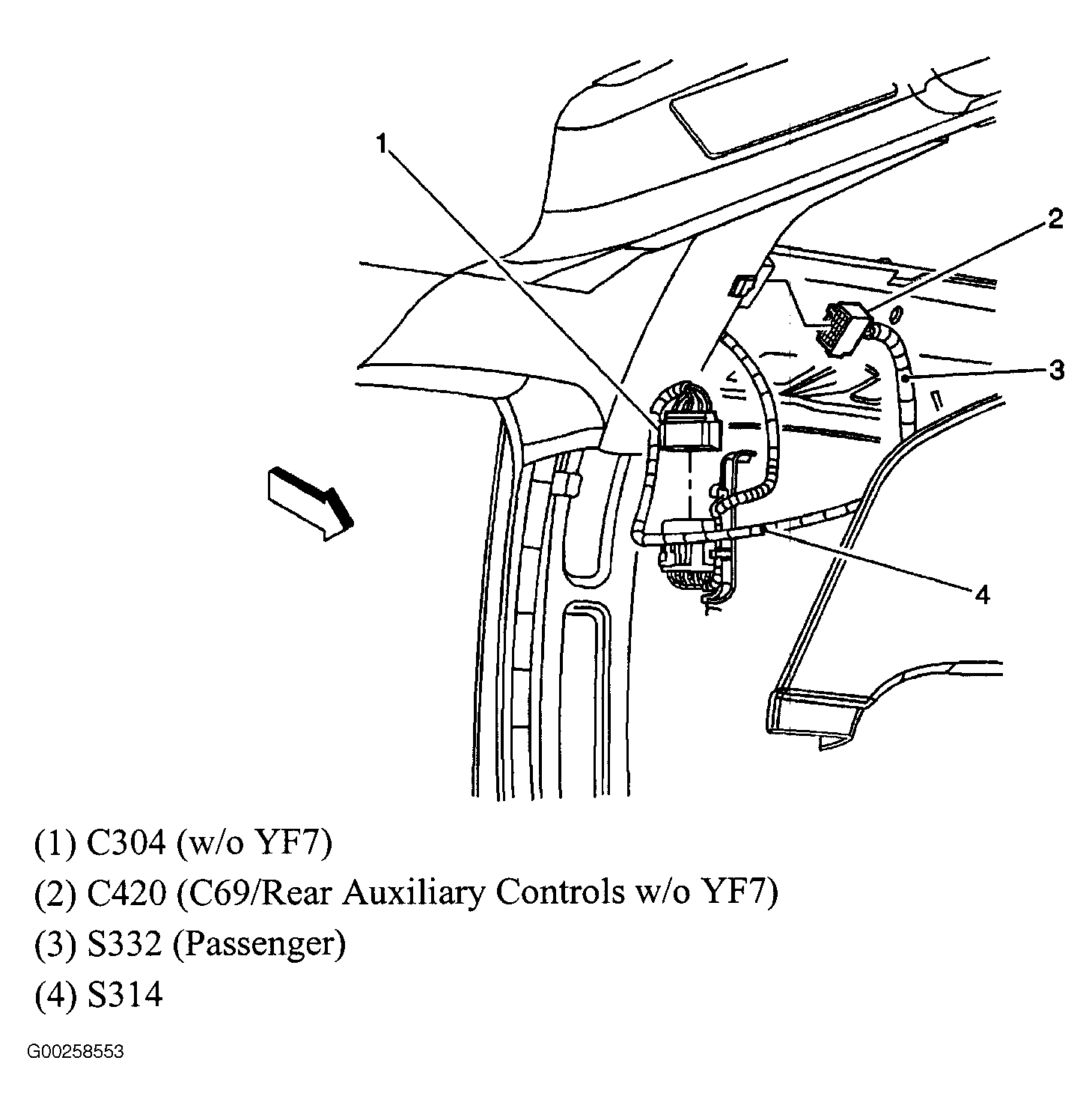

| S332 (Passenger) | In front headliner harness, 6 cm from C304 breakout. See Figure. |

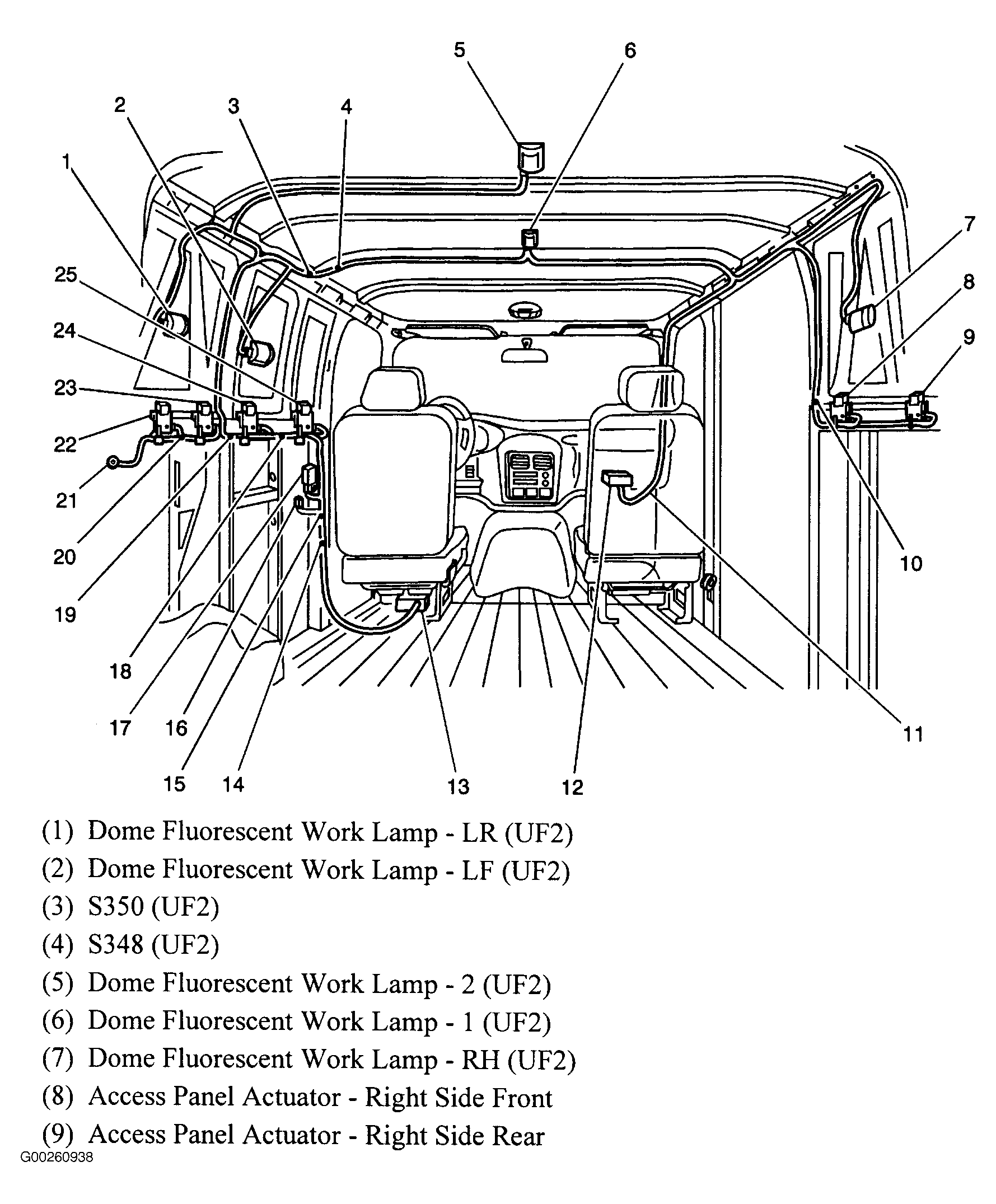

| S348 (UF2) | In PRP/UF2 harness, 19 cm from left front dome fluorescent work lamp connector. See Figure. |
| S350 (UF2) | In PRP/UF2 harness, 12 cm from left front dome fluorescent work lamp connector. See Figure. |
| S354 (Rear Auxiliary Controls W/YF7) | In upfitter HVAC control harness, 64 cm from C303 breakout. See Figure. |
| S354 (W/O RV Upfitter Option) | In front headliner harness, 11 cm from C304 breakout. |
| S355 (Rear Auxiliary Controls W/YF7) | In upfitter HVAC control harness, 11 cm from auxiliary HVAC control processor connector breakout. See Figure. |
| S355 (W/O RV Upfitter Option) | In front headliner harness, 21 cm from C304 breakout. |

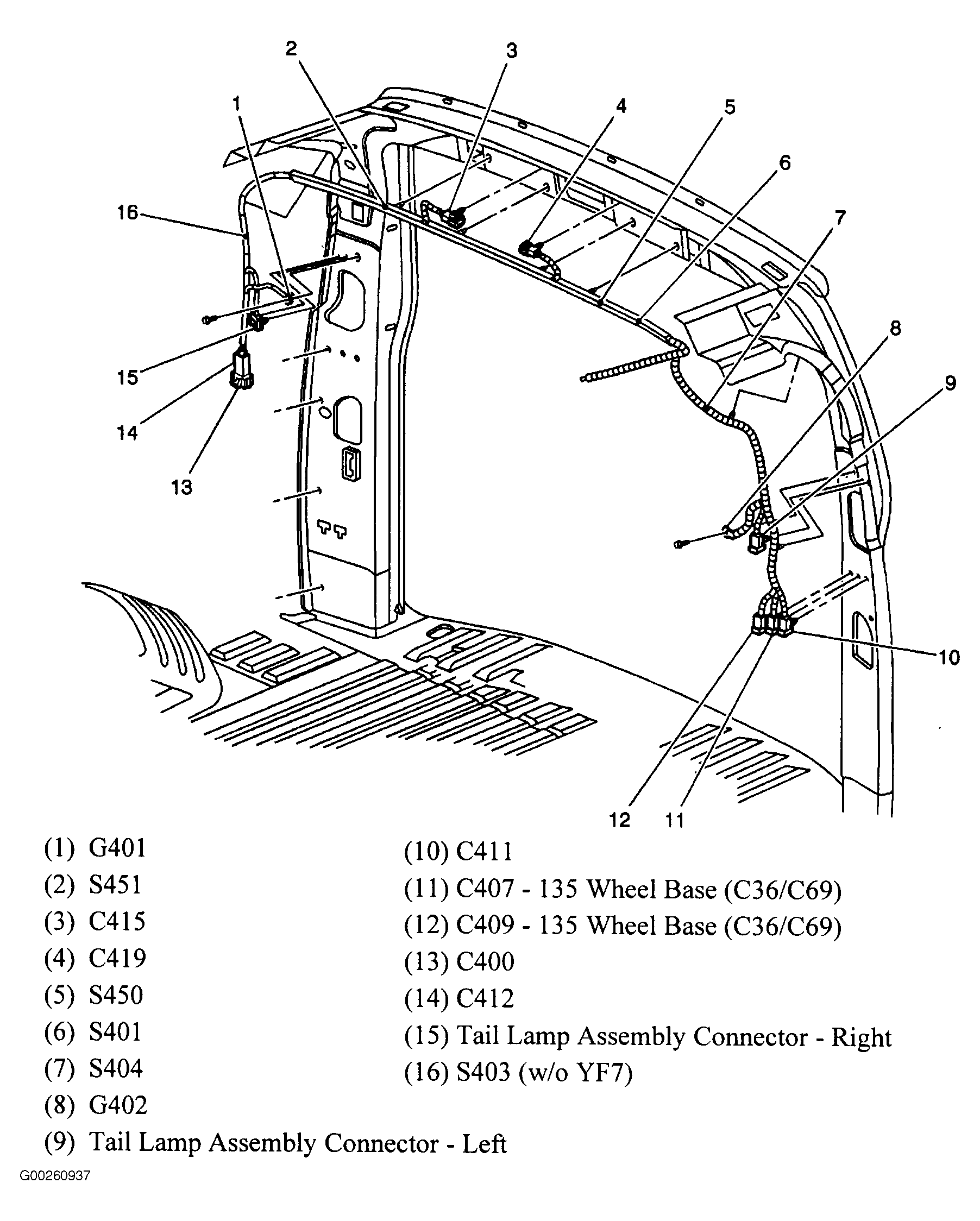

| S401 | In body harness, 16 cm from CHMSL connector breakout. See Figure. |
| S402 | In chassis harness, 9 cm from fuel pump & sender assembly breakout. |
| S403 (W/O YF7) | In body harness, 6 cm from G401 breakout. See Figure. |
| S404 | In body harness, 38 cm G402 breakout. See Figure. |

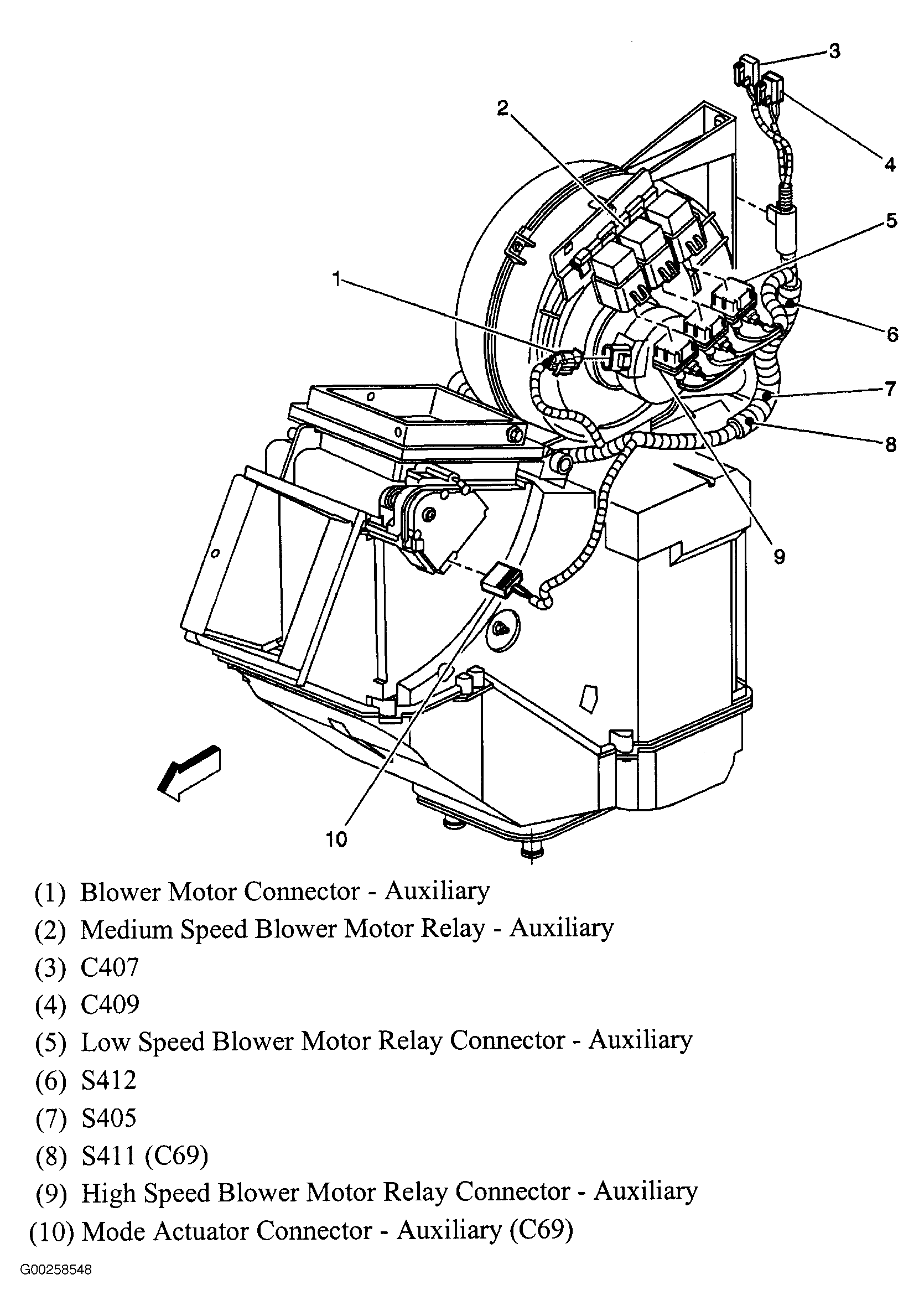

| S405 | In rear HVAC harness, 13 cm from auxiliary blower motor connector breakout. See Figure. |
| S406 | In front headliner harness, 24 cm from front courtesy & reading lamp connector. |
| S407 | In rear headliner harness, 44 cm from C420. |
| S408 | In PRP/UF2 harness, between left side rear access panel actuators. See Figure. |
| S409 | In PRP/UF2 harness, 88 cm from right dome fluorescent work lamp connector breakout. See Figure. |
| S410 | In chassis harness, between underhood fuse block & fuel pump sender assembly. |
| S411 (C69) | In rear HVAC harness, 6 cm from auxiliary blower motor connector breakout. See Figure. |
| S412 | In rear HVAC harness, 20 cm from auxiliary blower motor connector breakout. See Figure. |

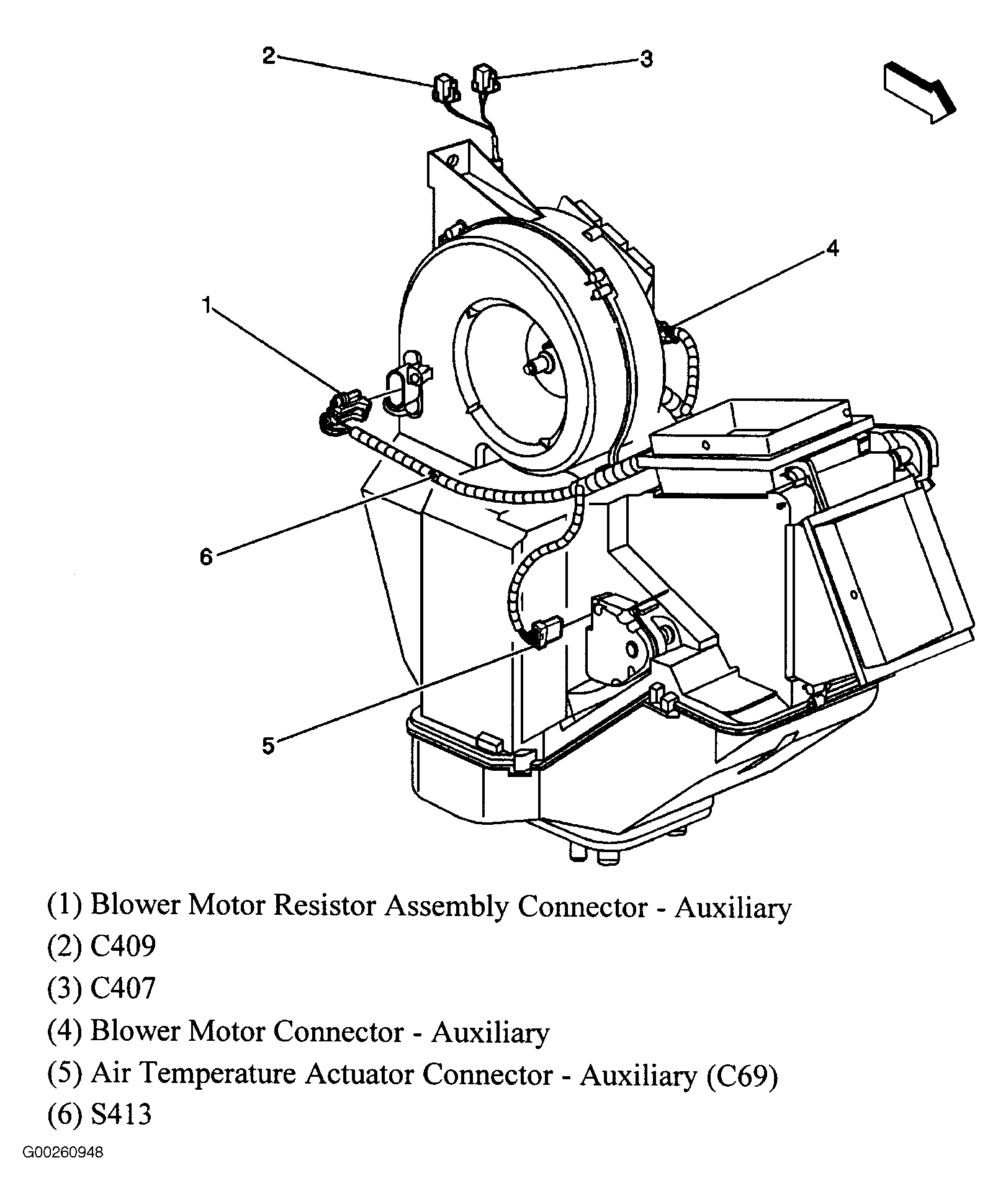

| S413 | In rear HVAC harness, 24 cm from auxiliary blower motor breakout. See Figure. |
| S450 | In body harness, 10 cm from CHMSL connector breakout. See Figure. |
| S451 | In body harness, 10 cm from C415 breakout. See Figure. |
| S452 | In body harness, 52 cm from C417 breakout. |
| S453 | In body harness, 46 cm from C417 breakout. |

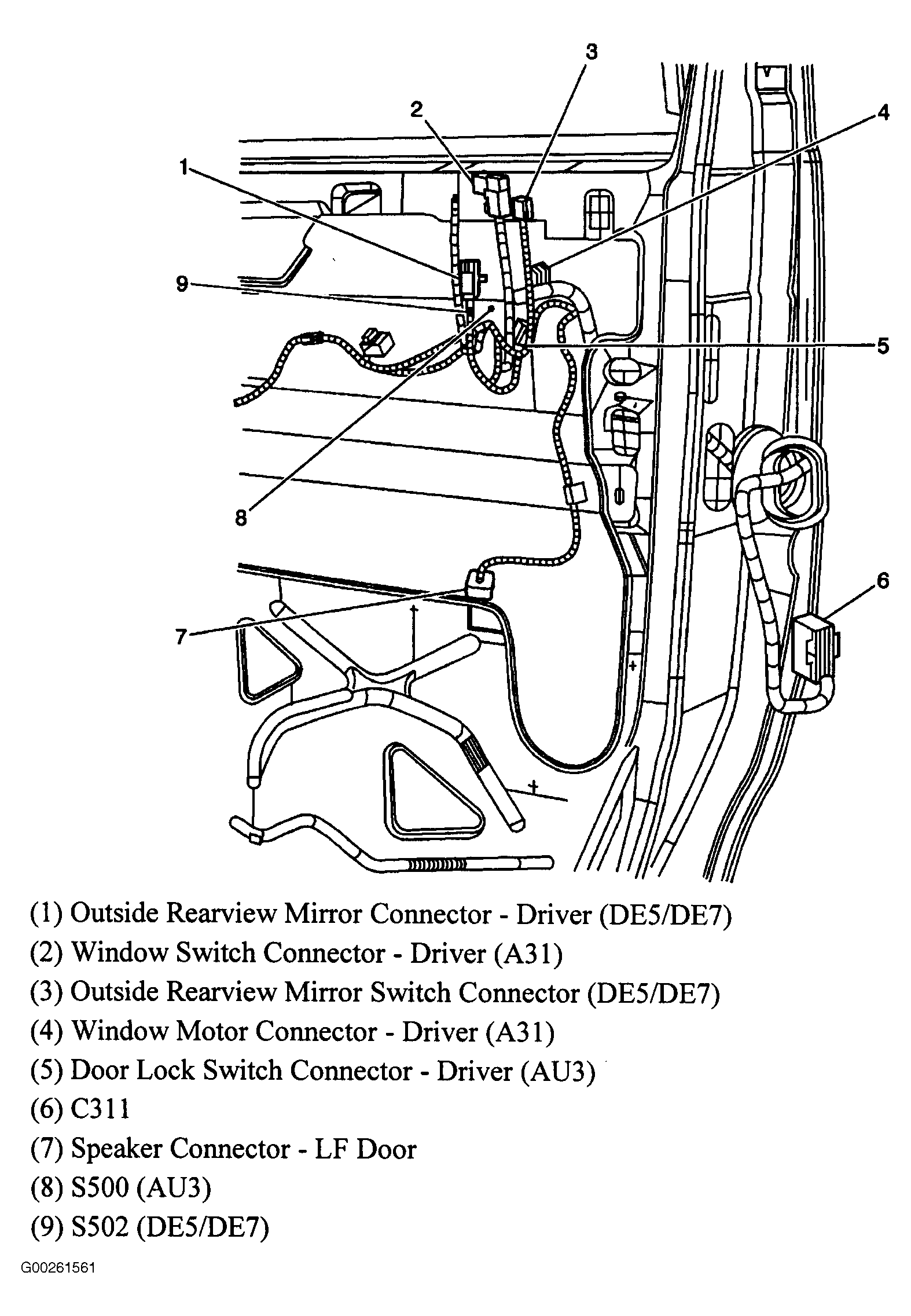

| S500 (AU3) | In left front door harness, 6 cm from left front door speaker breakout. See Figure. |
| S502 (DE5/DE7) | In left front door harness, 16 cm from driver's outside rearview mirror connector. See Figure. |

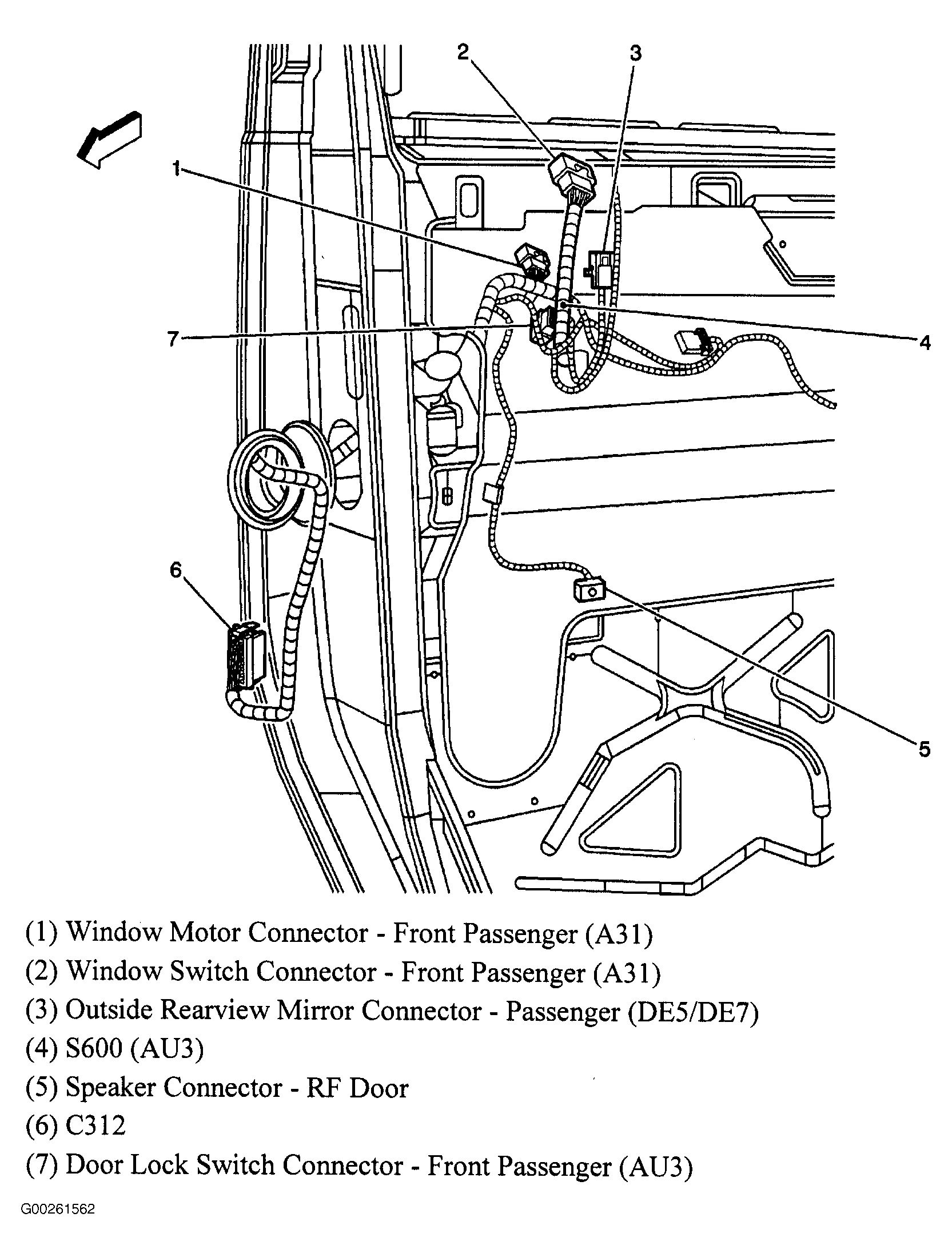

| S600 (AU3) | In right front door harness, 7 cm from right front door speaker breakout. See Figure. |

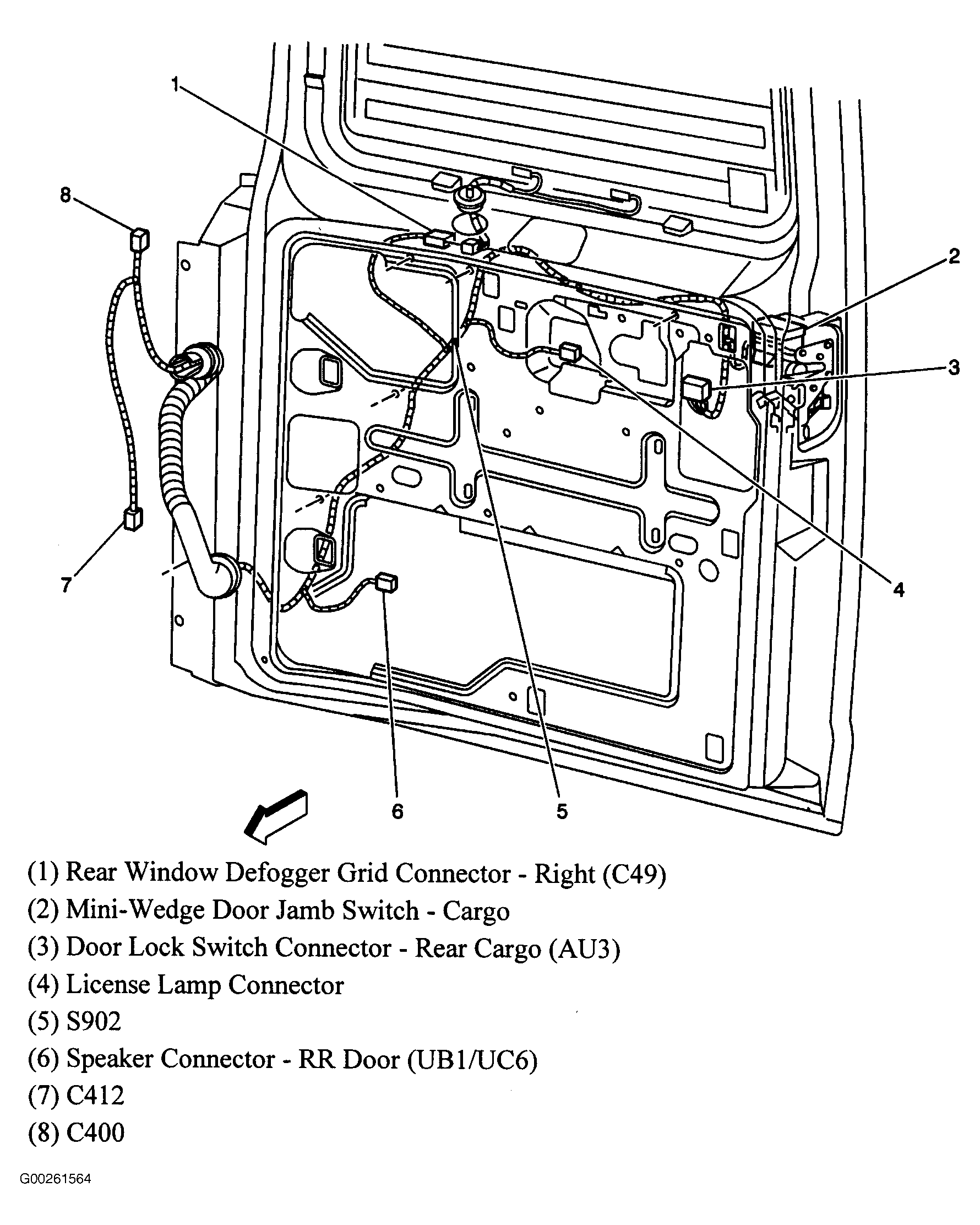

| S902 | In right rear door harness, 19 cm from license lamp connector breakout. See Figure. |
