Installation Procedure

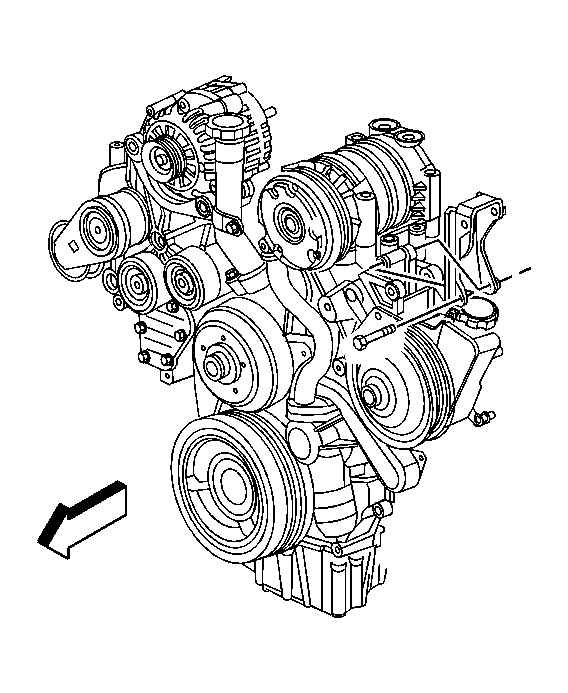

    Fig 1: View Of Auxiliary Generator Bracket & Bolt (6.6L - LLY)
    GM1369546Courtesy of GENERAL MOTORS CORP.
  1. Install the auxiliary generator bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the auxiliary generator bracket bolt.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

    3. Fig 2: View Of Auxiliary Generator & Bolts
    GM1369547Courtesy of GENERAL MOTORS CORP.
  3. Install the auxiliary generator (4).
  4. Install the auxiliary generator bolts (3).

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

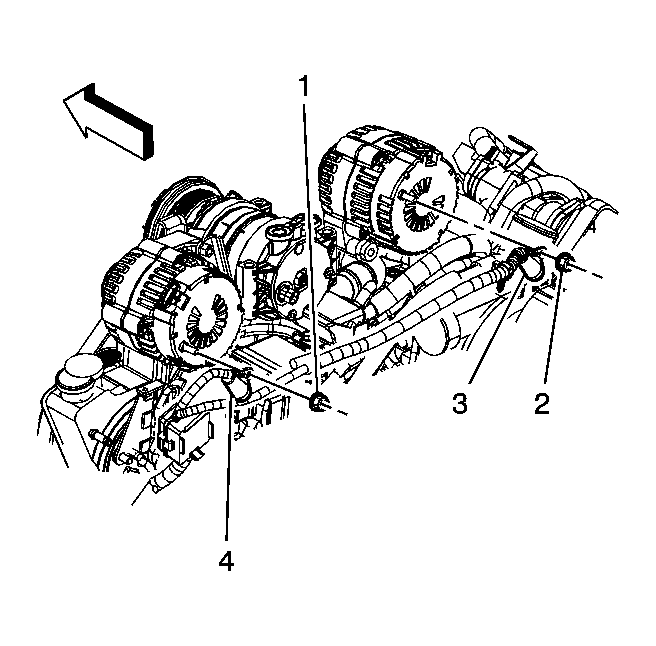

    5. Fig 3: View Of Positive Cable At Auxiliary Generator (6.6L (LLY) Engine)
    GM1369548Courtesy of GENERAL MOTORS CORP.
  5. Install the positive cable to the auxiliary generator, perform the following:
    1. Install the positive cable.
    2. Install the positive cable nut (1).

      Tighten:  Tighten the nut to 9 N.m (80 lb in).

    3. Slide the boot (4) up to cover the terminal stud.
  6. Install the drive belt. Refer to Drive Belt Replacement .

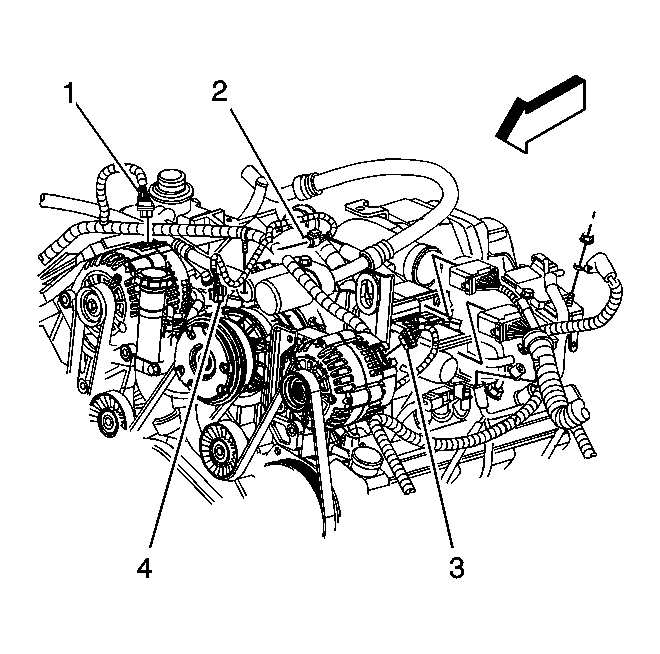

    7. Fig 4: View Of A/C & Generator Electrical Connectors
    GM1369550Courtesy of GENERAL MOTORS CORP.
  7. Connect the auxiliary generator electrical connector (3).
  8. Install the radiator fan shroud. Refer to Fan Shroud Replacement - Upper .
  9. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  10. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
