Engine Electrical Component Views

Fig 1: Component View - Battery - G106

Courtesy of GENERAL MOTORS CORP.

Fig 2: Front of the Engine (4.3L) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
2	A/C Compressor Clutch Connector (C60)
3	Crankshaft Position (CKP) Sensor Connector

Fig 3: Upper Front of the Engine (4.8L/5.3L/6.0L) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emissions (EVAP) Canister Purge Solenoid
2	Idle Air Control (IAC) Valve (w/o JL4)
3	Throttle Position (TP) Sensor (w/o JL4)
4	Generator

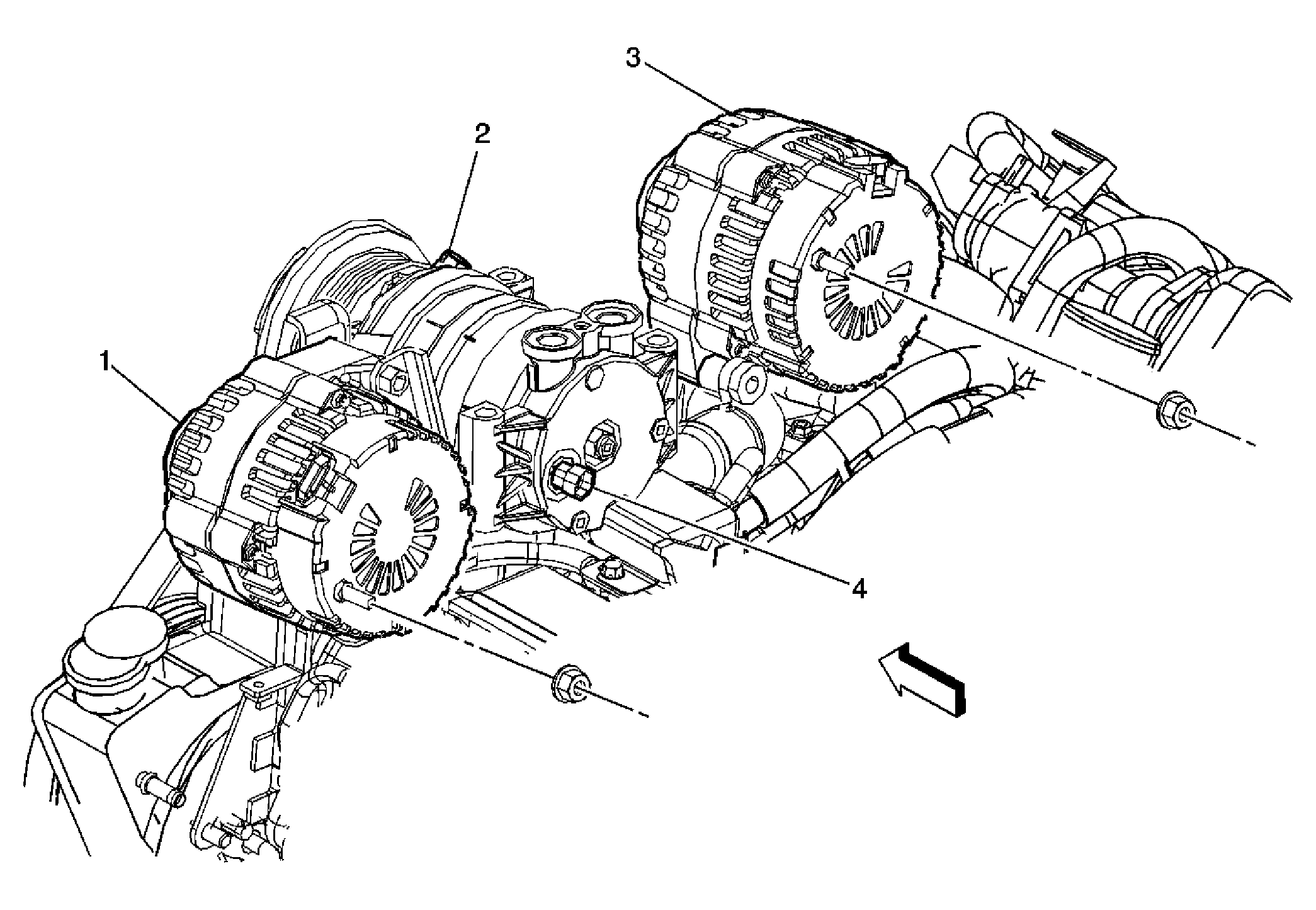

Fig 4: Upper Front of the Engine (6.6L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator - Auxiliary (KD9/YF2)
2	A/C Compressor Clutch Connector (C60)
3	Generator
4	A/C High Pressure Switch (C60)

Fig 5: Component View - Right Side Of Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter Motor
2	Engine Oil Level Switch Connector (4.8L/5.3L/6.0L)

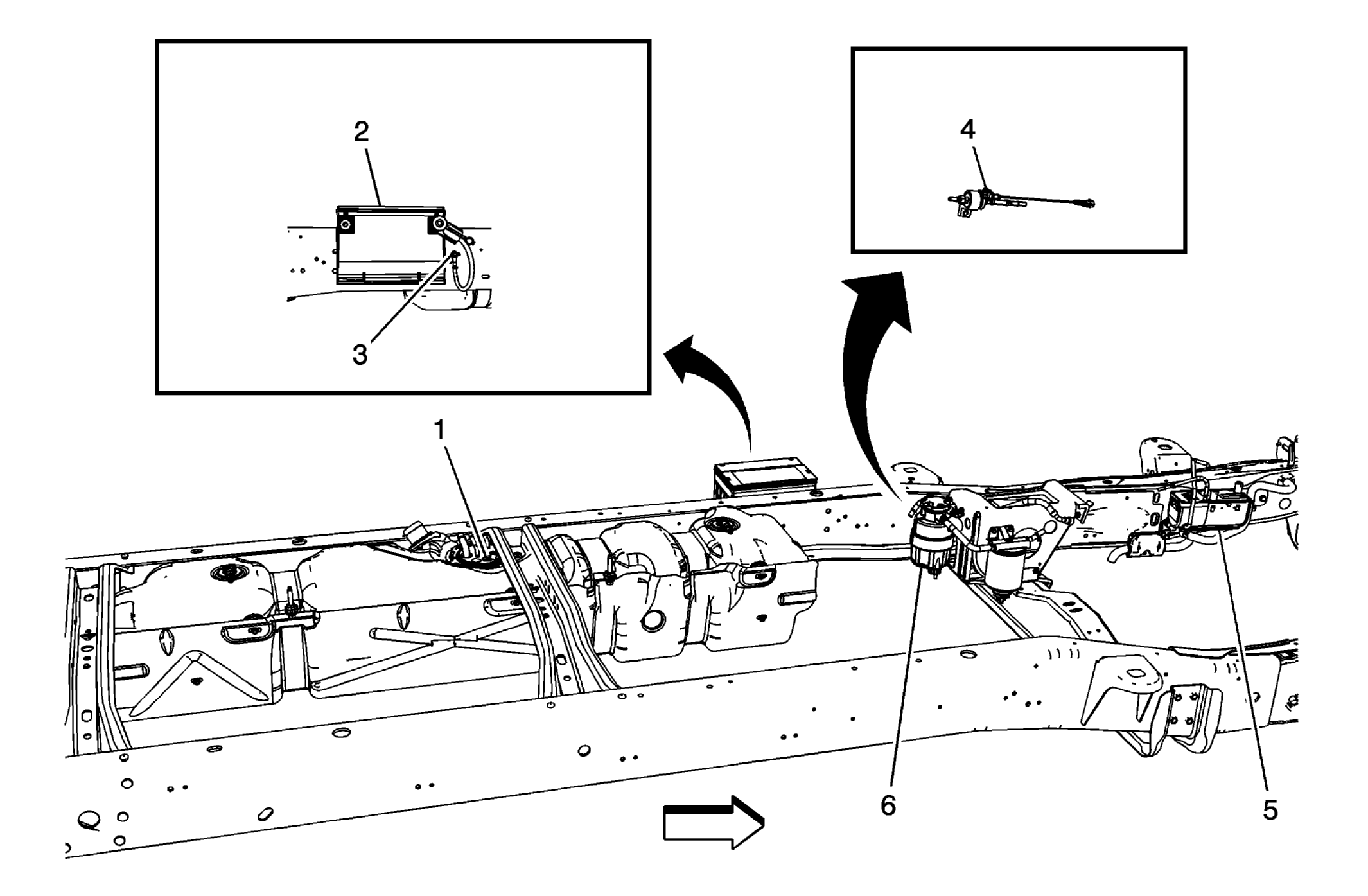

Fig 6: Left Side Frame (6.6L)

Courtesy of GENERAL MOTORS CORP.
