Door Lock/Indicator Schematics

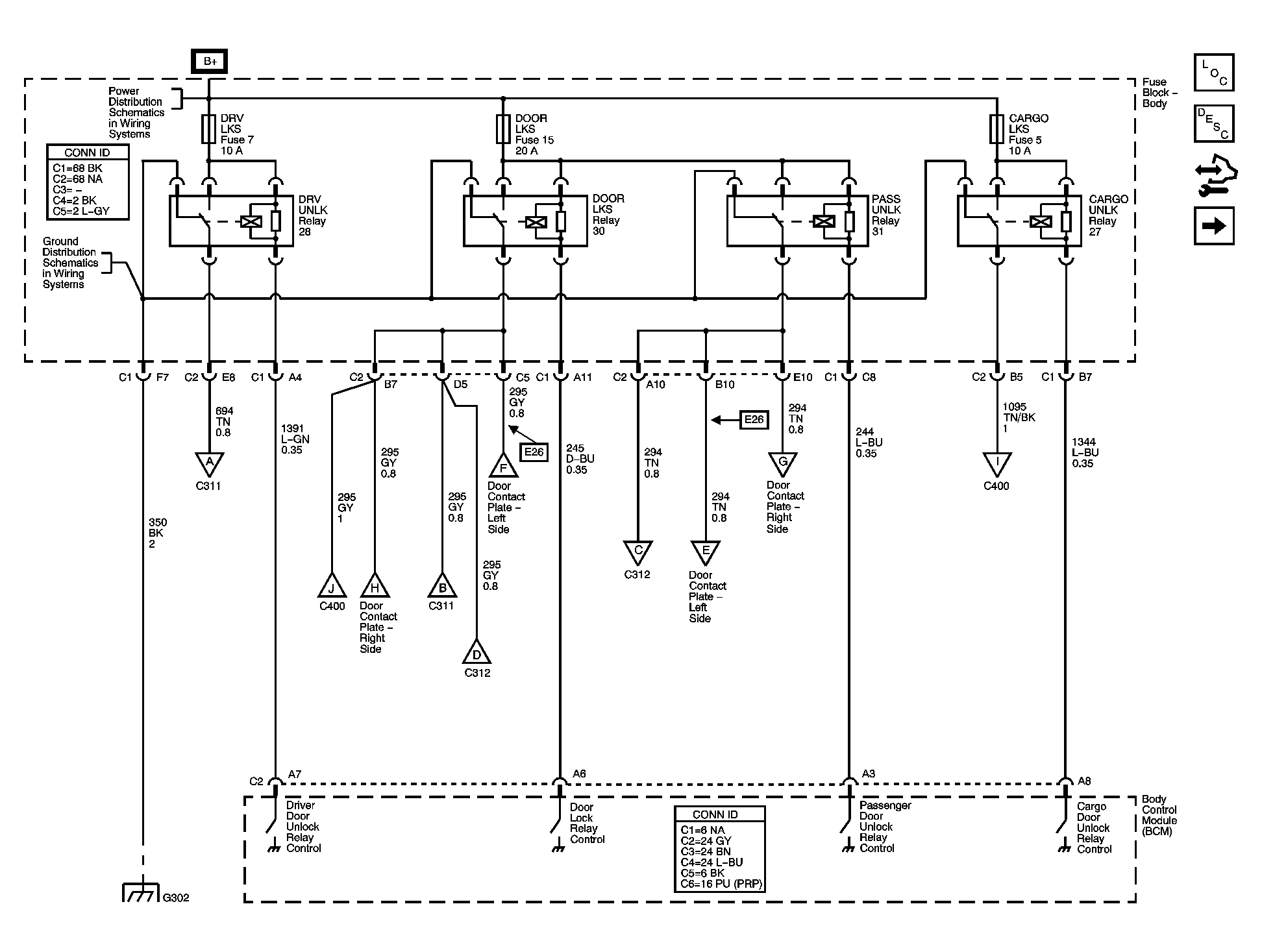

Fig 1: Lock and Unlock Control
GM1580816Courtesy of GENERAL MOTORS CORP.

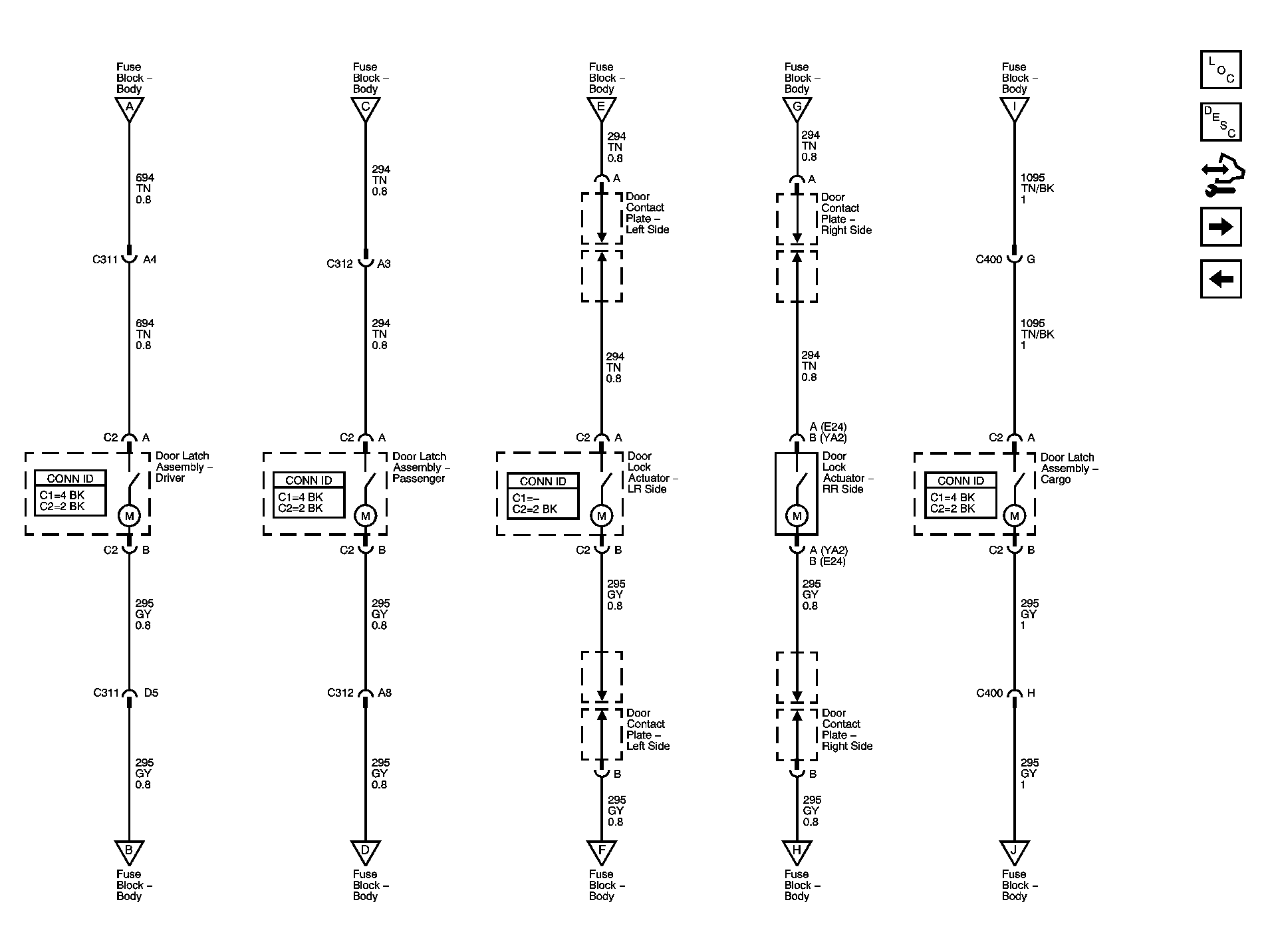

Fig 2: Door Latches and Actuators
GM1580817Courtesy of GENERAL MOTORS CORP.

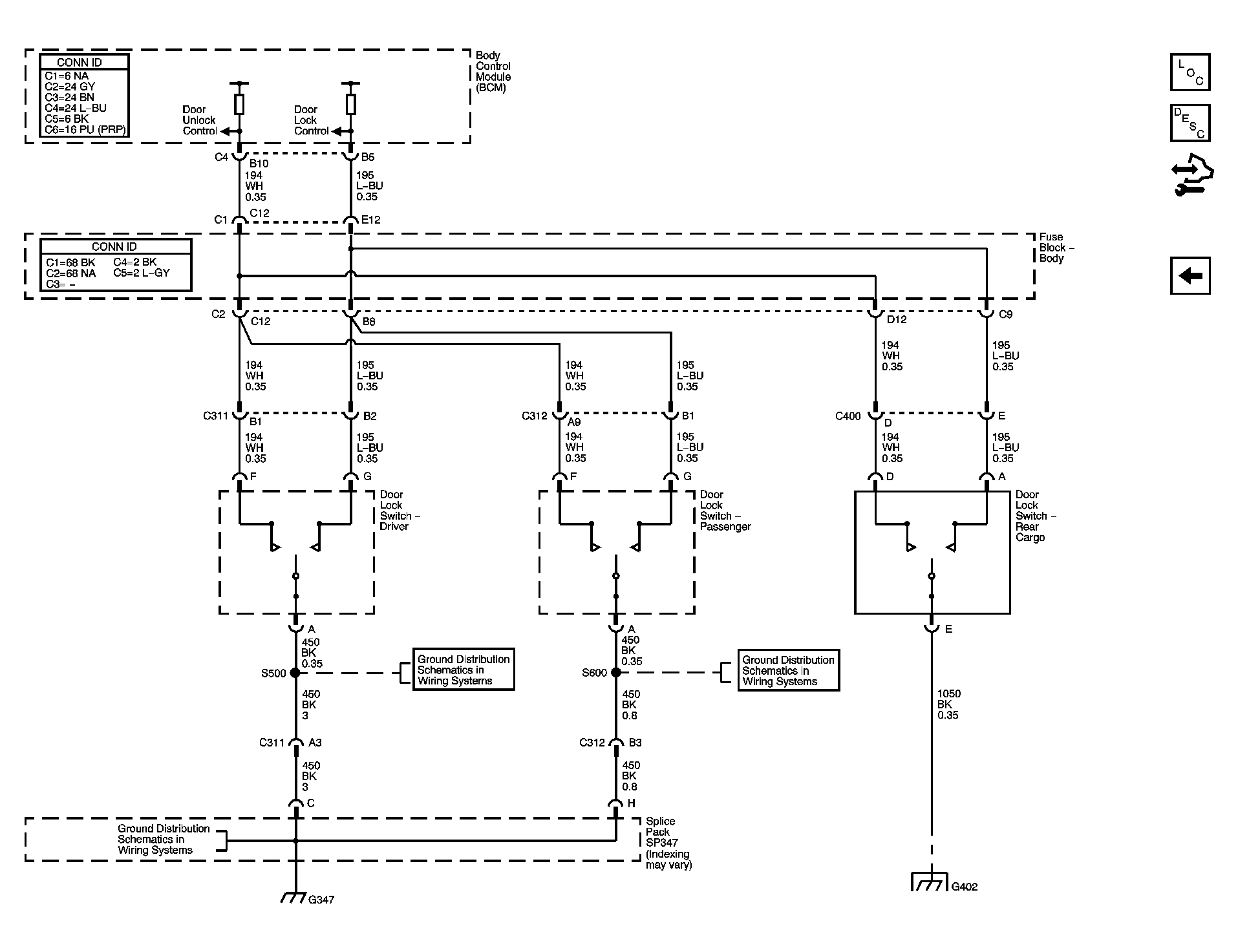

Fig 3: Switches
GM1580819Courtesy of GENERAL MOTORS CORP.
