Installation Procedure

  1. Position the front seat riser into the vehicle.
    2. NOTE: Refer to Fastener Notice .
  2. Install the nuts in order to retain the seat riser to the vehicle.

    Tighten:  Tighten the nuts to 60 N.m (44 lb ft).

  3. Position the front seat assembly to the seat riser.

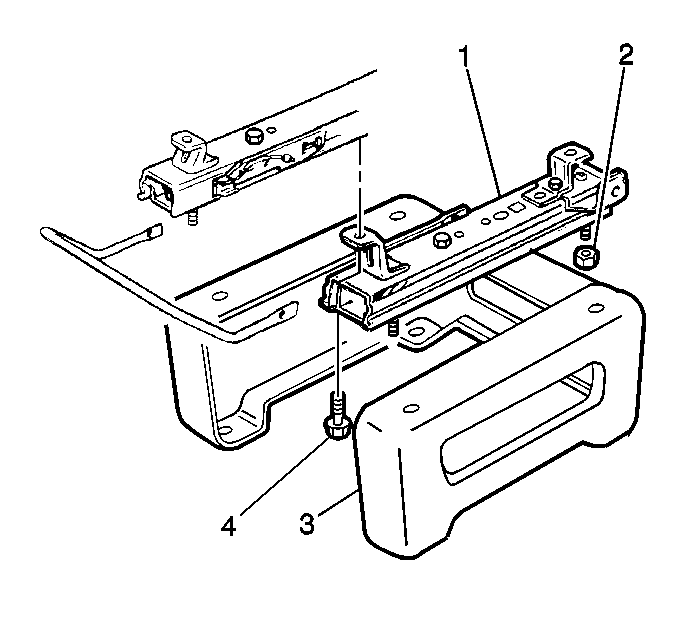

    4. Fig 1: Seat Cushion Frame To Adjuster Bolts
    GM333622Courtesy of GENERAL MOTORS CORP.
  4. Install the seat adjuster nuts (2).
    5. NOTE: Refer to Fastener Notice .
  5. Install the nuts (2) in order to retain the seat adjuster (1) to the seat riser (3).

    Tighten:  Tighten the nuts (2) to 45 N.m (33 lb ft).

  6. Install the front seat assembly to the vehicle. Refer to Seat Replacement .
