Installation Procedure

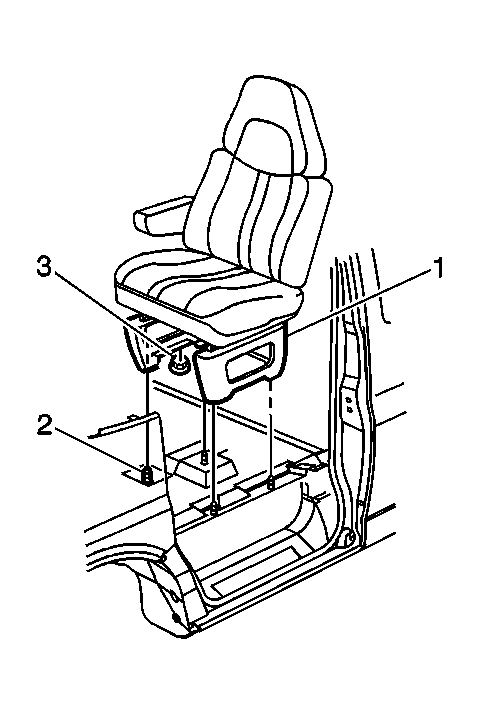

    Fig 1: Seat
    GM333620Courtesy of GENERAL MOTORS CORP.
  1. Position the front seat assembly into the vehicle.
    2. NOTE: Refer to Fastener Notice .
  2. Install the nuts (3).

    Tighten:  Tighten the nuts to 60 N.m (44 lb ft).

  3. Connect the electrical connector to the seat assembly, if equipped with power seat motors.
  4. Enable the SIR. Refer to SIR Disabling and Enabling Zone 3 orSIR Disabling and Enabling Zone 5 in SIR.
