Installation Procedure

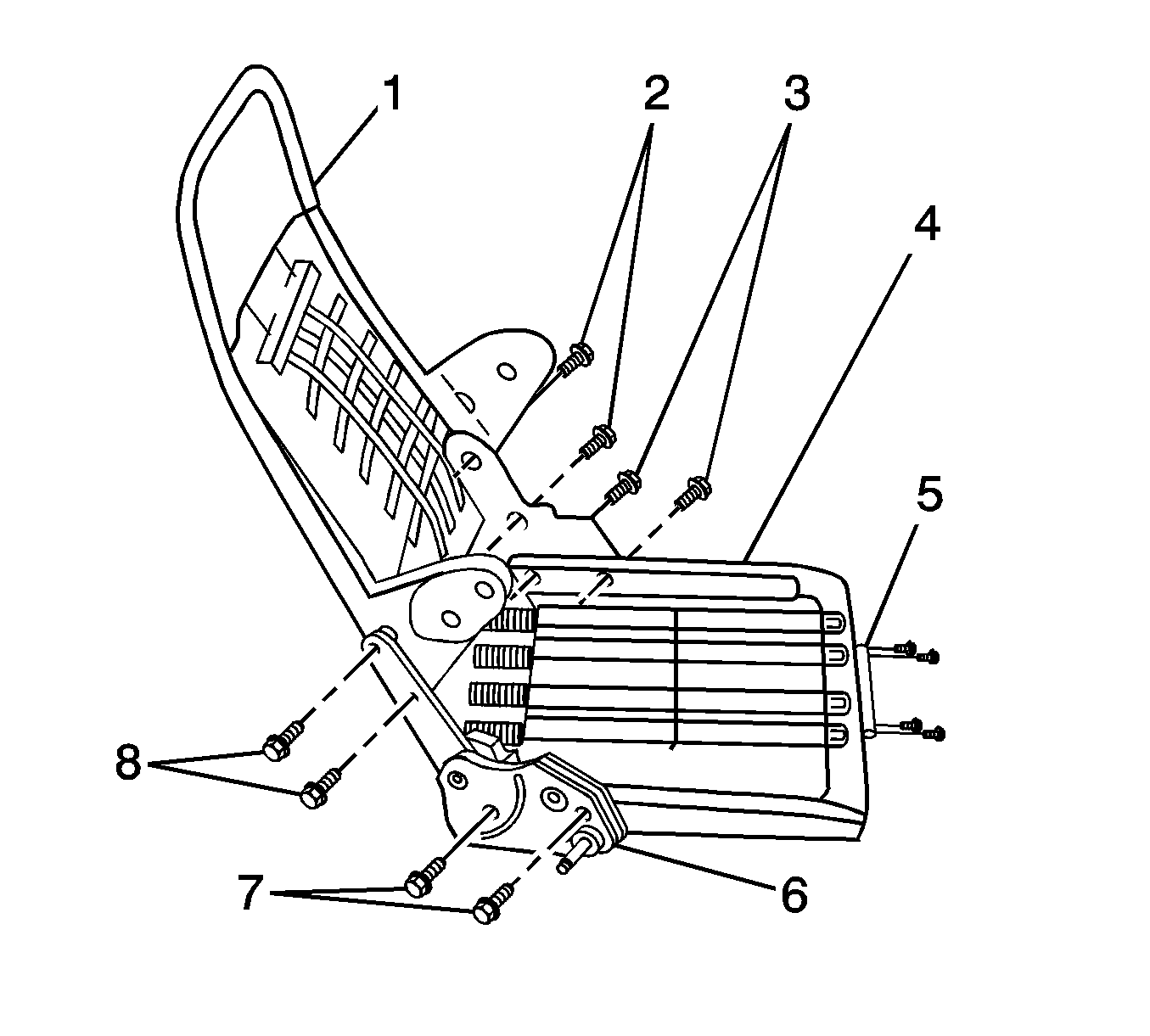

    Fig 1: Seat Back Hinge/Recliner Mechanisms To Seat Cushion Frame Bolts
    GM857523Courtesy of GENERAL MOTORS CORP.
  1. Position the seat back frame to the seat assembly.
    2. NOTE: Refer to Fastener Notice .
  2. Install the bolts (2,8) to the recliners on the right and left side.

    Tighten:  Tighten the bolts (2,8) to 32 N.m (24 lb in).

  3. Install the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .
  4. Install the seat in the vehicle. Refer to Seat Replacement .
