Power Seat Systems Connectors

Seat Adjuster Switch - Driver

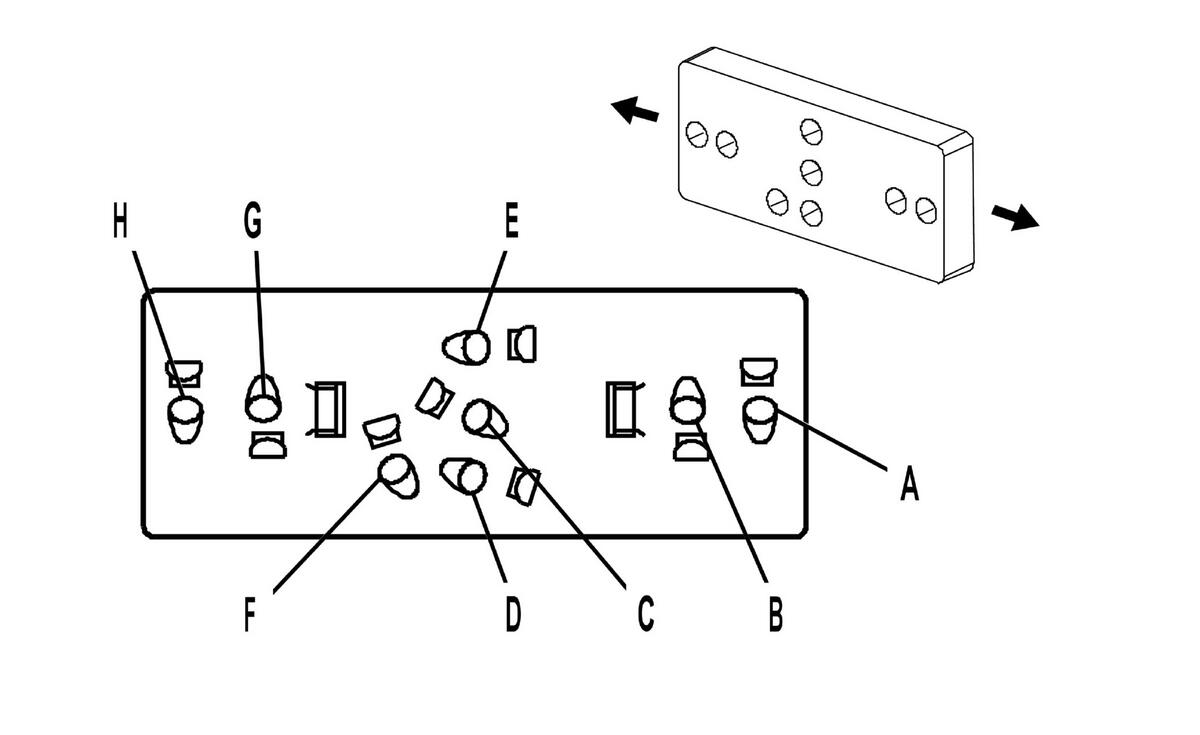

GM387555Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12066386
  • 8-Way F Pin Grip Connectors (GY)
Pin Wire Color Circuit No. Function
A D-GN/BK 921 Driver Seat Rear Vertical Motor Down Control
B D-GN 920 Driver Seat Rear Vertical Motor Up Control
C BK 450 Ground
D D-BU 918 Driver Seat Horizontal Motor Forward Control
E D-BU/BK 919 Driver Seat Horizontal Motor Rearward Control
F RD/WH 3540 Battery Positive Voltage
G BN/BK 923 Driver Seat Front Vertical Motor Down Control
H BN 922 Driver Seat Front Vertical Motor Up Control
Seat Adjuster Switch - Passenger (AG2)

GM387555Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12066386
  • 8-Way F Pin Grip Connectors (GY)
Pin Wire Color Circuit No. Function
A D-GN/BK 927 Passenger Seat Rear Vertical Motor Down Control
B D-GN 926 Passenger Seat Rear Vertical Motor Up Control
C BK 450 Ground
D D-BU 924 Passenger Seat Horizontal Motor Forward Control
E D-BU/BK 925 Passenger Seat Horizontal Motor Rearward Control
F RD/WH 3540 Battery Positive Voltage
G BN/BK 929 Passenger Seat Front Vertical Motor Down Control
H BN 928 Passenger Seat Front Vertical Motor Up Control
Seat Motors - Driver

GM288397Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015344
  • 6-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A D-GN 920 Driver Seat Rear Vertical Motor Up Control
B D-GN/BK 921 Driver Seat Rear Vertical Motor Down Control
C D-BU 918 Driver Seat Horizontal Motor Forward Control
D D-BU/BK 919 Driver Seat Horizontal Motor Rearward Control
E BN 922 Driver Seat Front Vertical Motor Up Control
F BN/BK 923 Driver Seat Front Vertical Motor Down Control
Seat Motors - Passenger (AG2)

GM288397Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015344
  • 6-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A D-GN 926 Passenger Seat Rear Vertical Motor Up Control
B D-GN/BK 927 Passenger Seat Rear Vertical Motor Down Control
C D-BU 924 Passenger Seat Horizontal Motor Forward Control
D D-BU/BK 925 Passenger Seat Horizontal Motor Rearward Control
E BN 928 Passenger Seat Front Vertical Motor Up Control
F BN/BK 929 Passenger Seat Front Vertical Motor Down Control
