Wiper/Washer System Component Views

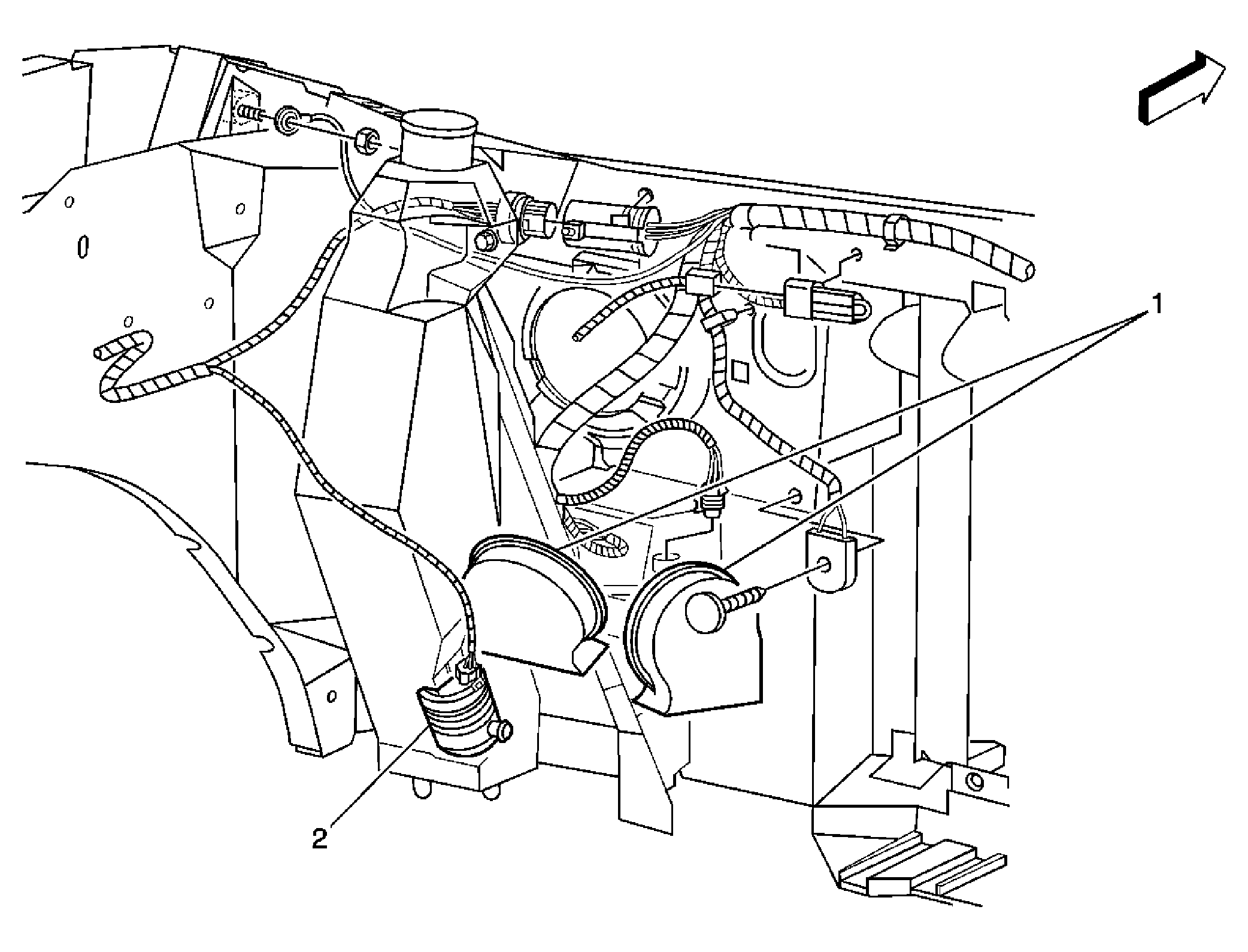

Fig 1: Component View - LF Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Assembly
2	Windshield Washer Fluid Pump

Fig 2: Component Views - LR Of Engine Compartment (w/o JL4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	Cruise Control Module (CCM) (Gas K34 w/o JL4)

Fig 3: Component Views - Upper Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel
2	Steering Column
3	Cruise Control ON/OFF Switch (K34)
4	Windshield Wiper Switch
5	Windshield Washer Switch
6	Hazard Switch
