DTC P0757: Notes

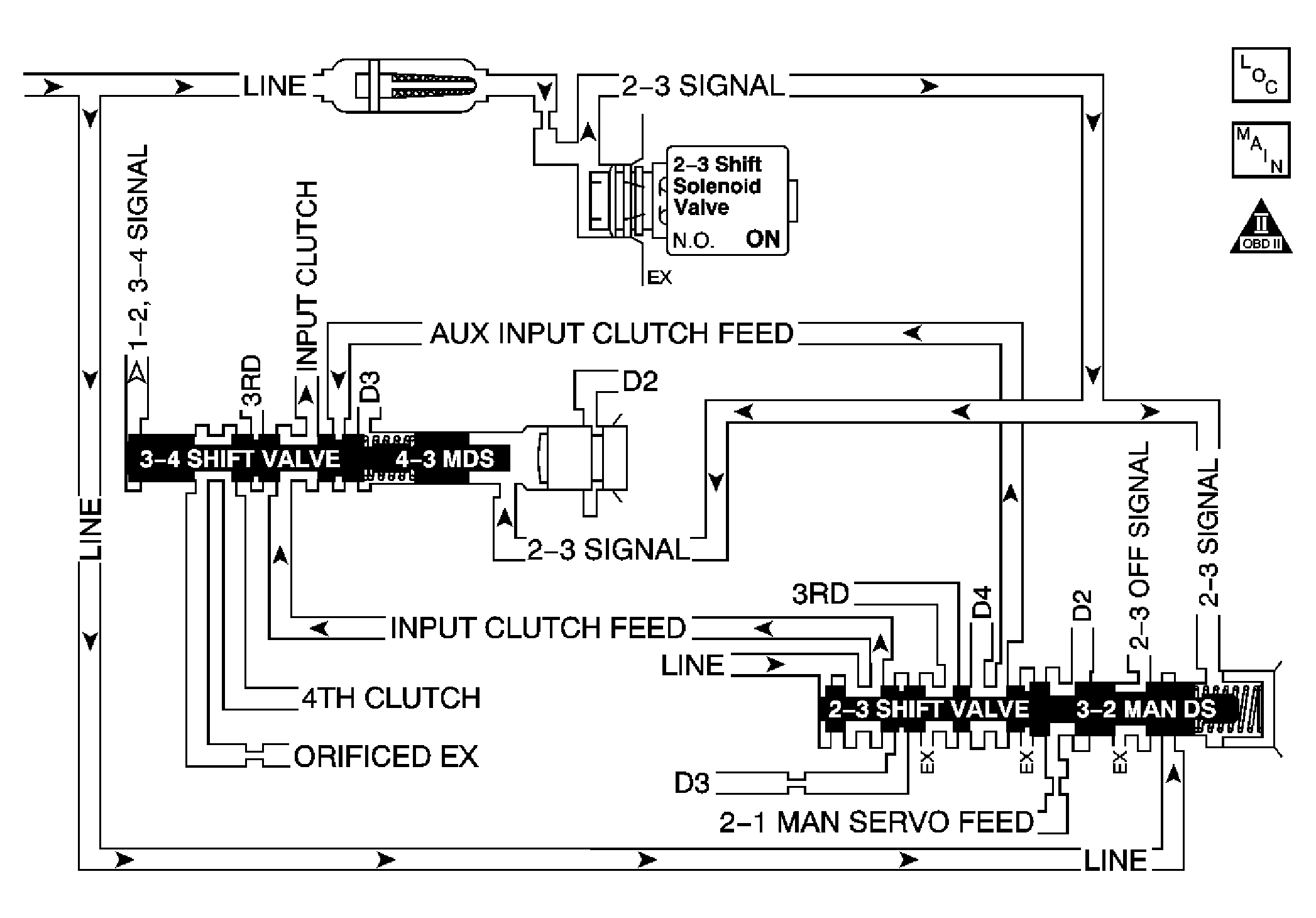

Fig 1: Identifying DTC P0756 2-3 Shift Solenoid Valve Transmission Flow Chart

GM954440

Courtesy of GENERAL MOTORS CORP.
