Installation Procedure

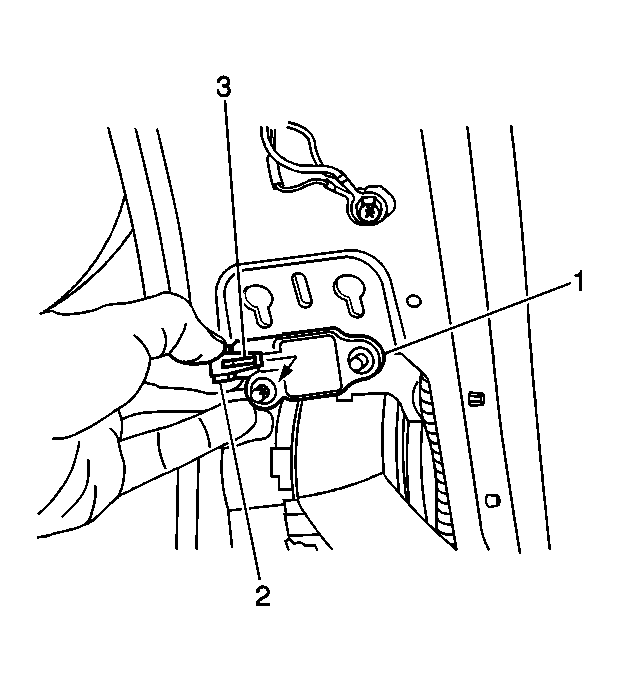

    Fig 1: Locating Side Impact Sensor Connectors
    GM260344Courtesy of GENERAL MOTORS CORP.
  1. Connect the inflatable restraint side impact sensor yellow 2-way connector (2) to the inflatable restraint side impact sensor (1).
  2. Install the CPA to the inflatable restraint side impact sensor yellow 2-way wiring harness connector (2).
  3. Install the inflatable restraint side impact sensor (1) to the center pillar.

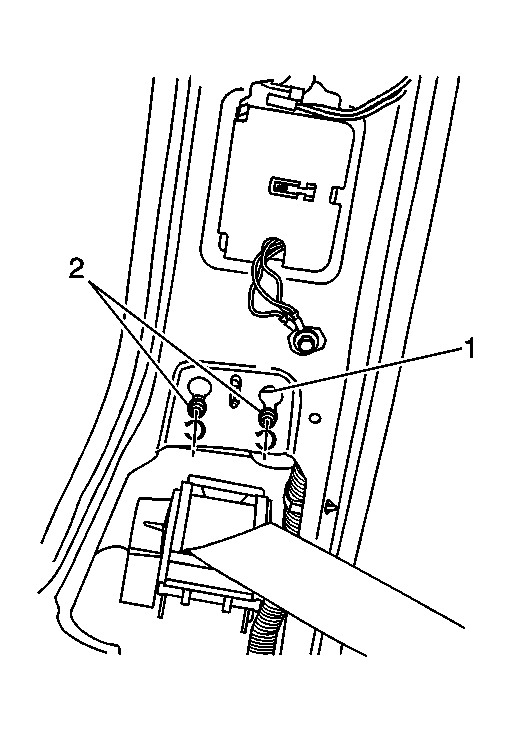

    4. Fig 2: Locating Inflatable Restraint Side Impact Sensor Fasteners
    GM260342Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the fasteners (2) to the inflatable restraint side impact sensor.

    Tighten:  Tighten fasteners to 10 N.m (89 lb in).

  5. Install the seat belt retractor trim cover. Refer to Seat Belt Retractor Replacement - Left Front or Seat Belt Retractor Replacement - Right Front in Seat Belts.
  6. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 7  or SIR Disabling and Enabling Zone 9 .
