Installation Procedure

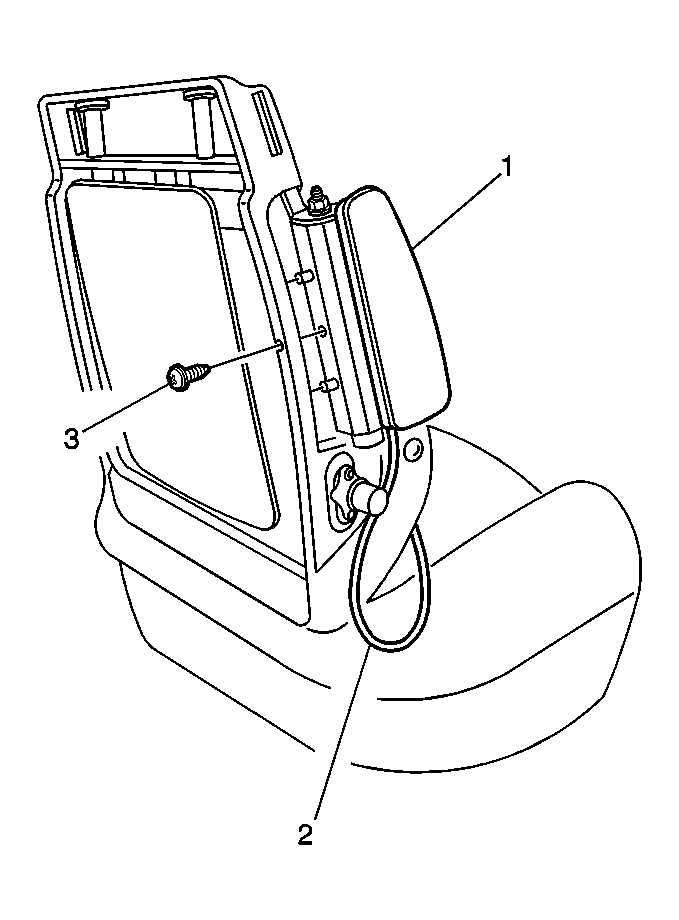

Fig 1: Routing Of Inflator Module Wiring Harness

GM422755

Courtesy of GENERAL MOTORS CORP.

Install the inflator module wiring harness (2) to the passenger seat frame, while guiding the wiring harness through the appropriate spots on the passenger seat frame.
Install the wiring harness retaining clips to the passenger seat frame.

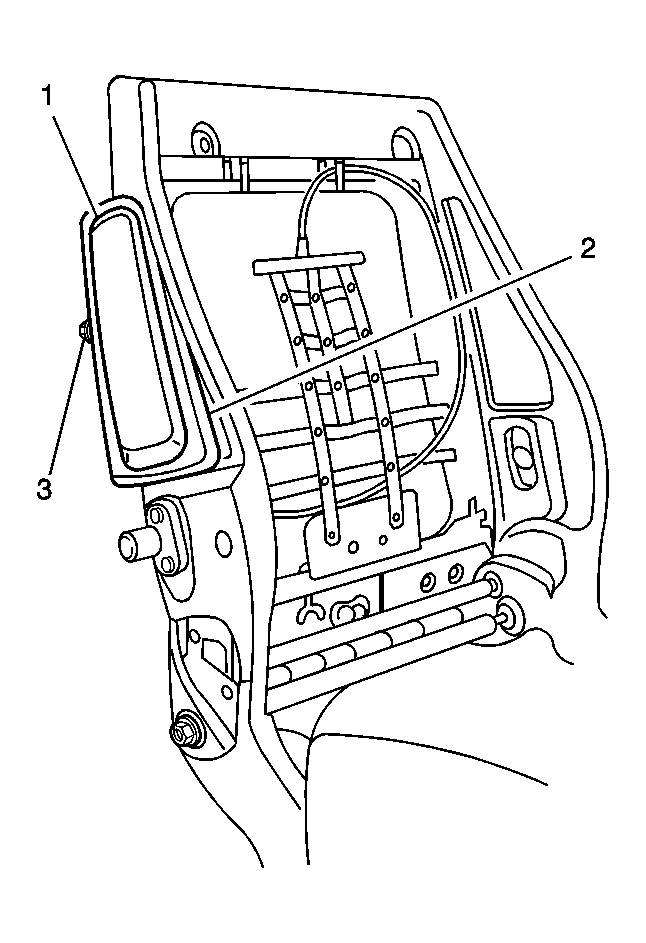

Fig 2: Locating Right Side Inflatable Restraint Side Impact Module Components

GM422750

Courtesy of GENERAL MOTORS CORP.

Install the plastic molding (2) that holds the air bag inflator module (1) to the passenger seat back frame.
Install the air bag inflator module (1) to the passenger seat back frame
Install the seat back cover. Refer to Seat Back Cover Replacement - Front in Seats.
Install the passenger front seat. Refer to Seat Replacement - Bucket in Seats.
Enable the SIR system. Refer to SIR Disabling and Enabling Zone 9 .
