Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Verify that the release lever is at the top of the adjuster bracket in the full up position.

Position the shoulder belt guide adjuster bracket to the center pillar.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bracket bolts to the shoulder belt guide adjuster.
Tighten: Tighten the bracket bolts to 42 N.m (31 lb ft).
Install the trim panel for the upper center pillar. Refer to Trim Panel Replacement - Upper Center Pillar (Impala) in Interior Trim.

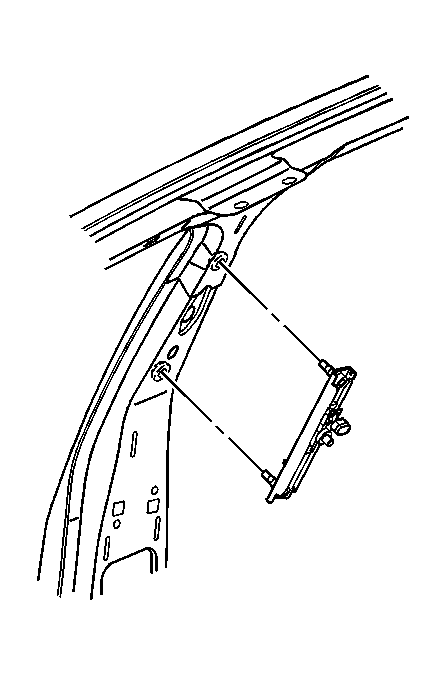

Fig 1: Installing Front Shoulder Belt Guide Belt Adjuster Bracket (Impala)

Courtesy of GENERAL MOTORS CORP.
