Outside Mirror Schematics
Outside Mirror Schematics

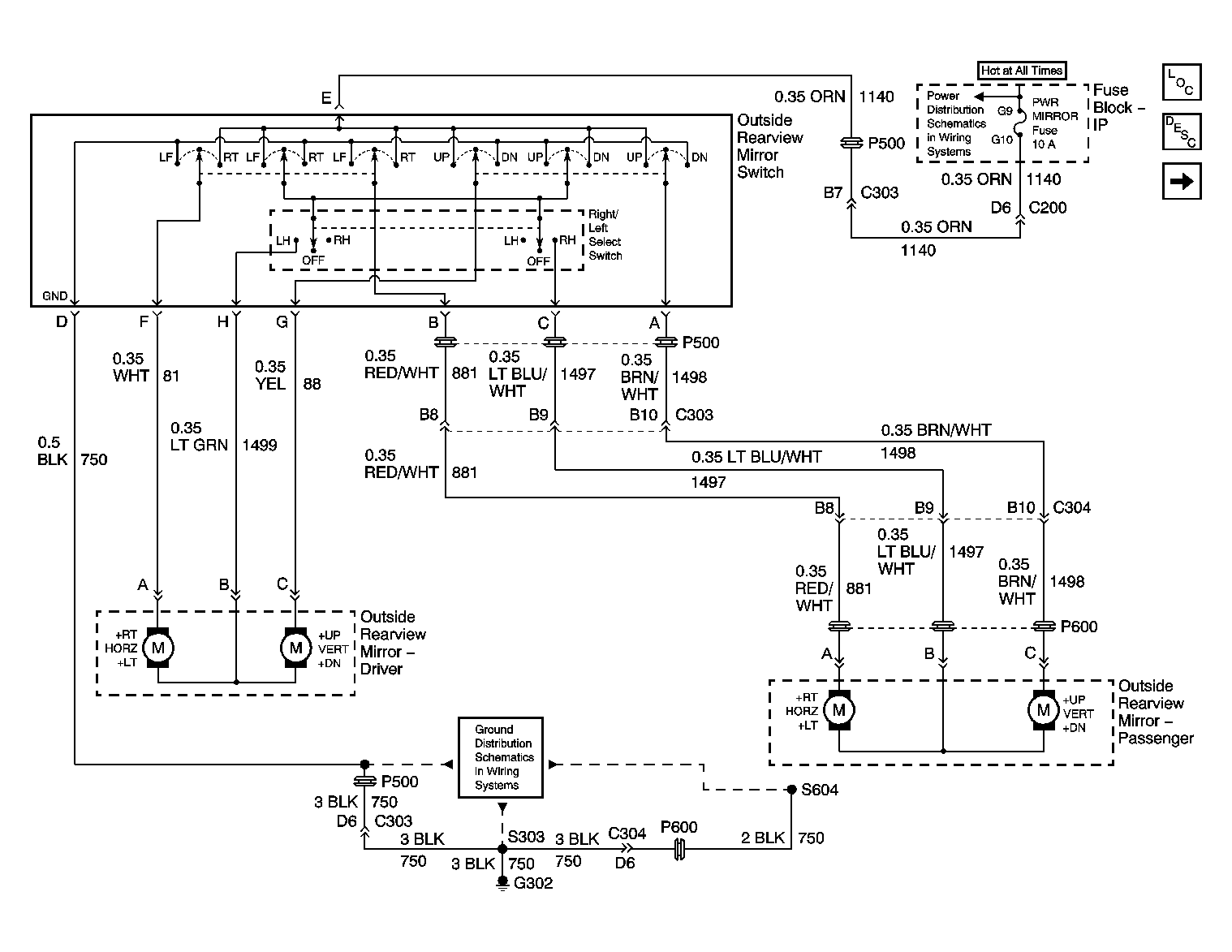

Fig 1: Identifying Power Mirrors
Courtesy of GENERAL MOTORS CORP.

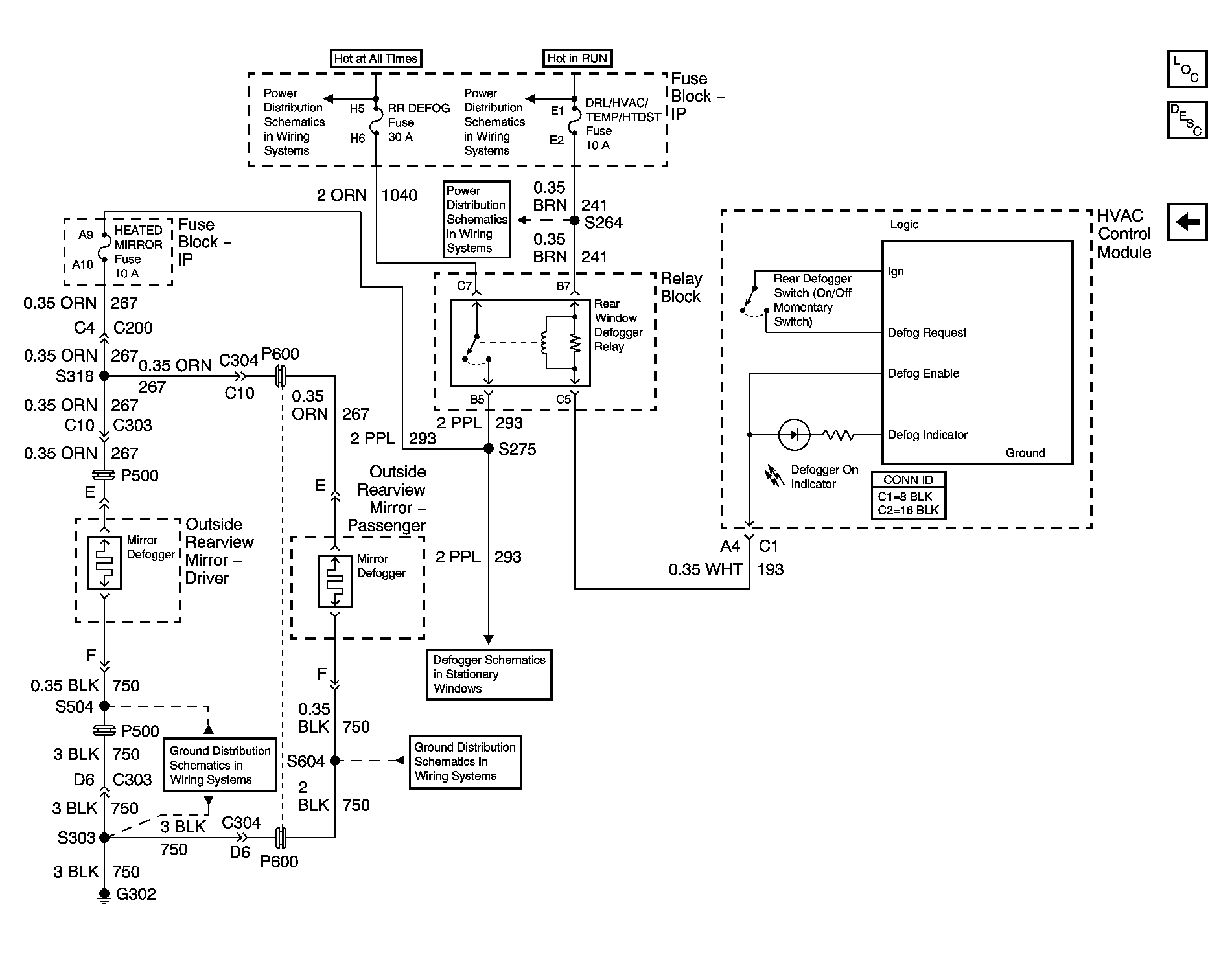

Fig 2: Identifying Heated Mirrors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
