Door Lock/Indicator Schematics

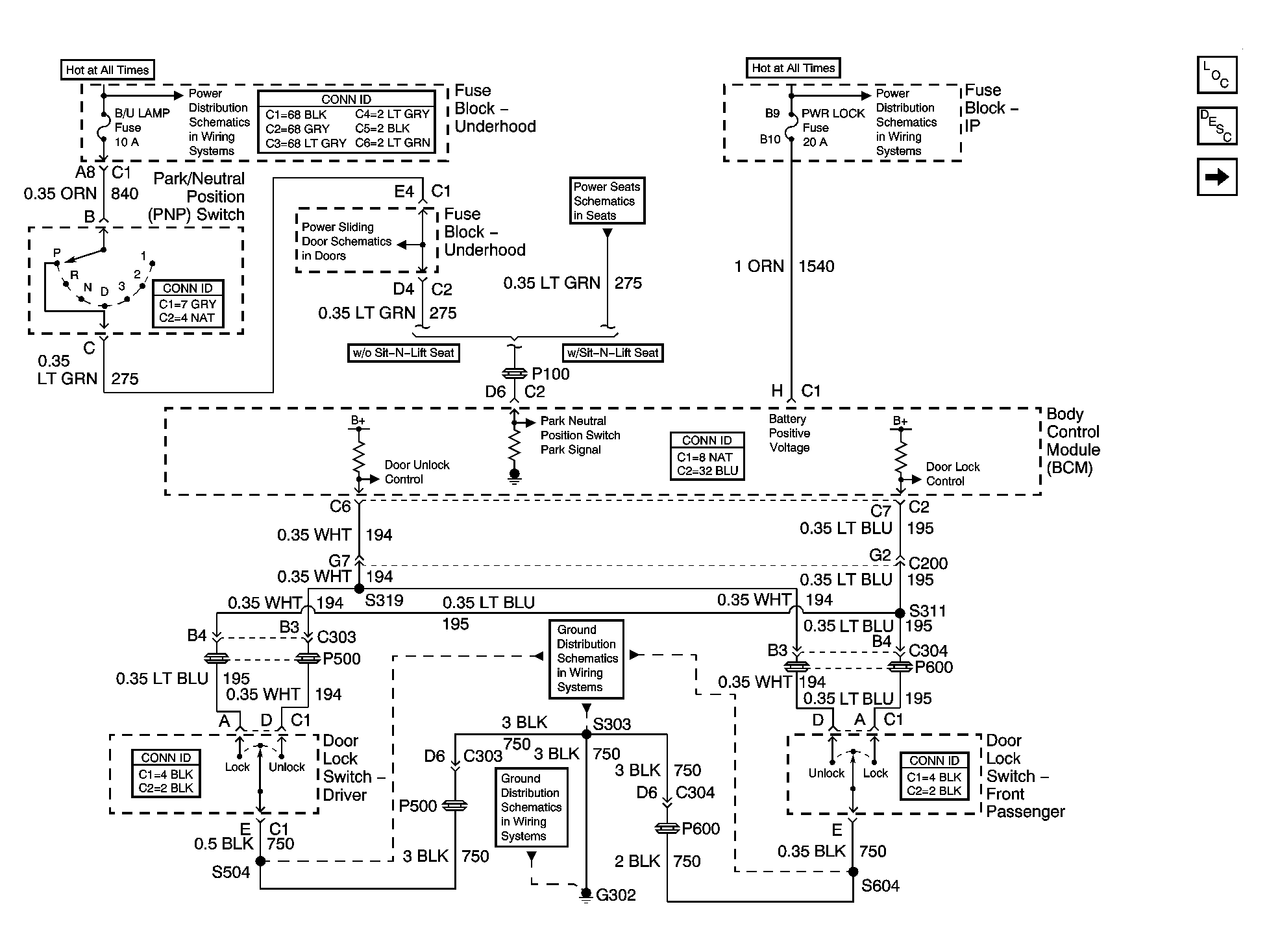

Fig 1: Door Lock Switches
GM857911Courtesy of GENERAL MOTORS CORP.

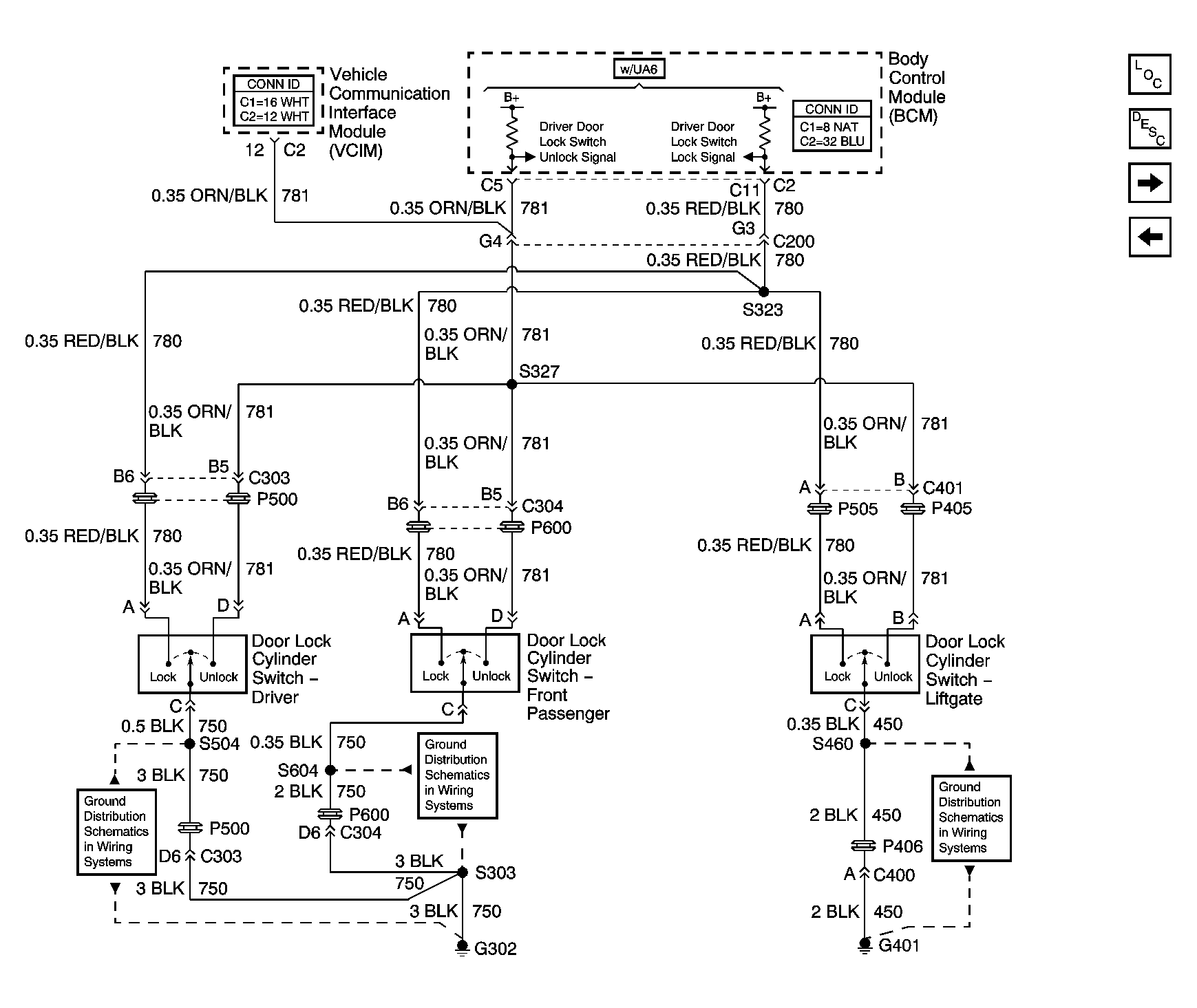

Fig 2: Identifying Key Cylinder Switches
GM696313Courtesy of GENERAL MOTORS CORP.

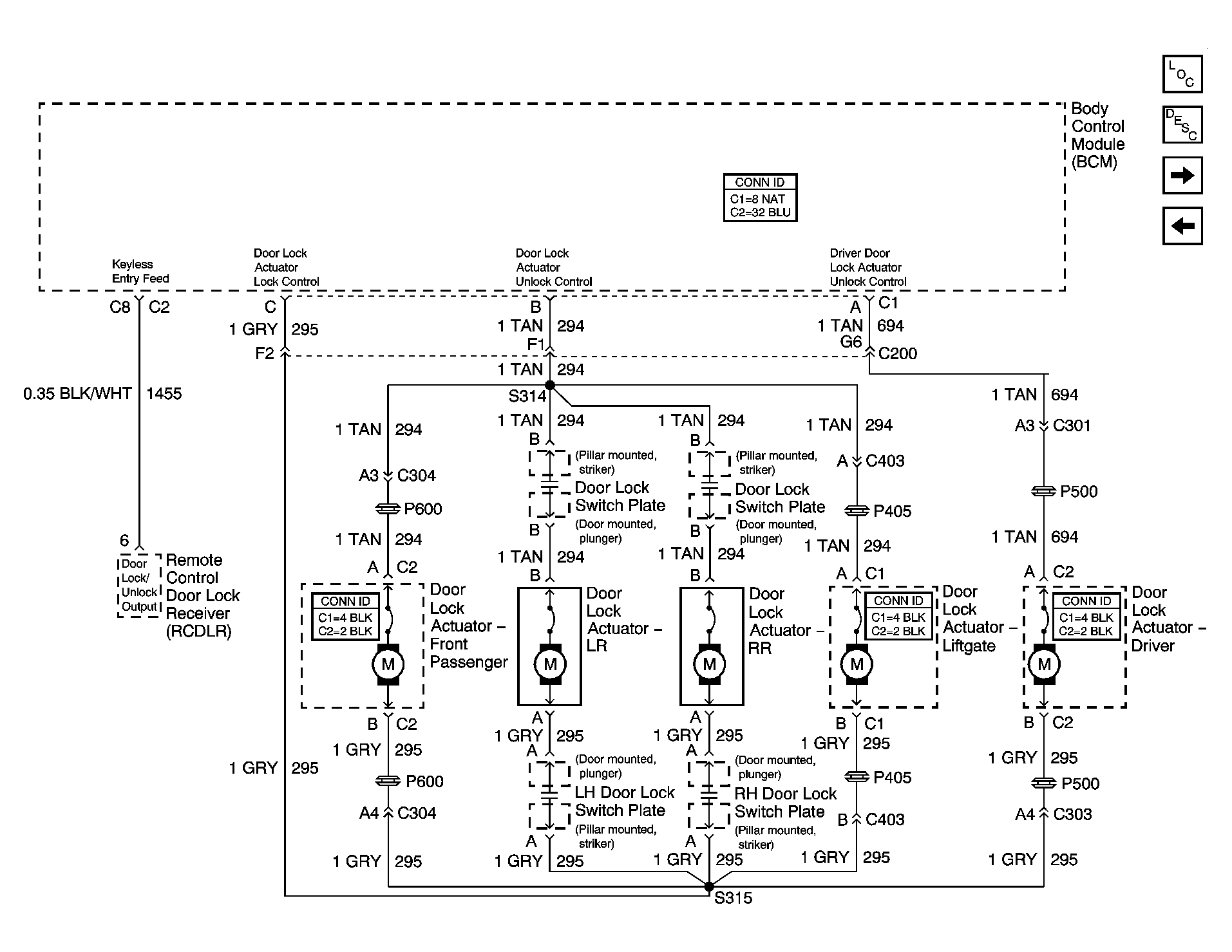

Fig 3: Identifying Door Lock Actuators
GM696314Courtesy of GENERAL MOTORS CORP.

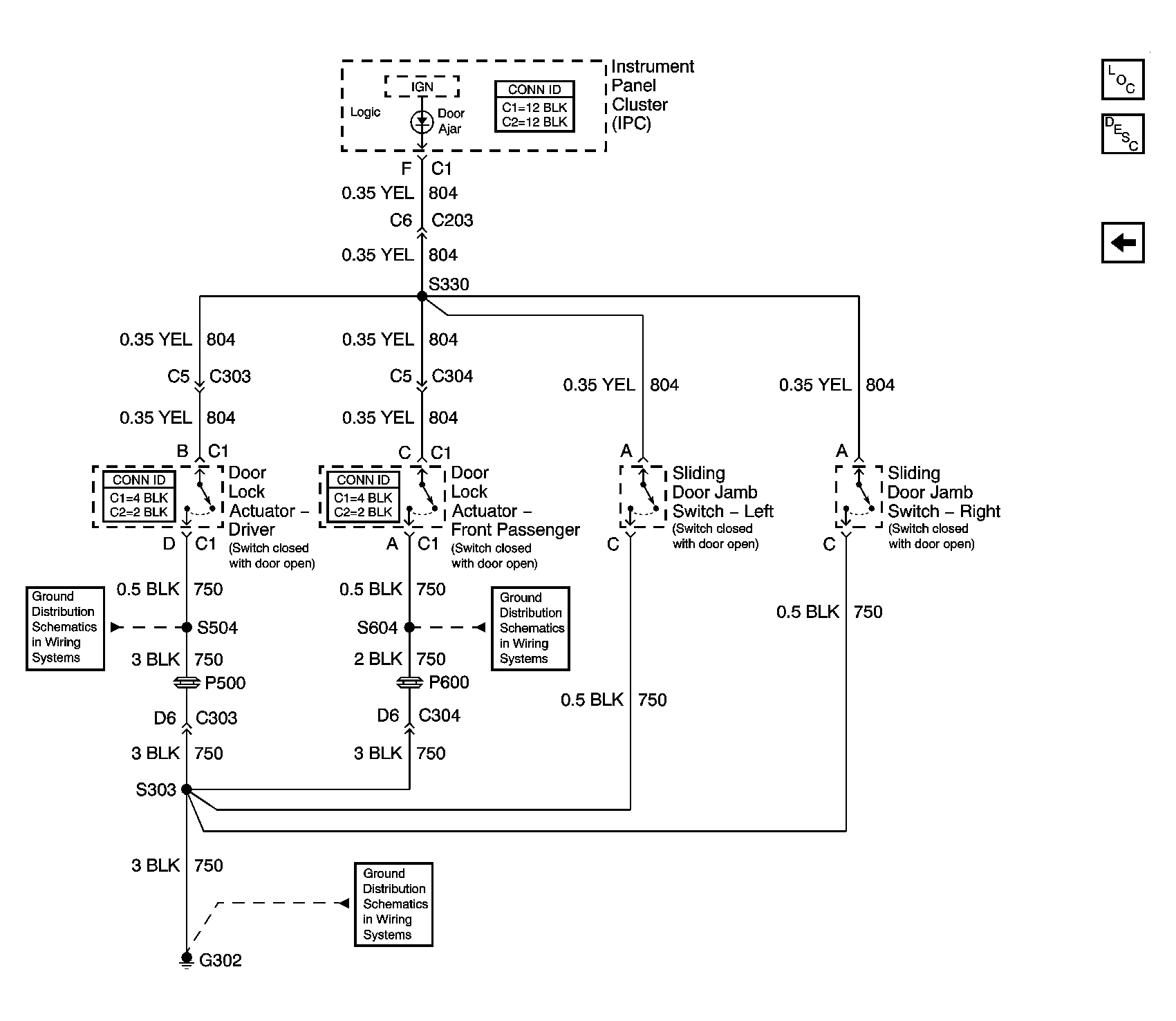

Fig 4: Identifying IPC DOOR AJAR Telltale
GM696317Courtesy of GENERAL MOTORS CORP.
